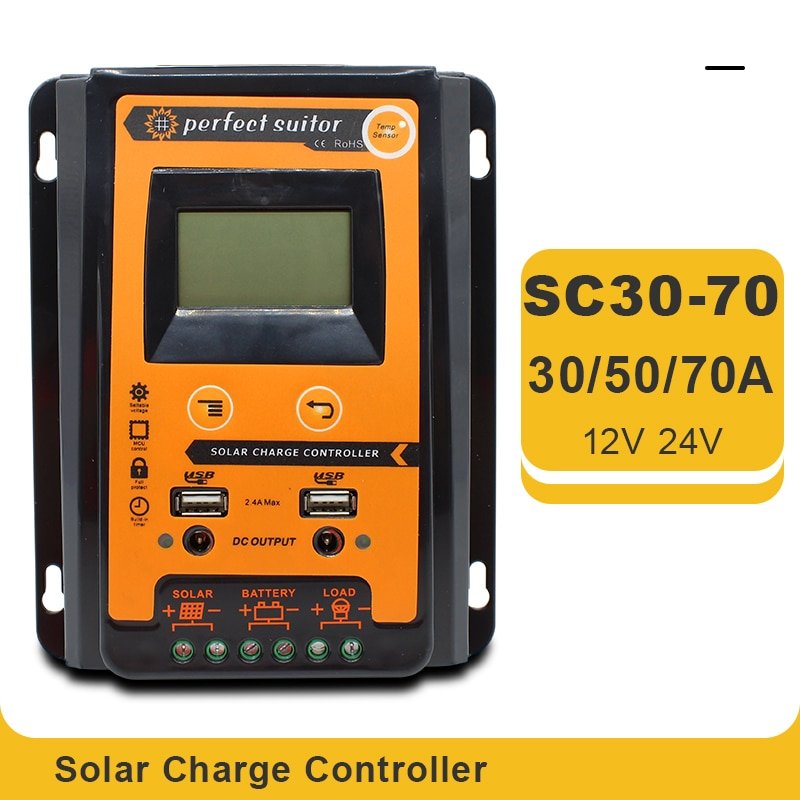

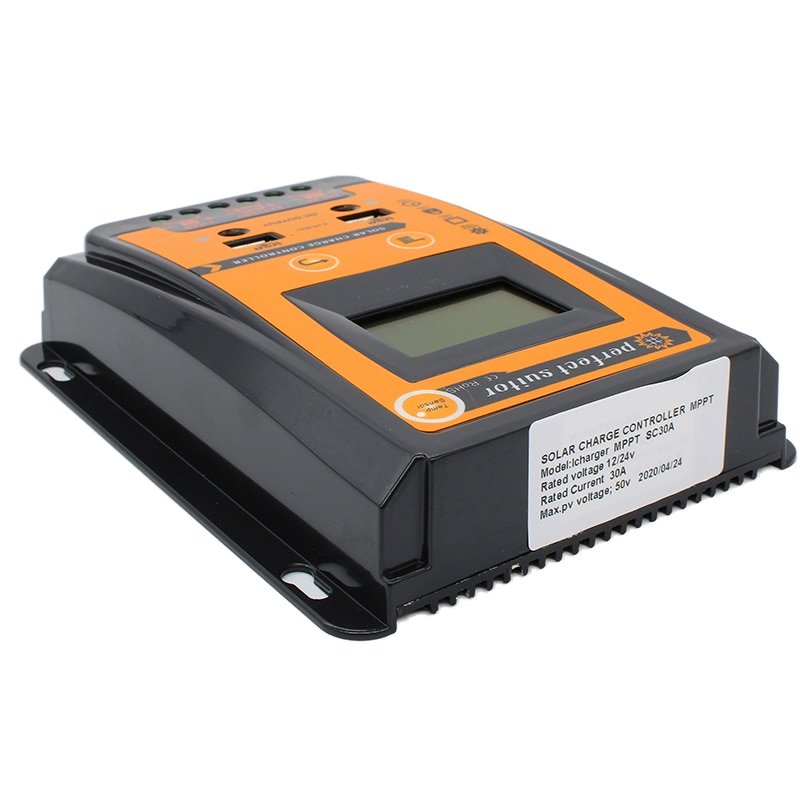

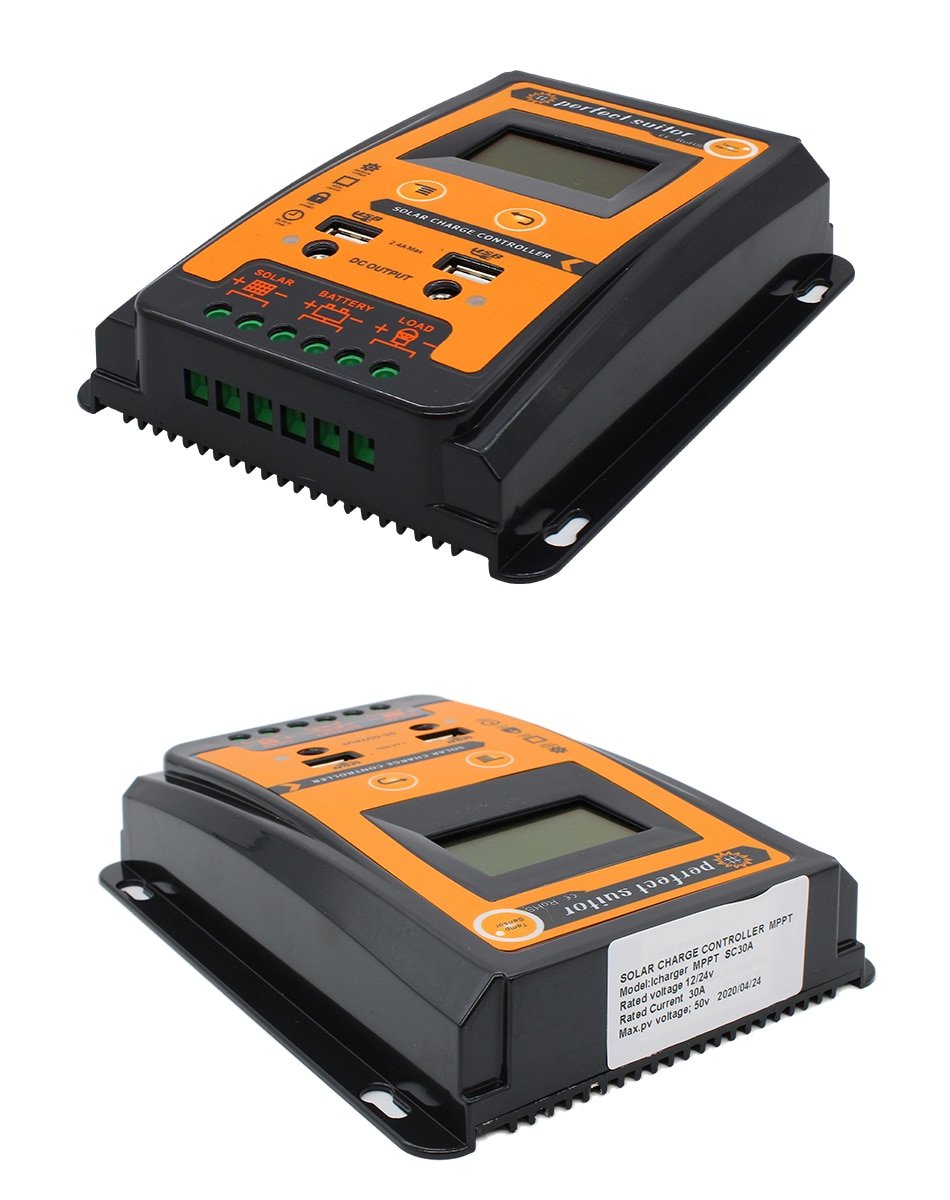

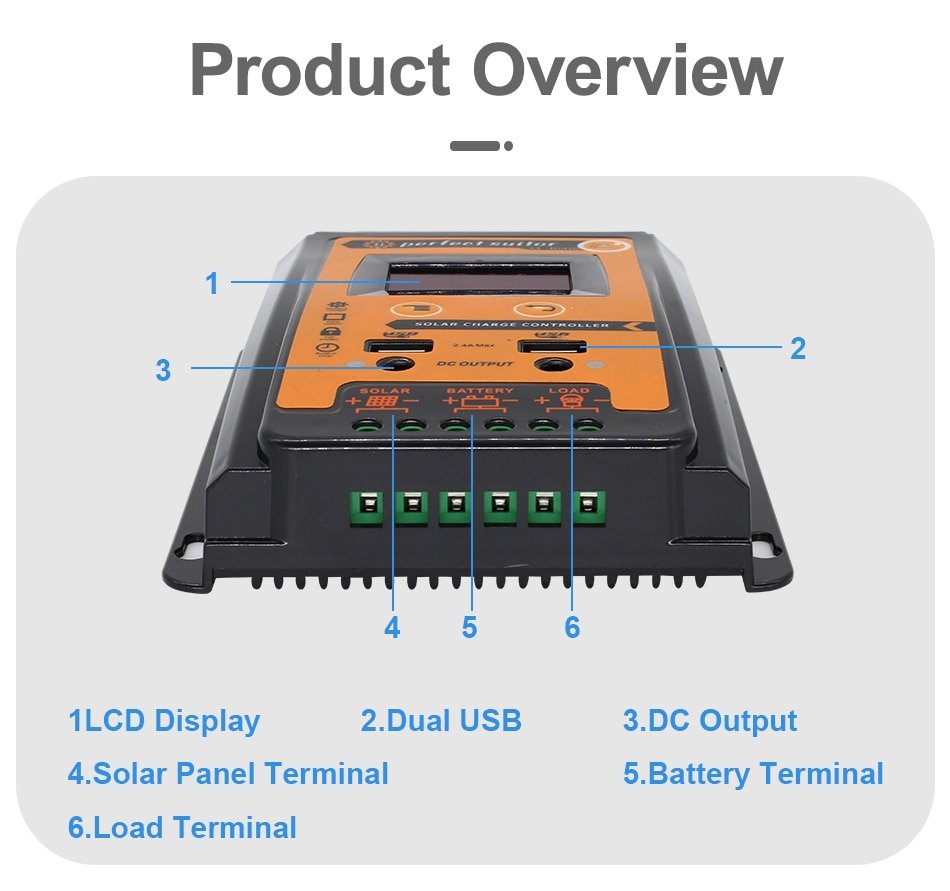

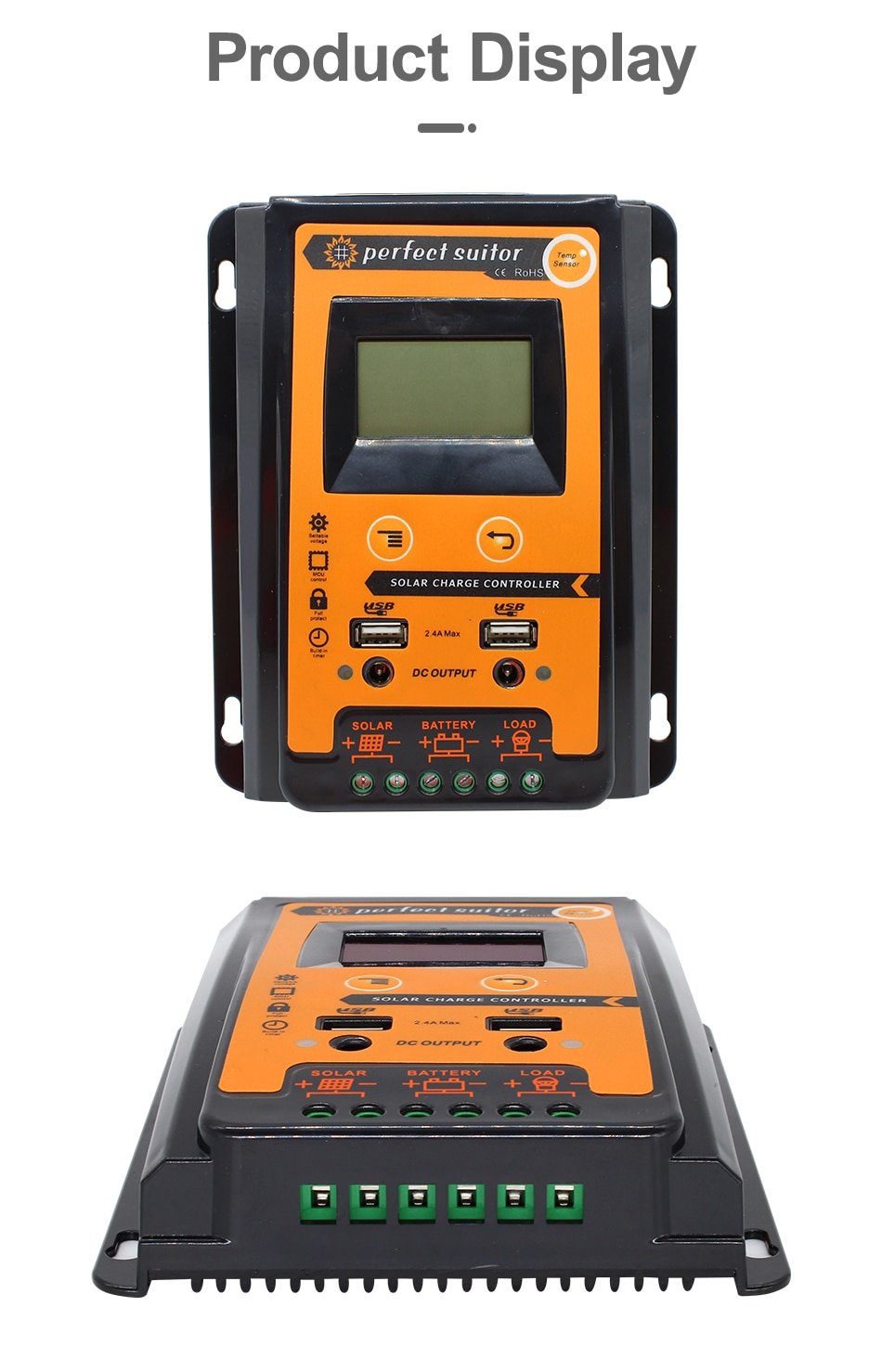

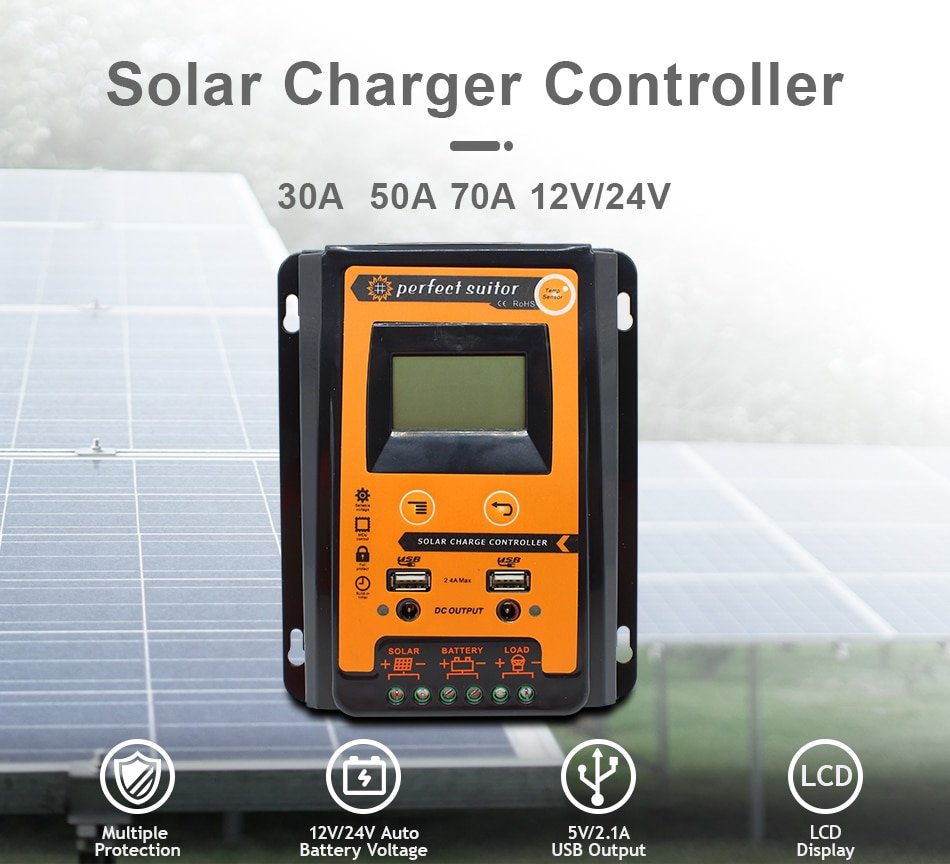

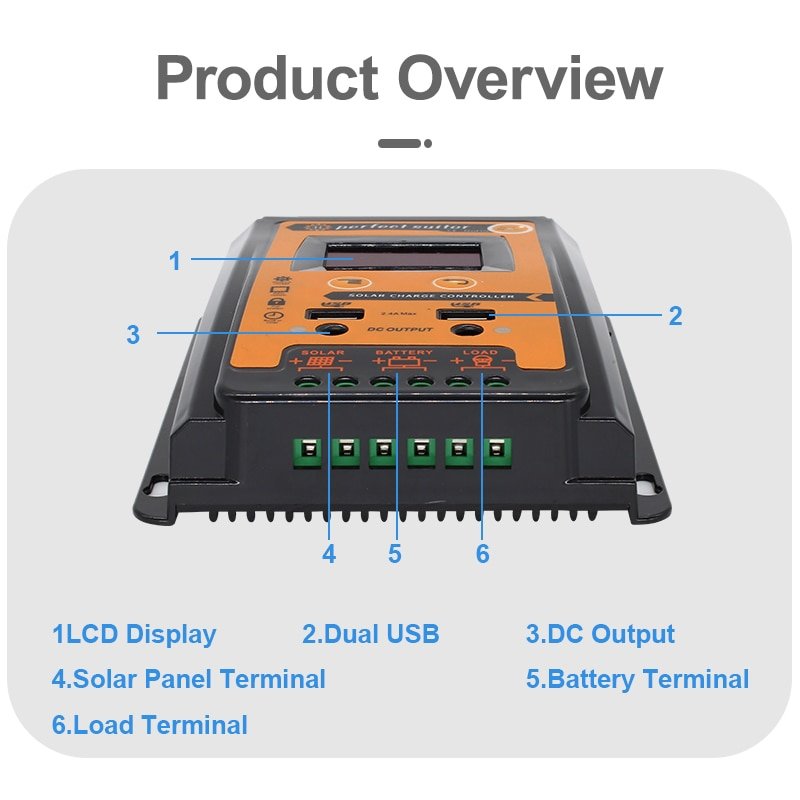

PWM Solar Charge Controller Dual USB with LCD

Description

PWM Solar Charge Controller Dual USB with LCD 30A, 50A, 70A | 12V / 24V Dual USB | IP32 PV

Features:

• Automatic identification system voltage, 12/24V auto recognition.

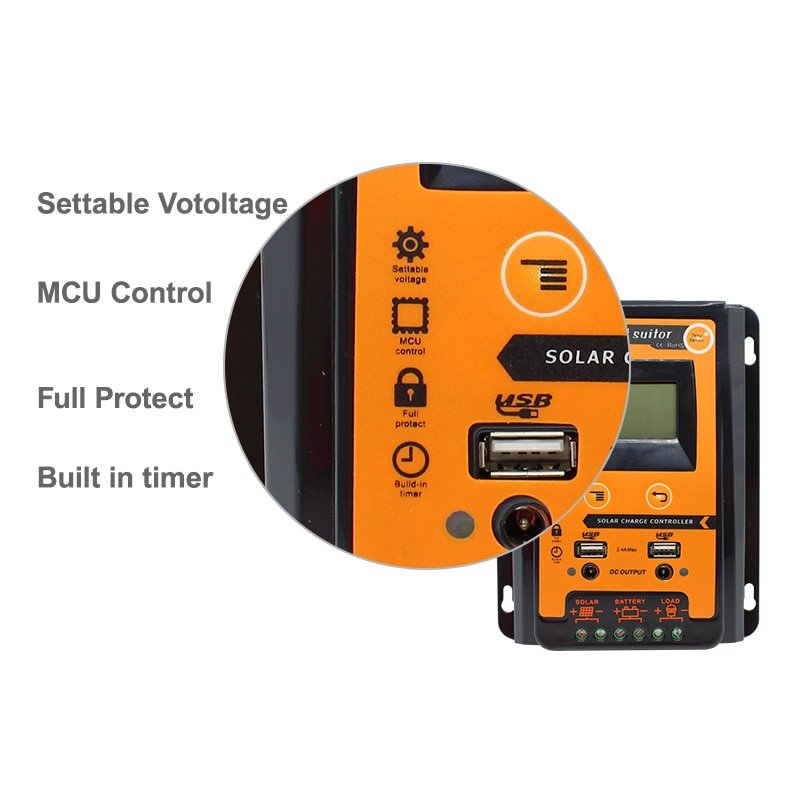

• Humanized LCD displaying and double button operation of man-machine interface.
• Completed technical data for setup and modify.
• High efficiency intelligent 3-stage charging mode.
• The load control mode can be selected, the timer function can be reset for street light at night.
• Discharge capacity control.
• Discharge counter of ampere hour.
• Working storage function: record the total run time of system, record timers of error during running time, record times of full charged battery.
• Reliable over voltage protection, short circuit protection, over load protection, overcharge protection, over-discharge protection.
• Accurate temperature compensation, correcting the charging and discharging voltage automatically, improving the battery lifetime.
• Roundly reverse connected protection.

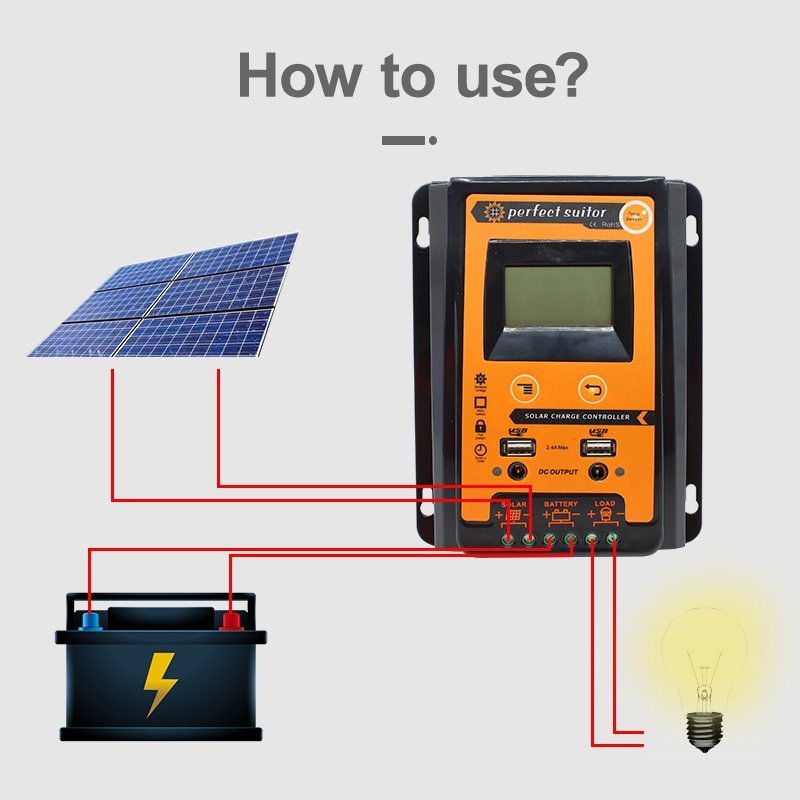

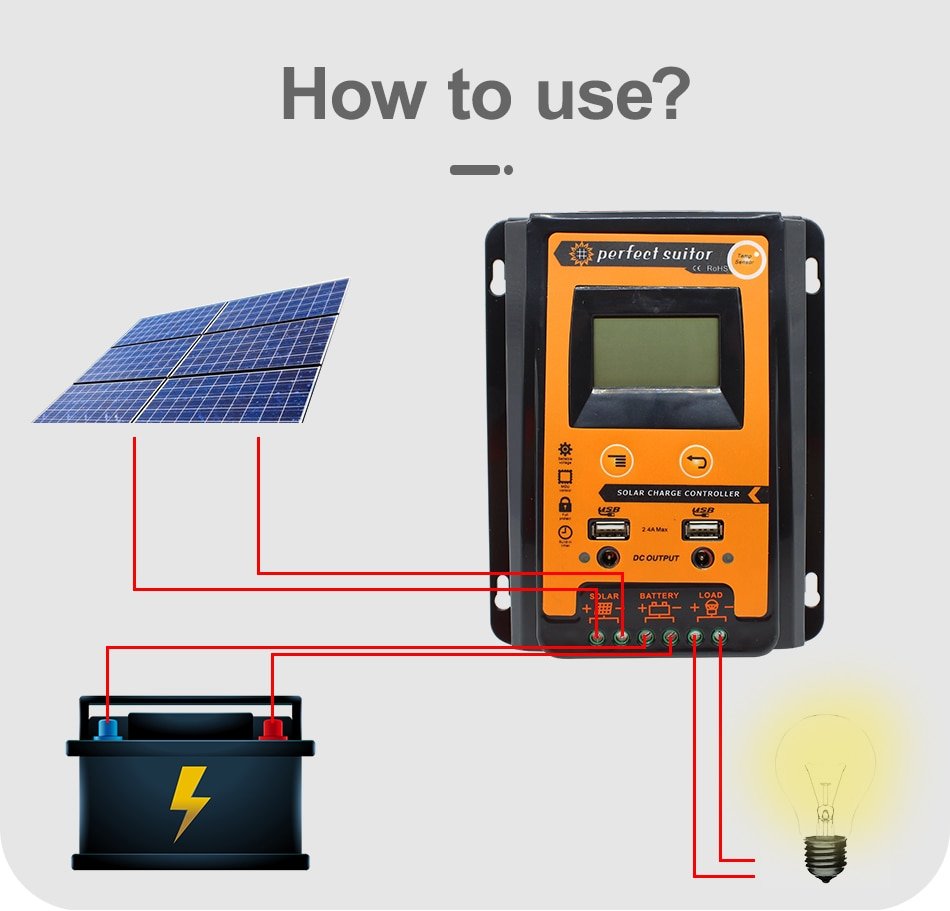

• Solar panels, battery, solar charge controller positive poles are all connected together, adopting negative MOSFET in series control circuit.

Product Parameters:

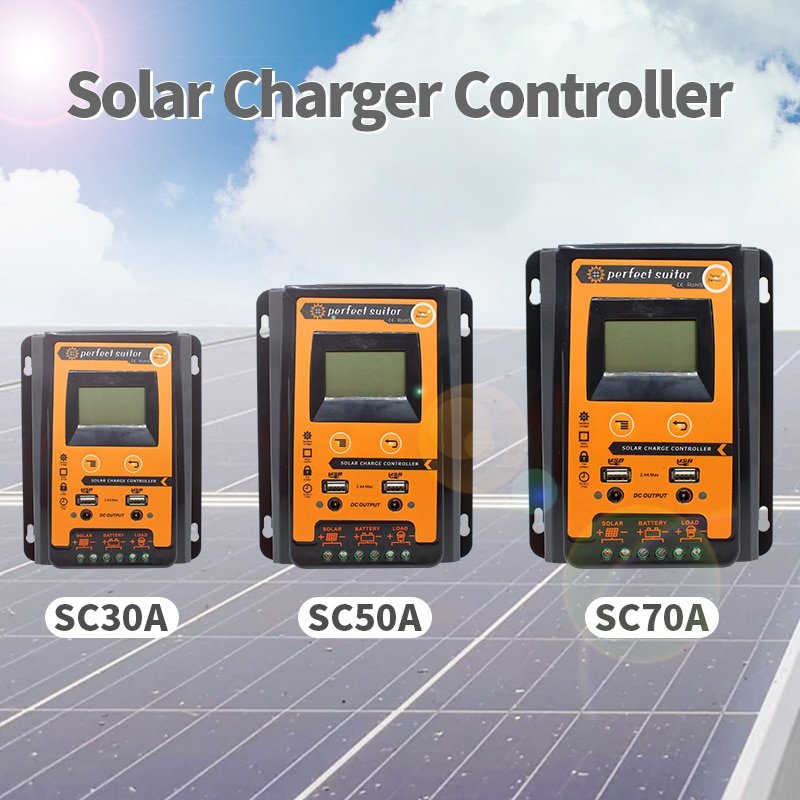

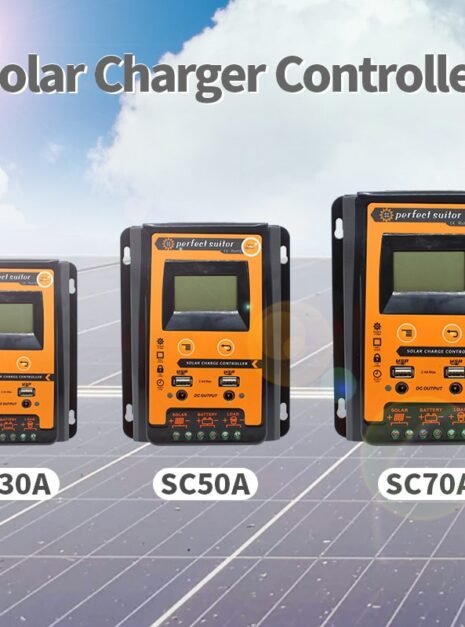

• Current: 30A, 50A, 70A
• Rated Voltage: 12/24V
• USB Output: 2.4A x2
• Over Charge Current(V): 13.7V/x2 24V
• Over Discharge Current(V): 10.5-11V/*2 24V
• Temperature Compensation: -3mv/°/cell
• Empty Load Wastage: <45mA
• Loop Voltage Drop: <200mv
• Display: LCD Display
• Charging Type: PWM
• Waterproof Grade: IP32
• Material: Plastic
• Color: Black + Orange

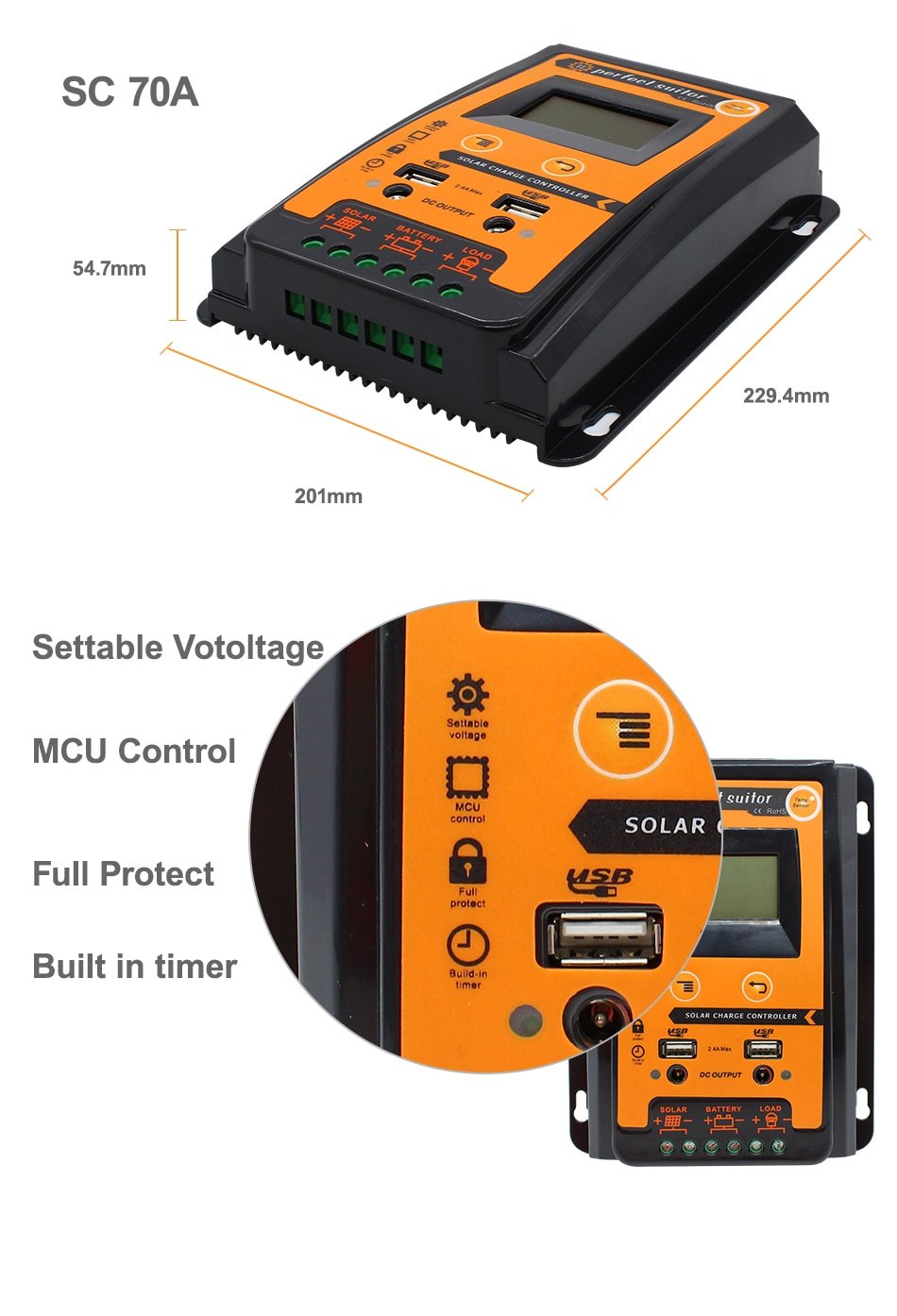

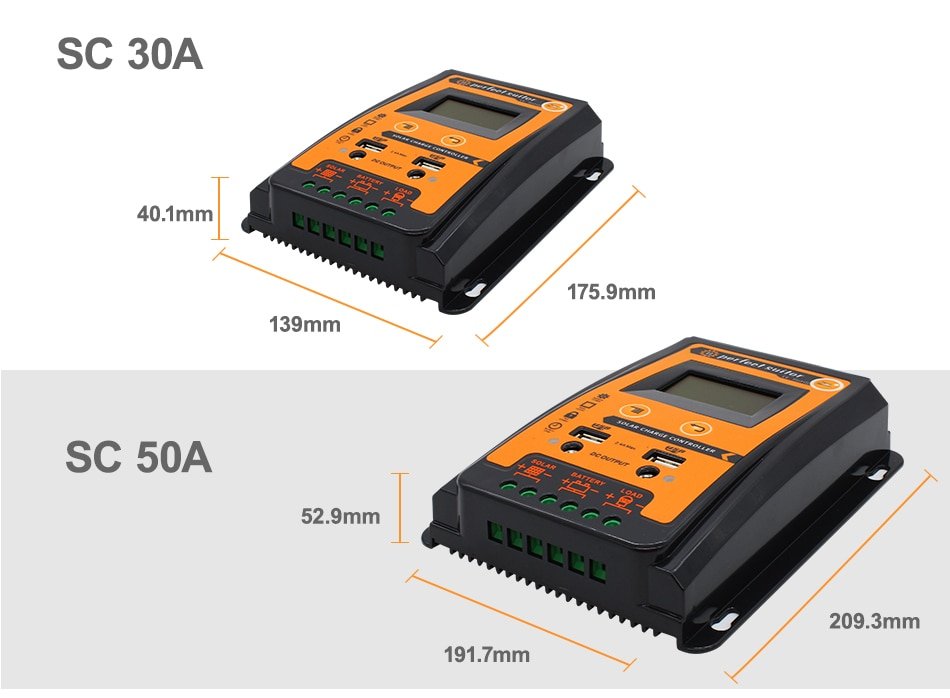

• Size: 17.5 x14 x 4cm/6.9 x 5.5 x 1.6in(30A), 21 x 19.2 x 5.5cm/8.3 x 7.6 x 2.2in(50A), 22.8 x 20 x 5.5cm/9 x 7.9 x 2.2in(70A)
• Package Weight: 480g-1284g

Package List:

• 1x Solar Charge Controller1x User Manual
