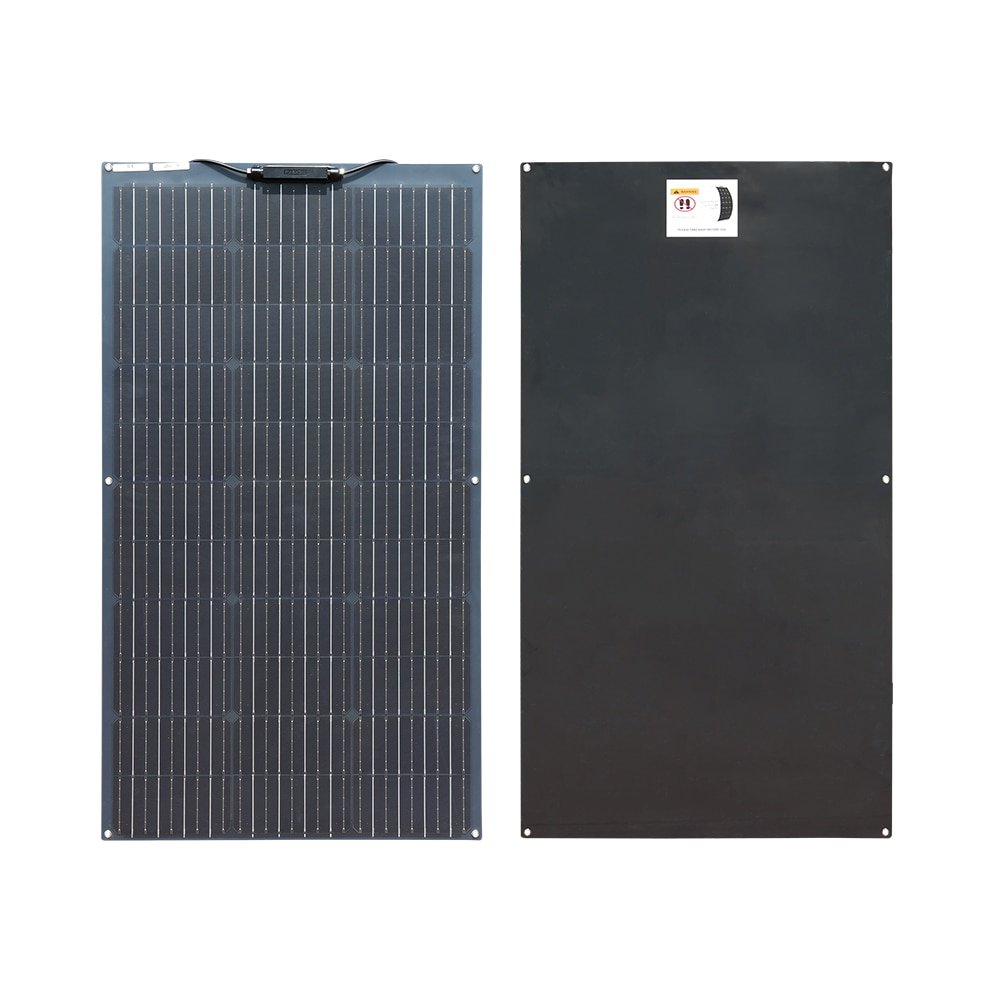

1000W Flexible Mono Photovoltaic Solar Panel Kit

Description

1000W Flexible Mono Photovoltaic Solar Panel Kit – 10x 100W 18V High Efficiency Solar Panels

Features:

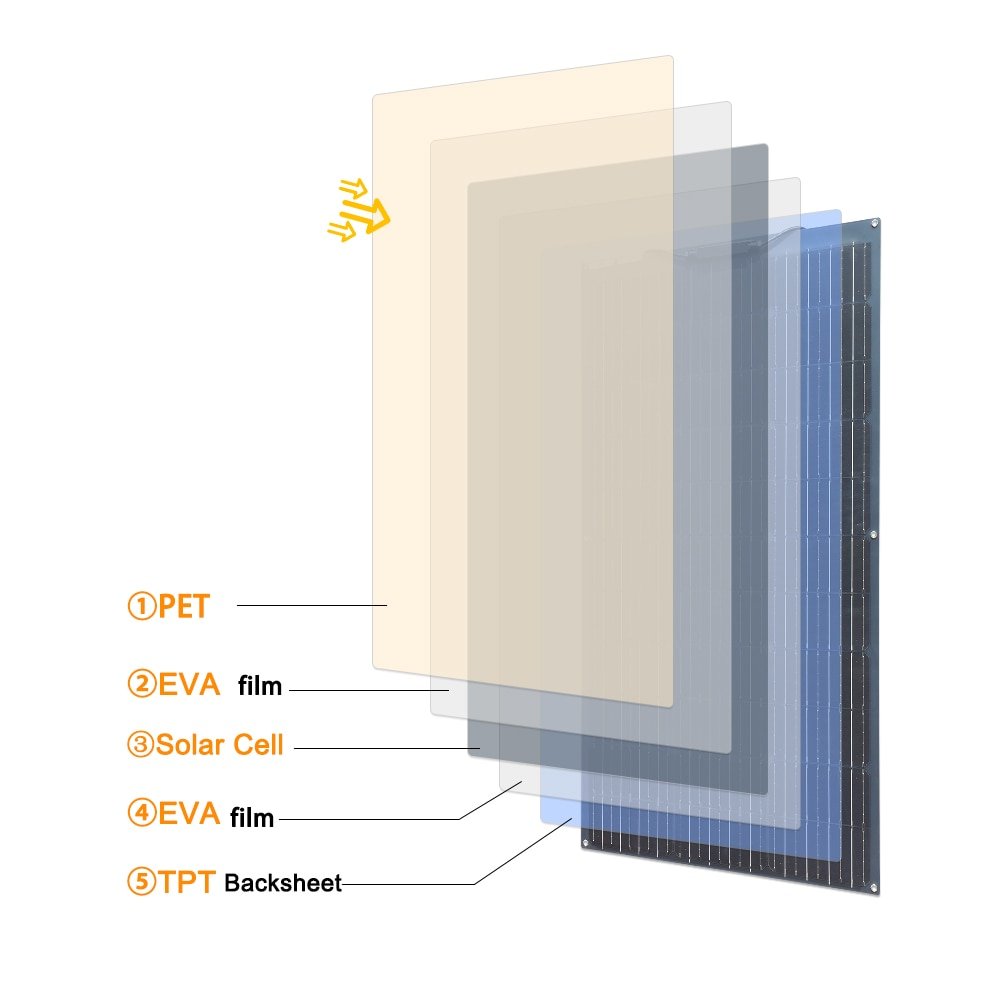

1. Excellent performance: Using high-quality monocrystalline silicon cells, high-efficiency monocrystalline silicon solar cells provide good performance even in low light conditions

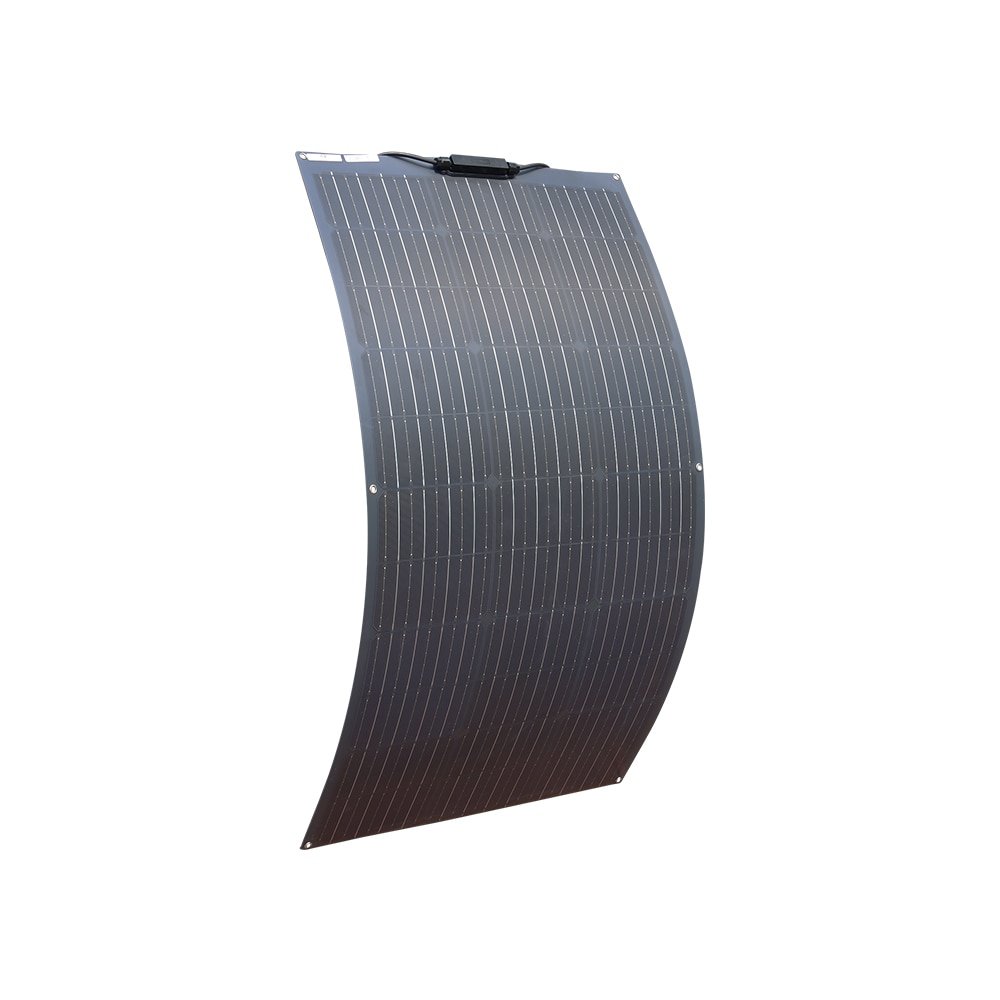

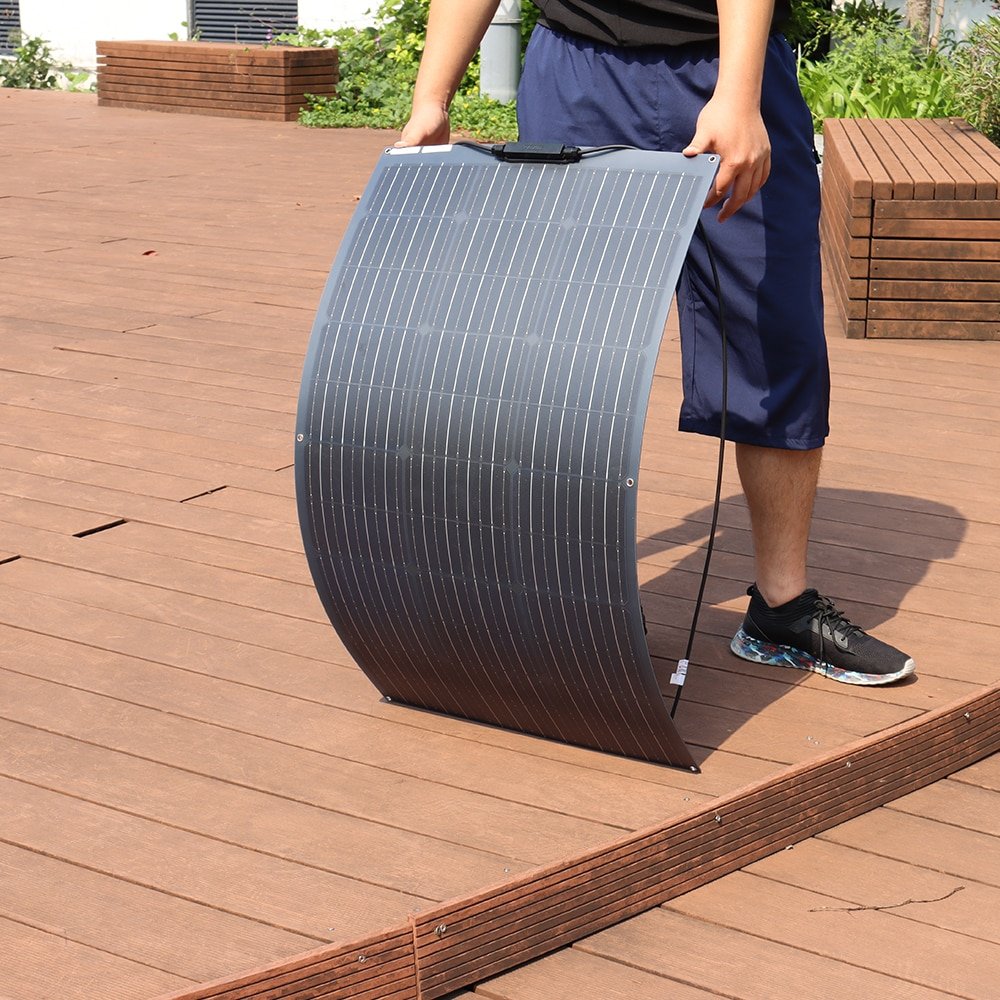

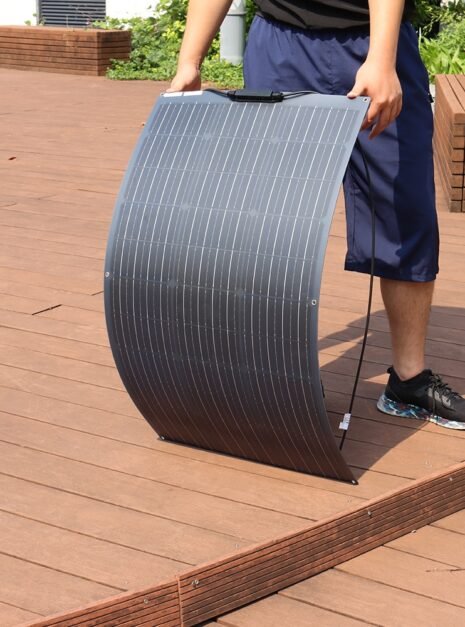

2. Flexible: This flexible solar panel is a good choice for curved surfaces of RV, boat,sailboat, yacht,truck, car, coach, cabin, camper , tent , trailer, golf cart or any other irregular surface.
3. Practical: Light energy converts electrical energy and has strong practicability. It is a good supplement for power shortages and places where the city power cannot reach, such as mountains, marine, deserts, etc.

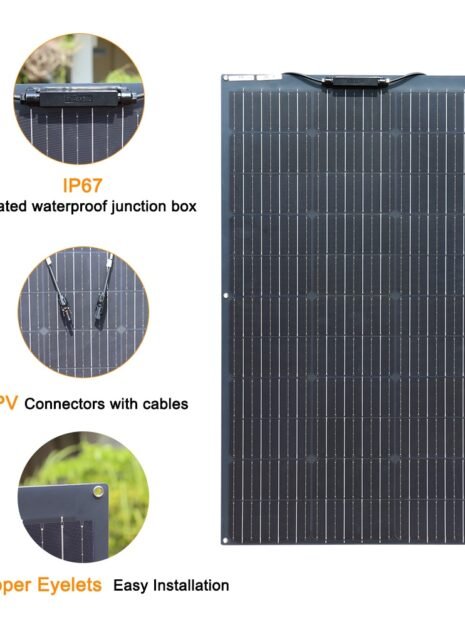

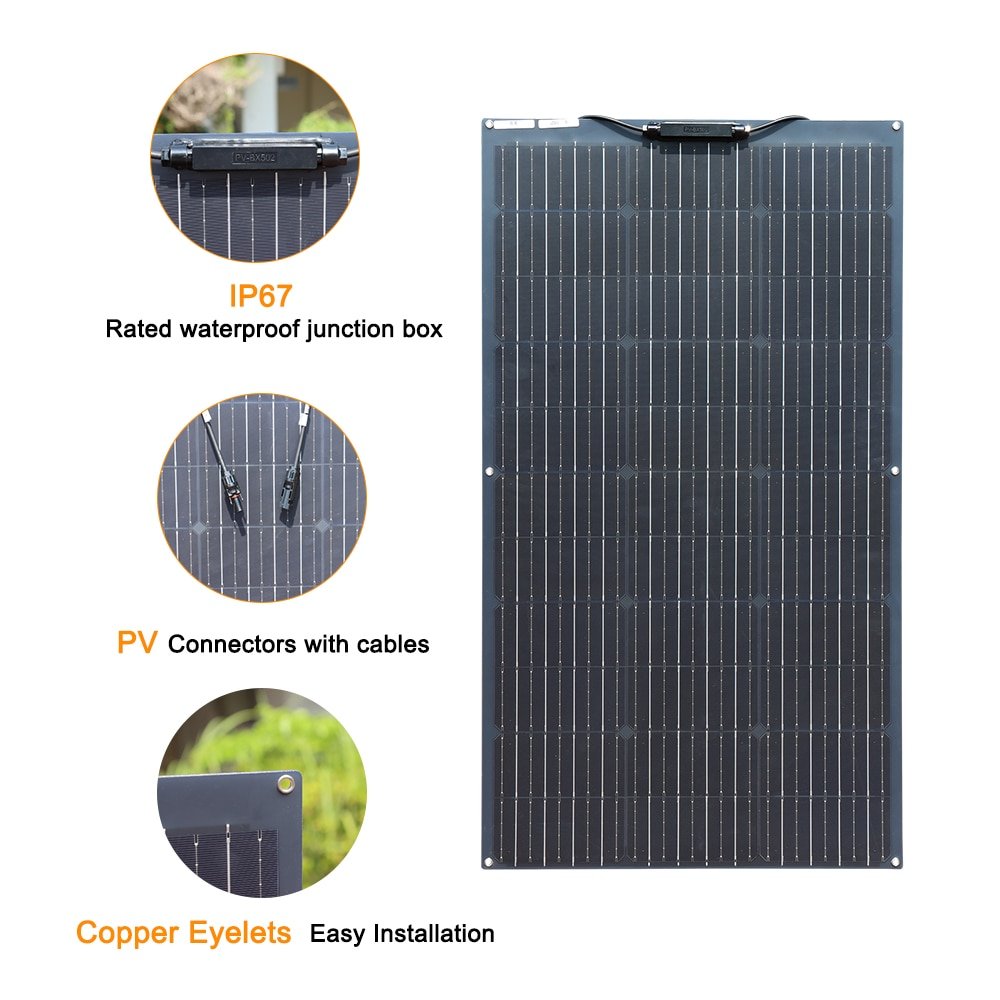

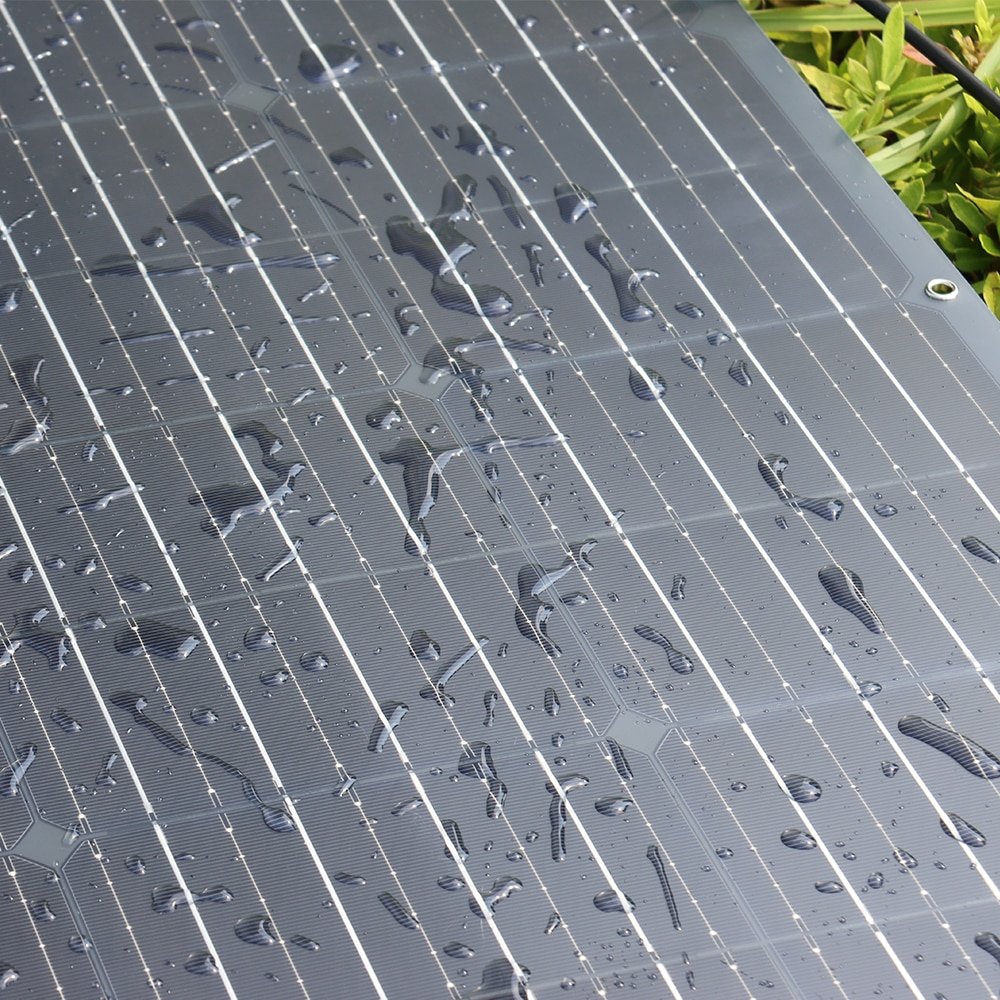

4. The water resistant flexible solar panel is far more durable than traditional glass and aluminum models; The junction box is sealed and waterproof.
5. Easy Installation: The solar panel has 6 grommet mounting holes are available to attach fasteners，and can also be installed with silicone and adhesive tape. 12-month guarantee service.

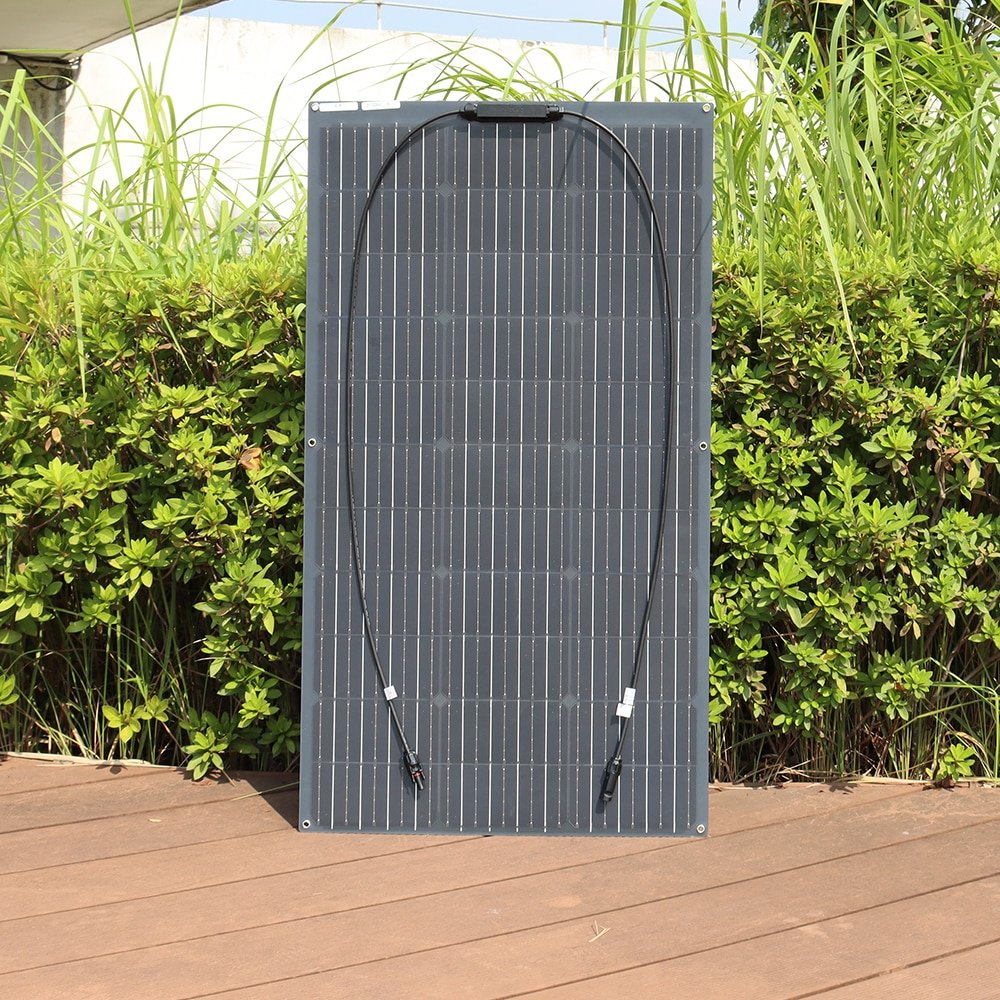

Flexible Solar Panel Specification:

• Maximum power (Pmax): 100W
• Maximum system voltage: 700V DC
• Open circuit voltage (Voc): 21.6V
• Short circuit current (Isc): 6A
• Maximum power voltage (Vmp): 18V
• Maximum power current (Imp): 5.5A
• Weight :1.7kg

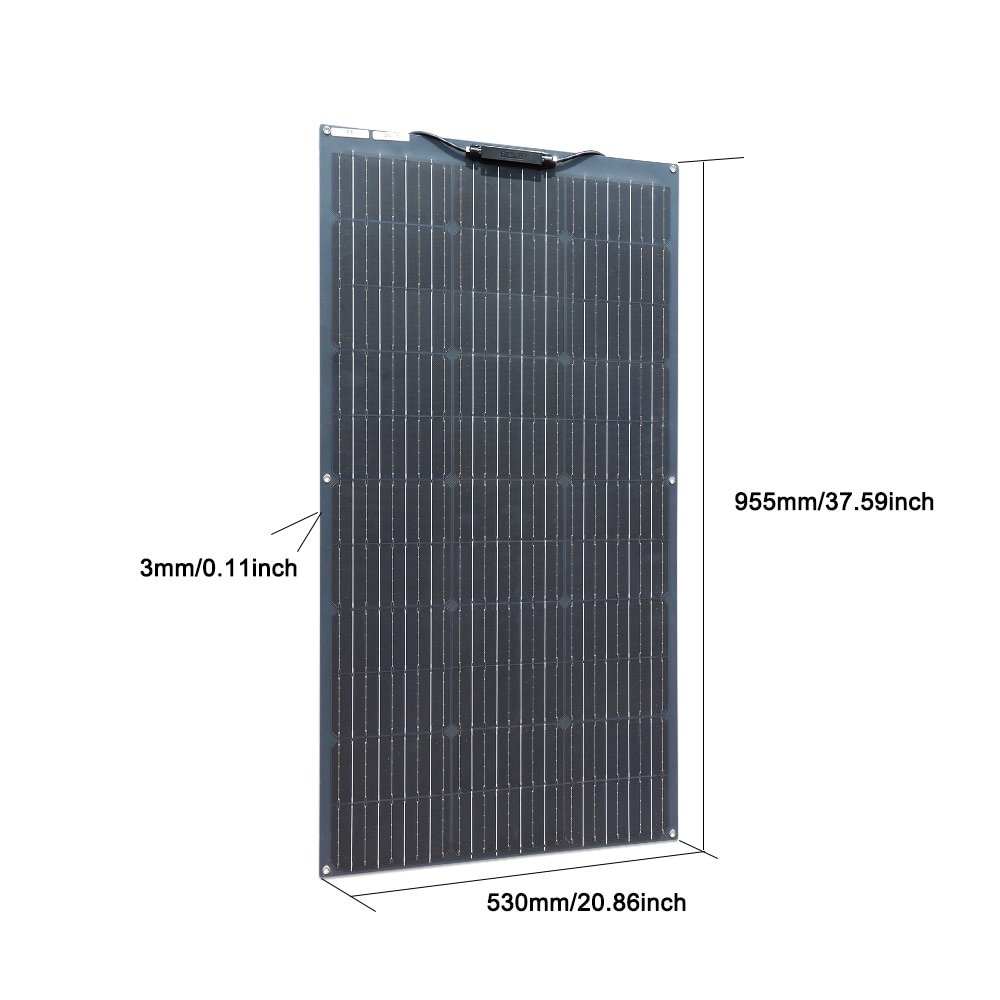

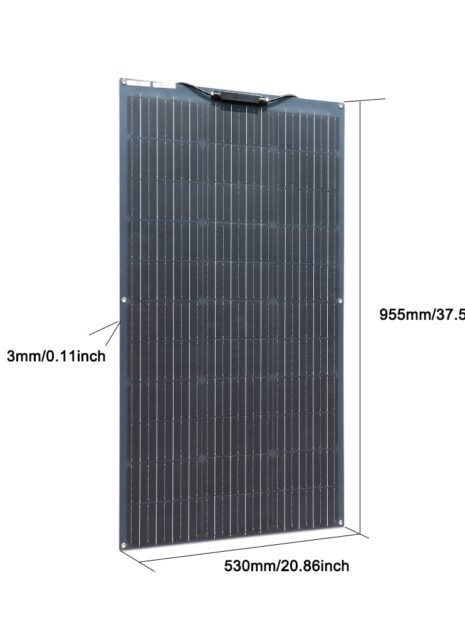

• Size: 37.6×20.87×0.1 inch
• Operating temperature (NOCT): 45 plus or minus 2 Celsius system

Packing List by Options:

1. 1000W Flexible Solar Panel

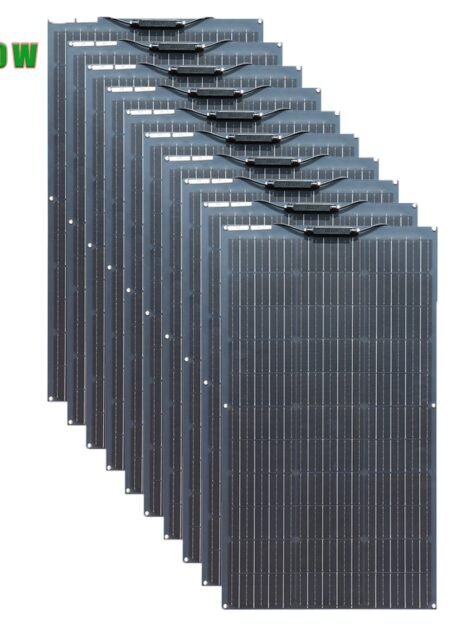

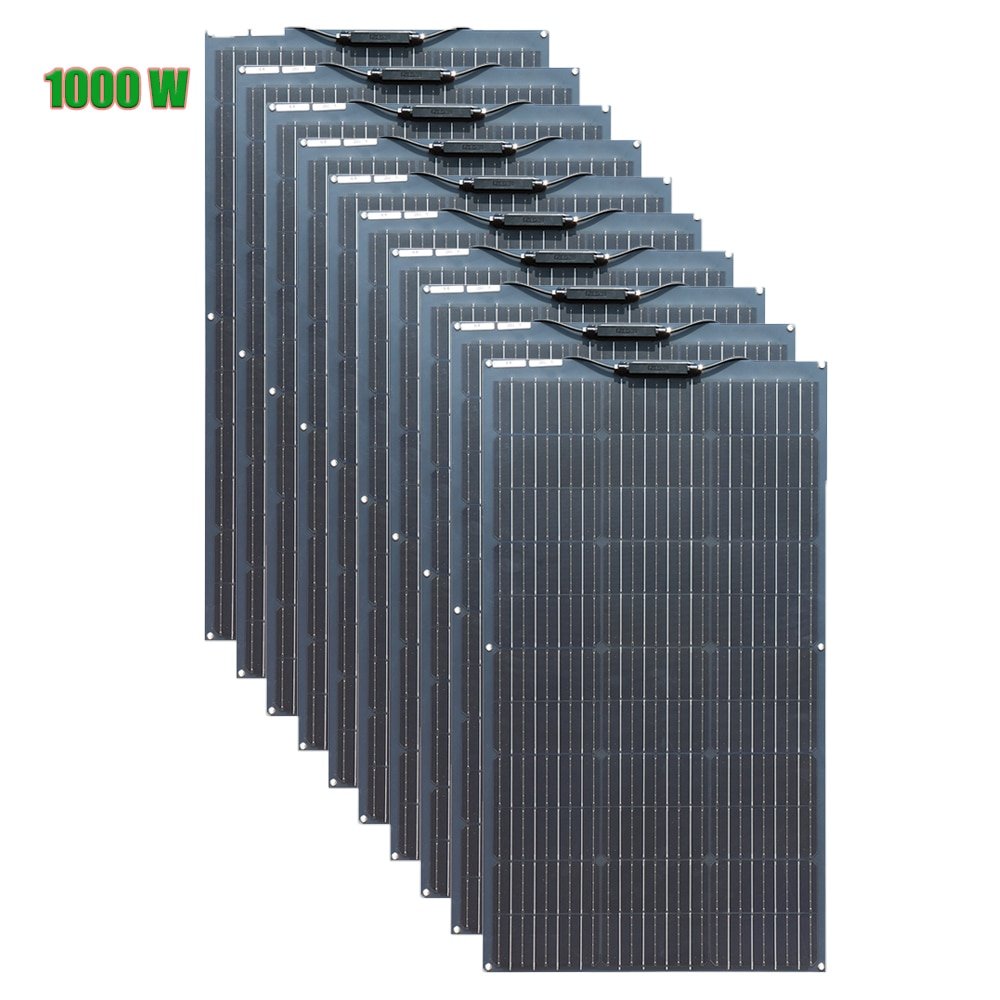

• 10x 100W 18V Flexible Solar Panel

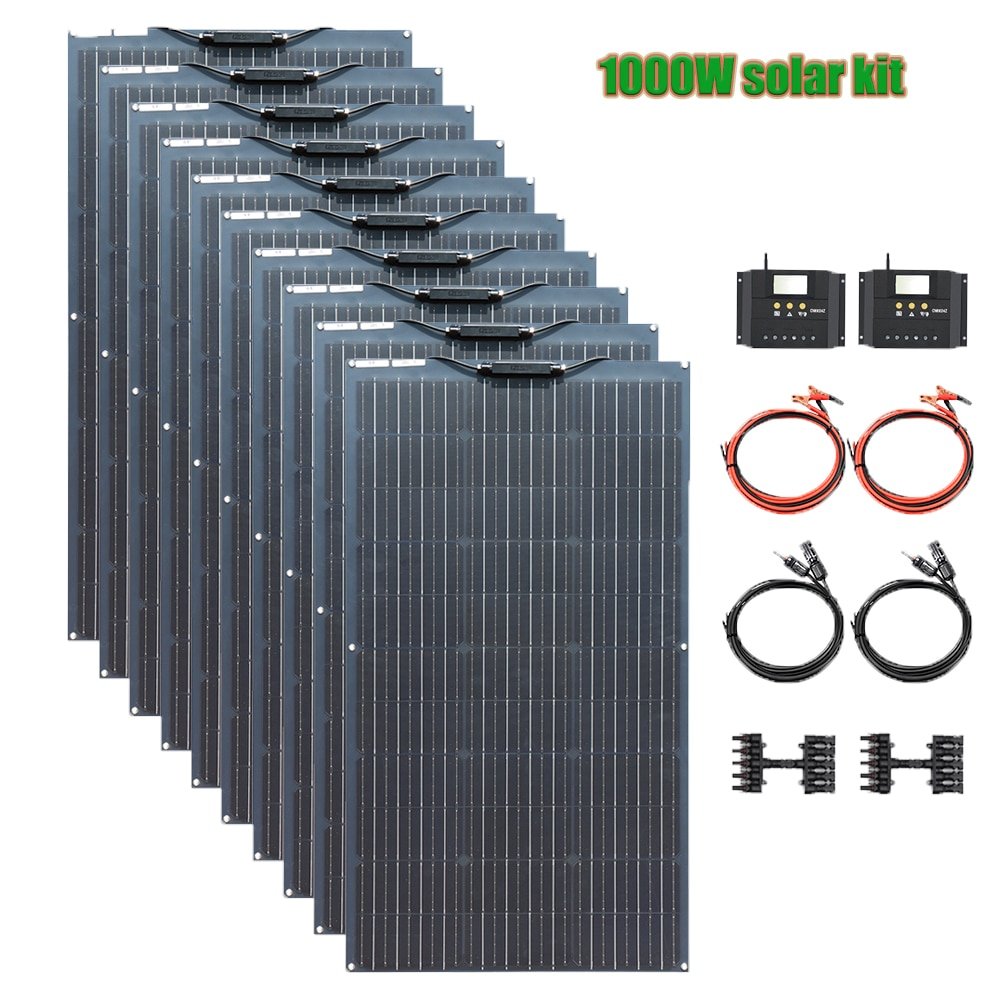

2. 1000W Flexible Solar Panel Kit

• 10x 100W 18V Flexible Solar Panel
• 2 sets 3m Cable with PV Connector
• 1 set 3m Cable with Alligator clip

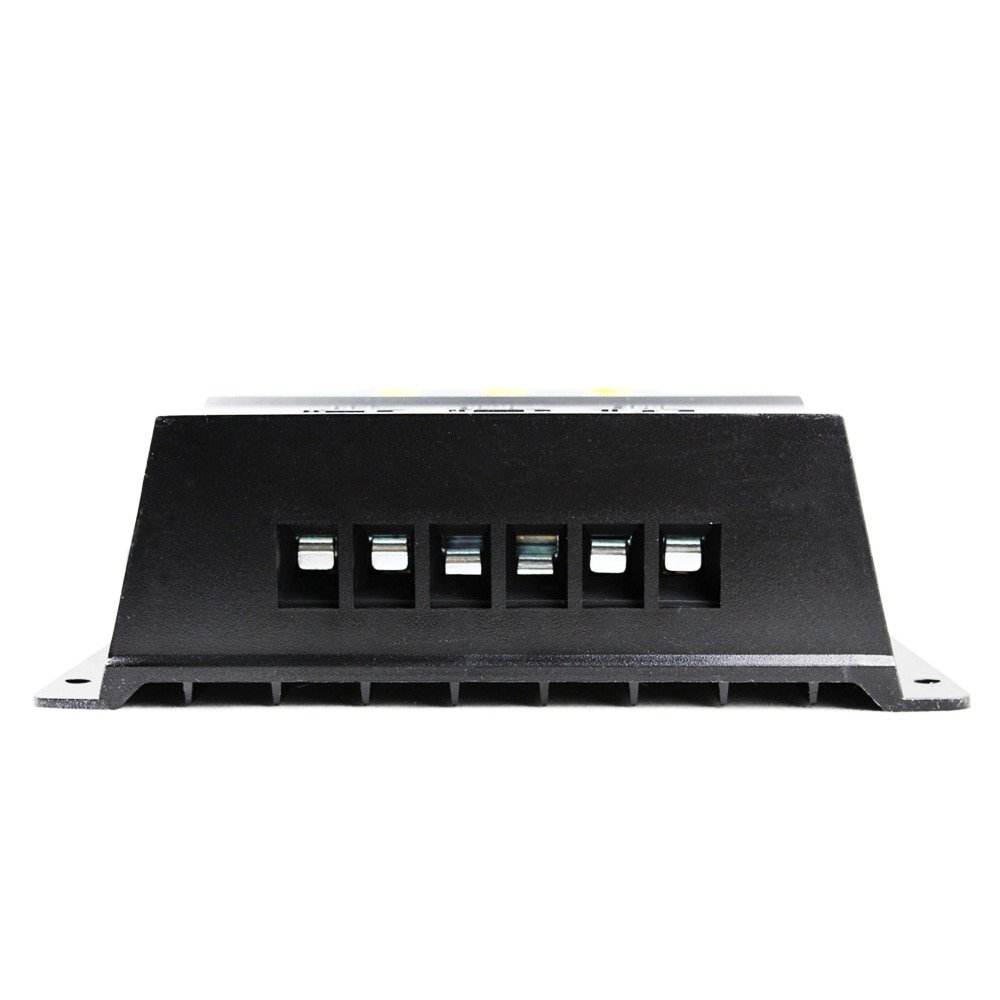

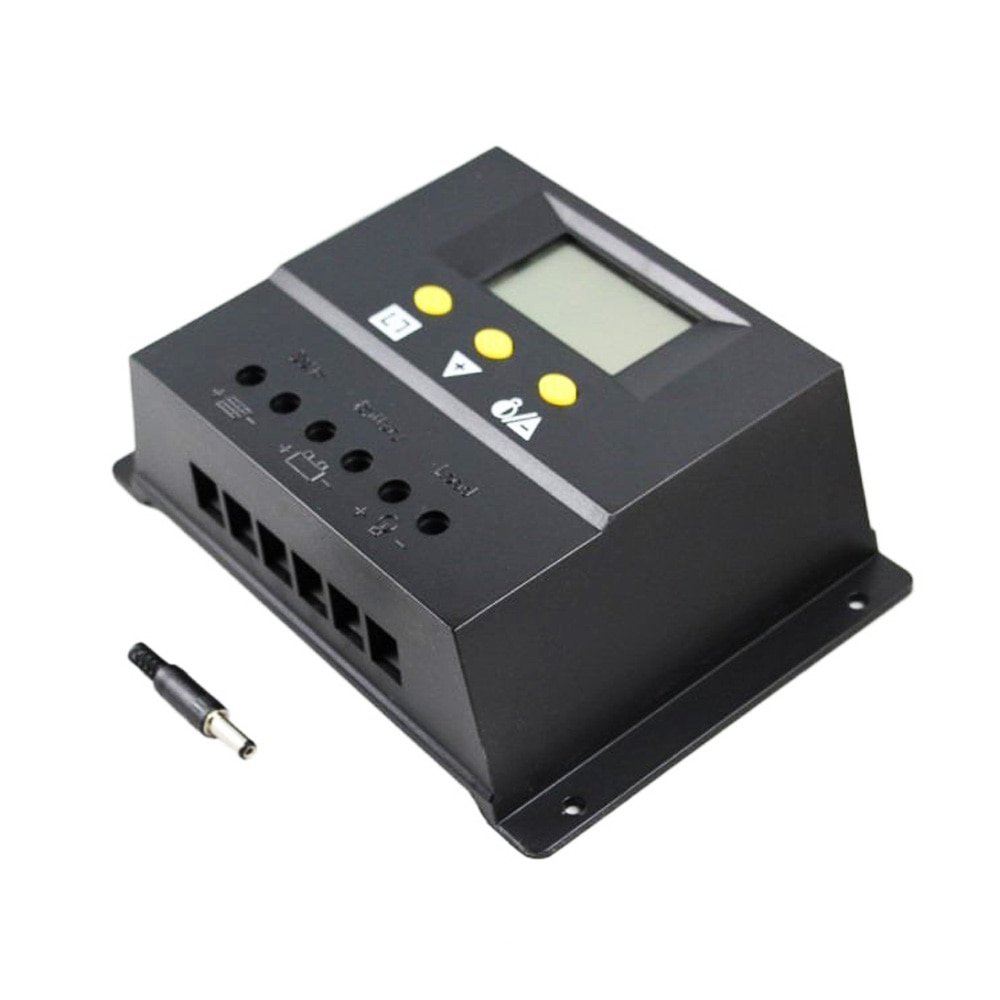

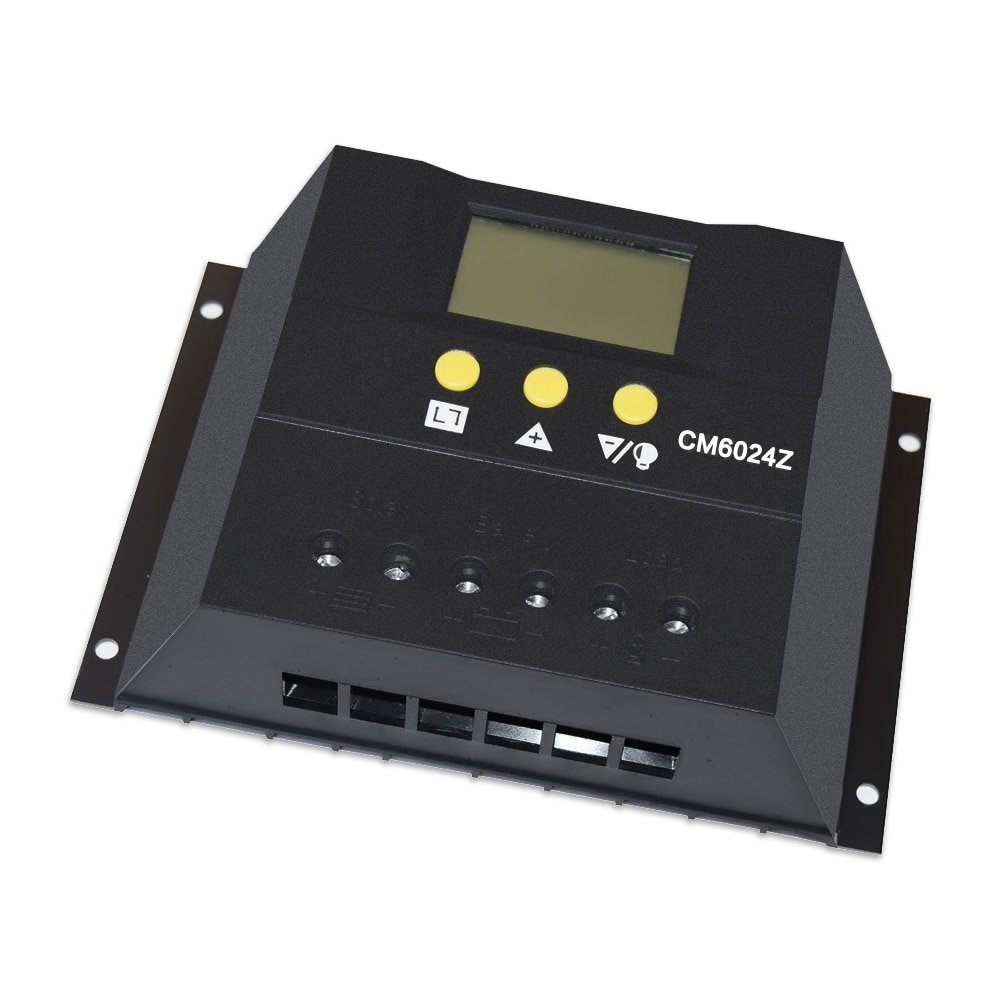

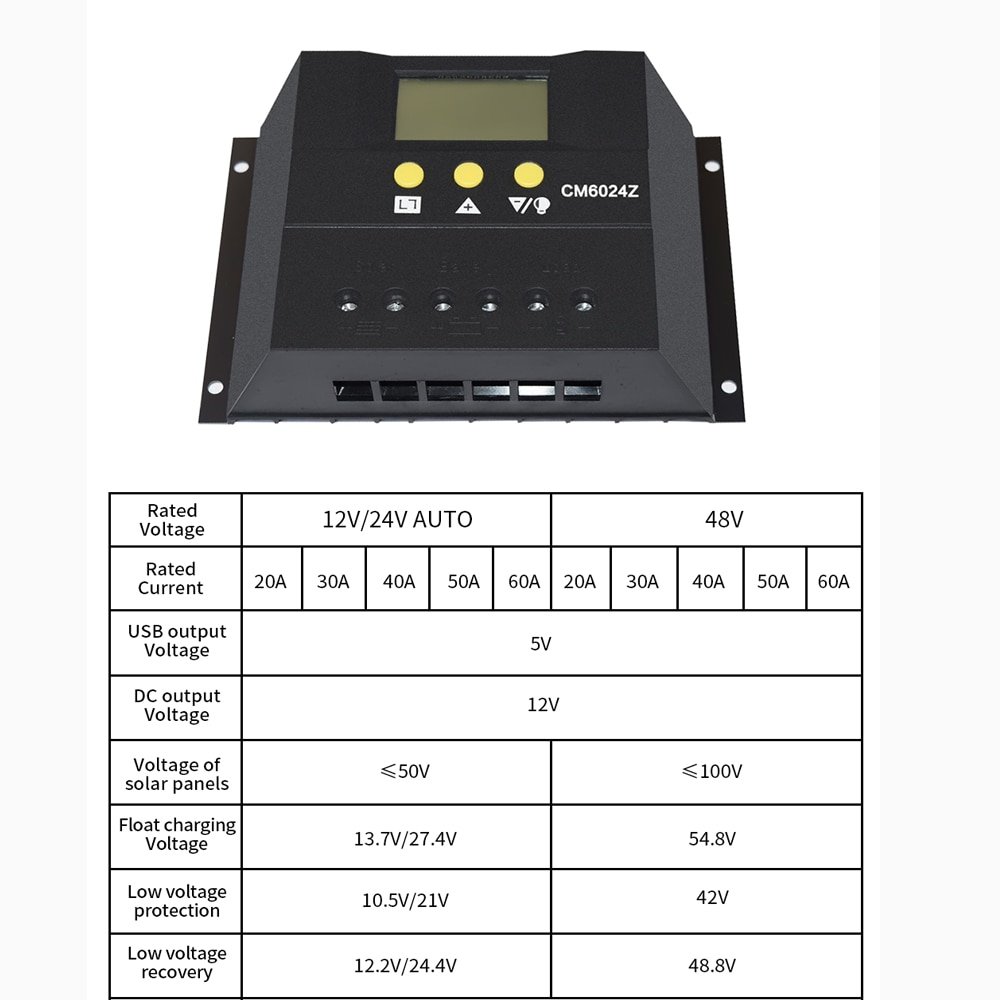

• 2x 50A Controller
• 2 sets 5-in-1 PV Adapter

OR

Note:

1. This product must not be in contact with highly corrosive substances to avoid excessive bending and long-term bending;
2. The solar panel should be prevented from stacking and falling down, the solar flexible panel cannot be disassembled, do not collide with hard objects, avoid trampling, and avoid scratching the surface with hard objects during use;
3. A large number of scratches or dirt on the surface of the solar panel may result in low efficiency of the solar panel, which may seriously cause burnout;
4. The suitable ambient temperature range of solar panels: -20 ℃-80 ℃, do not exceed this range;
5. The solar panel must be installed in an area with good sunlight and no shadow. The solar panel may work in the shaded sunlight for a long time and there may be a risk of burnout;
6. When used in series connection, the “+” of the previous component is connected to the “-” of the next component. The same panel cannot be directly connected to the positive and negative poles.

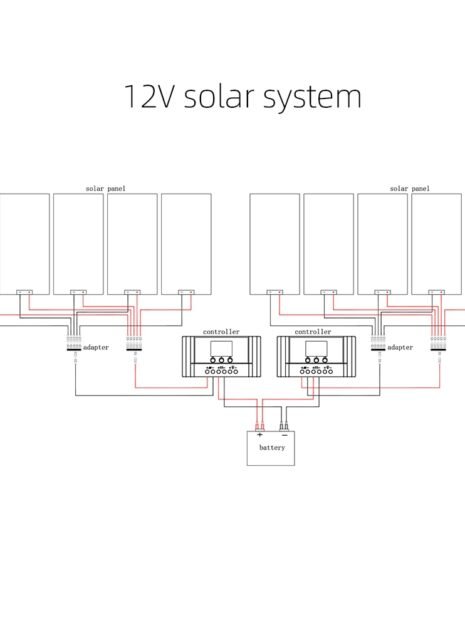

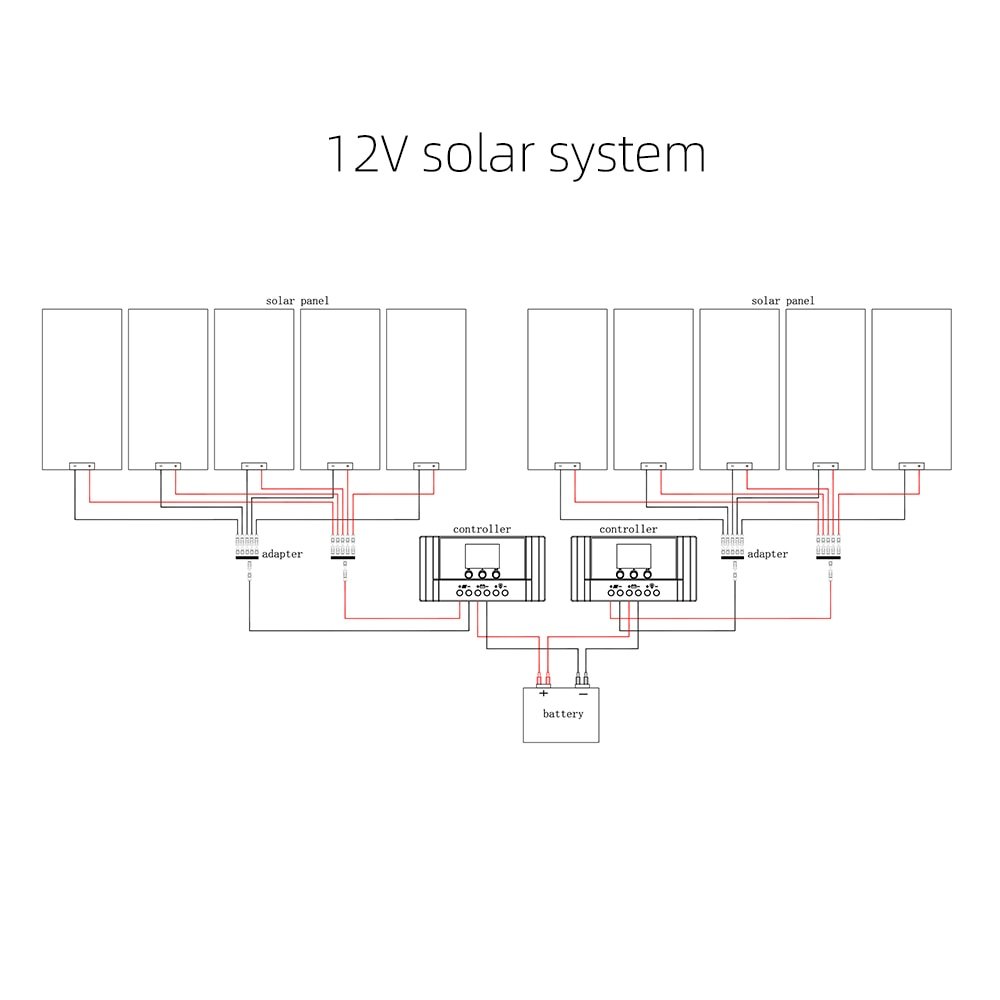

Solar Panel Connection Installation Method

When you use a 12V battery, use a parallel connection; when you use a 24V battery, use two serial connections. Please install the solar panel on a smooth surface with good sunlight and no shadow, and try not to install it on uneven areas. Solar panels can be fixed with glue or bolts.
