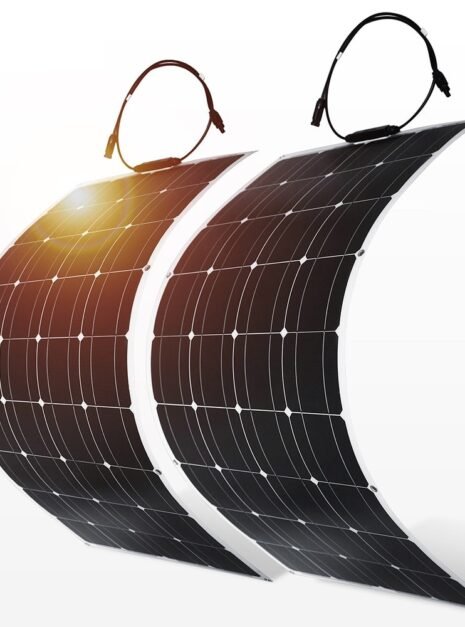

100W Flexible Monocrystalline Solar Panel For Car Battery & Boat & Home

Description

100W Flexible Monocrystalline Solar Panel For Car Battery & Boat & Home – 12V 200W, 300W, 500W, 1000W

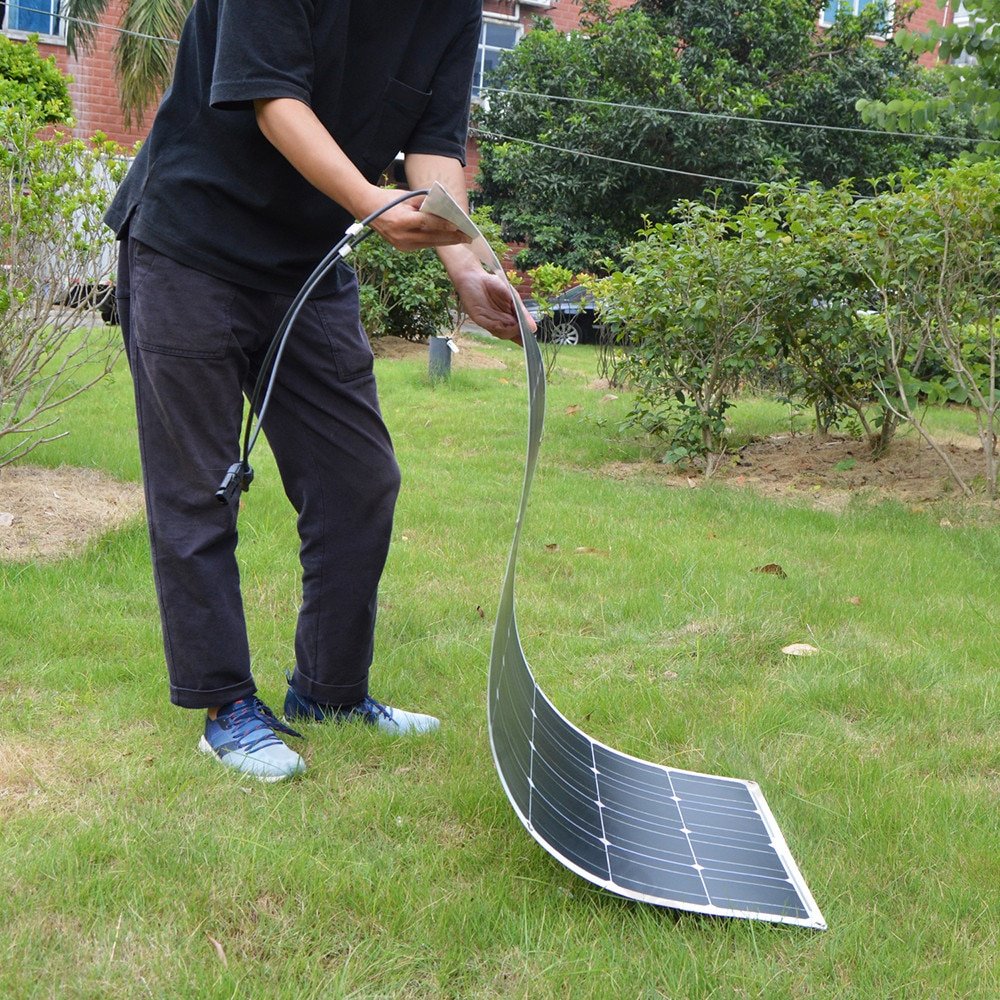

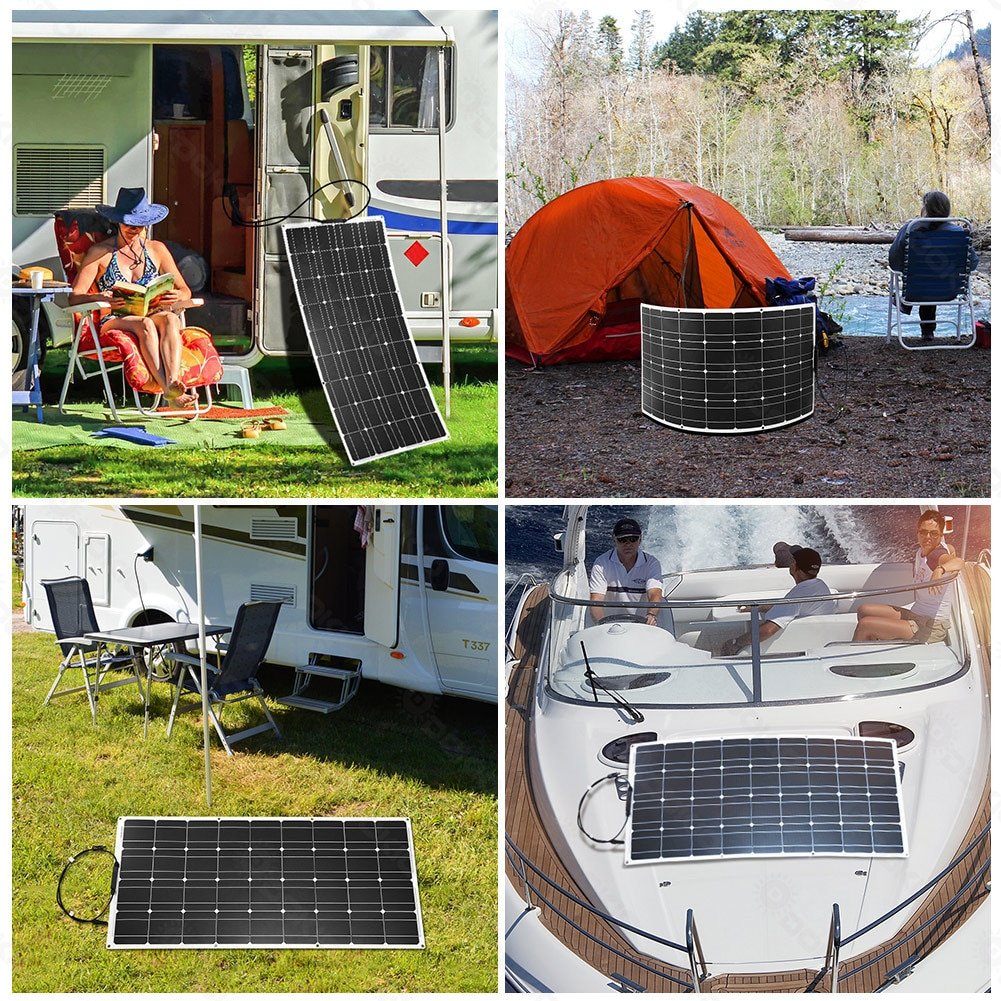

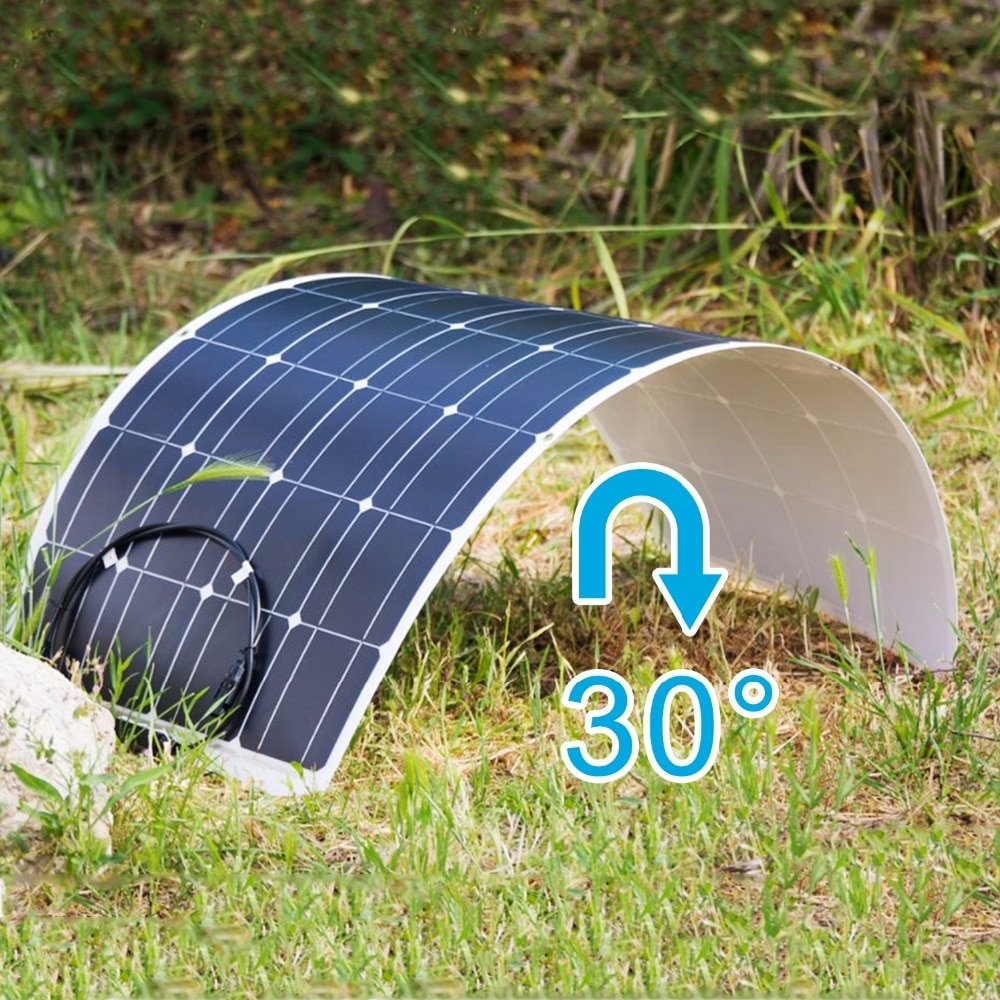

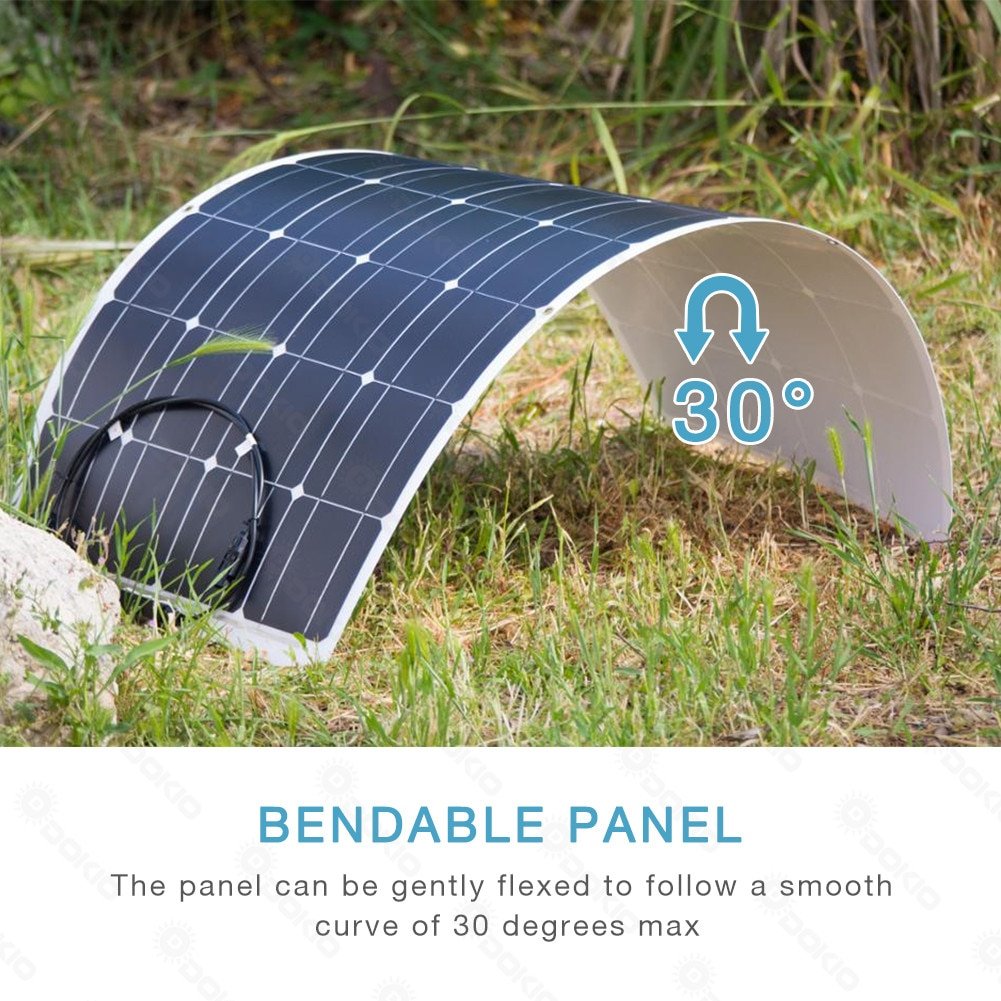

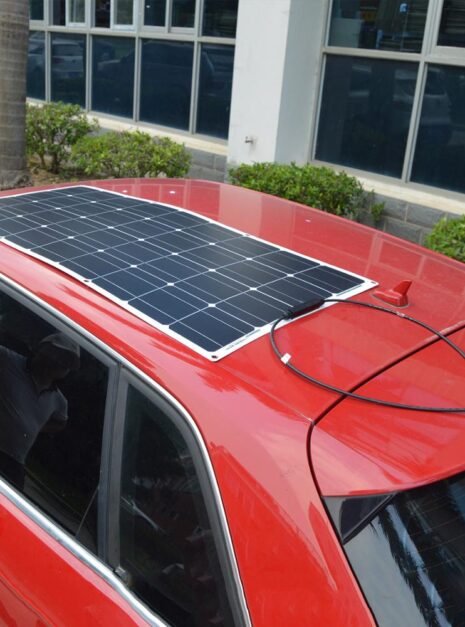

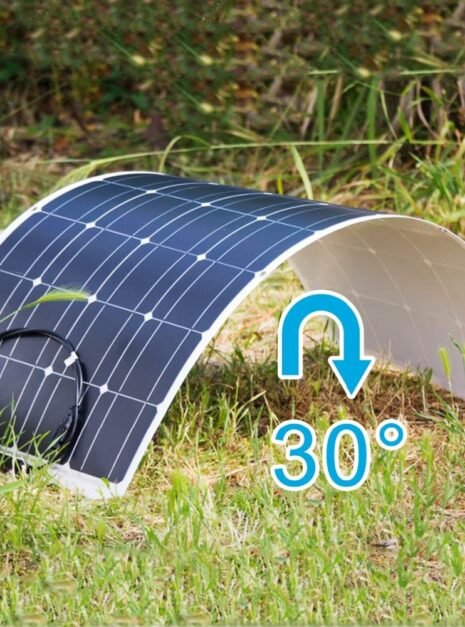

• Easy-to-Use: Semi-flexible panels can be mounted on irregular surfaces such as RV roofs, boats, tents, vaulted roofs, etc. Up to 30 degrees.

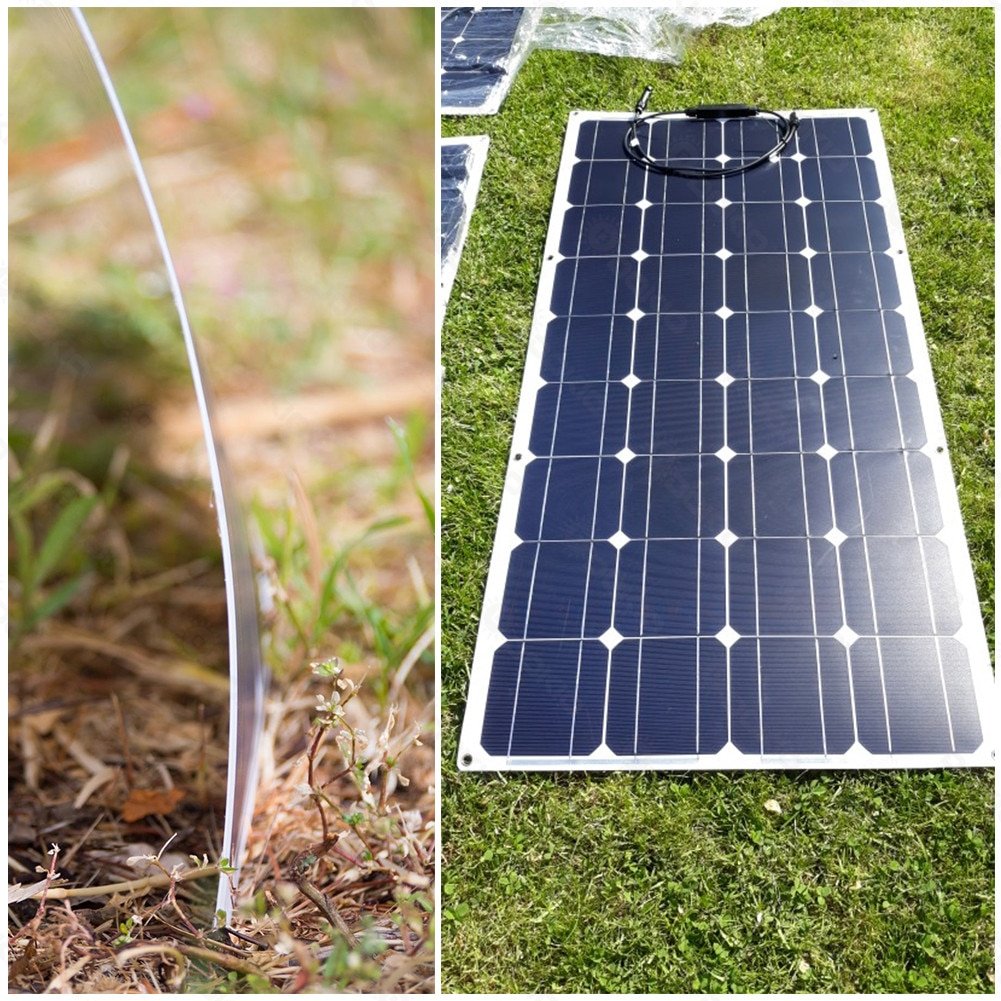

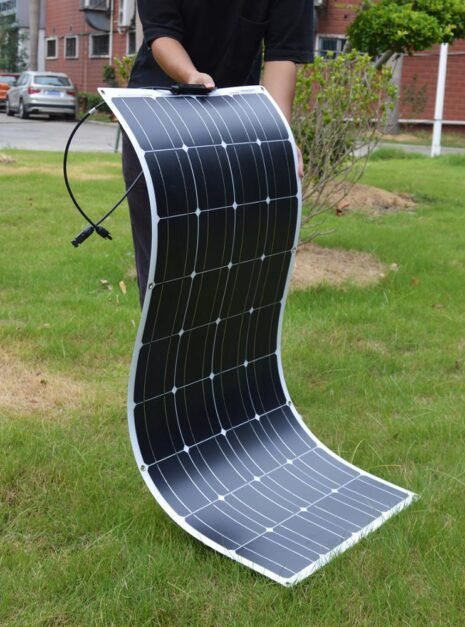

• High efficiency, Light weight: only 1.5mm thick, weight 1.1kg, easy to hang, disassemble and carry. Suitable for camping and travel.
• Easy-to-Install: Metal holes in the four corners of the product for fixing screws and mounting. Each solar panel has been tested several times.

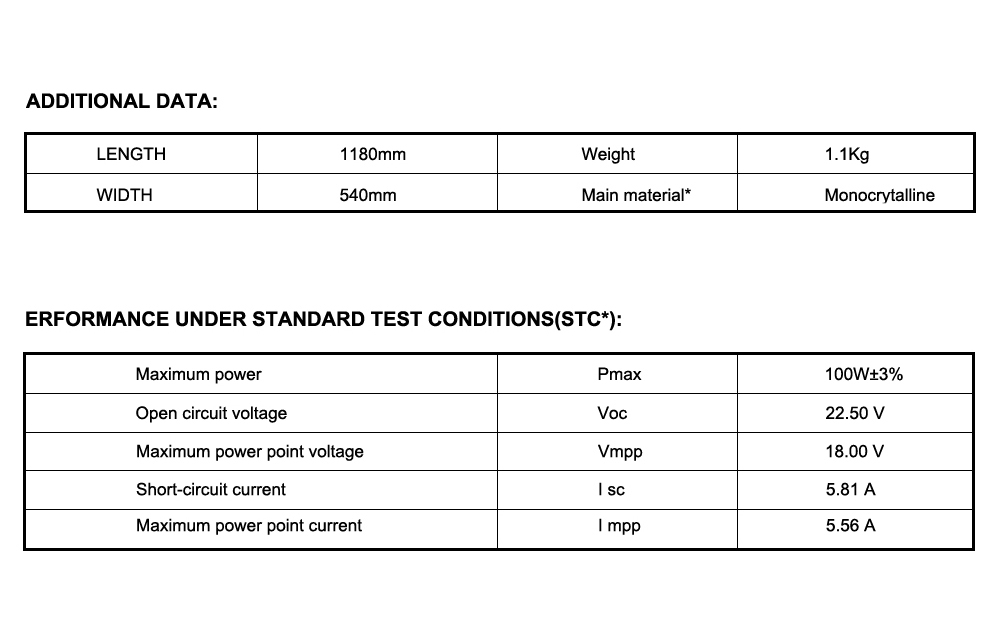

Product Parameters:

• Maximum Power (Pmax): 100W
• Maximum Power Voltage (Vmp): 18.00V
• Maximum Power Current (Imp): 5.56A
• Open-Circuit Voltage (Voc): 22.50V
• Short-Circuit Current (Isc): 5.81A
• Maximum System Voltage: DC1000V
• Maximum Series Fuse: 15A
• Nominal Operating Cell Temp.(NOCT): -45 to 80℃
• Weight: 1.1KG

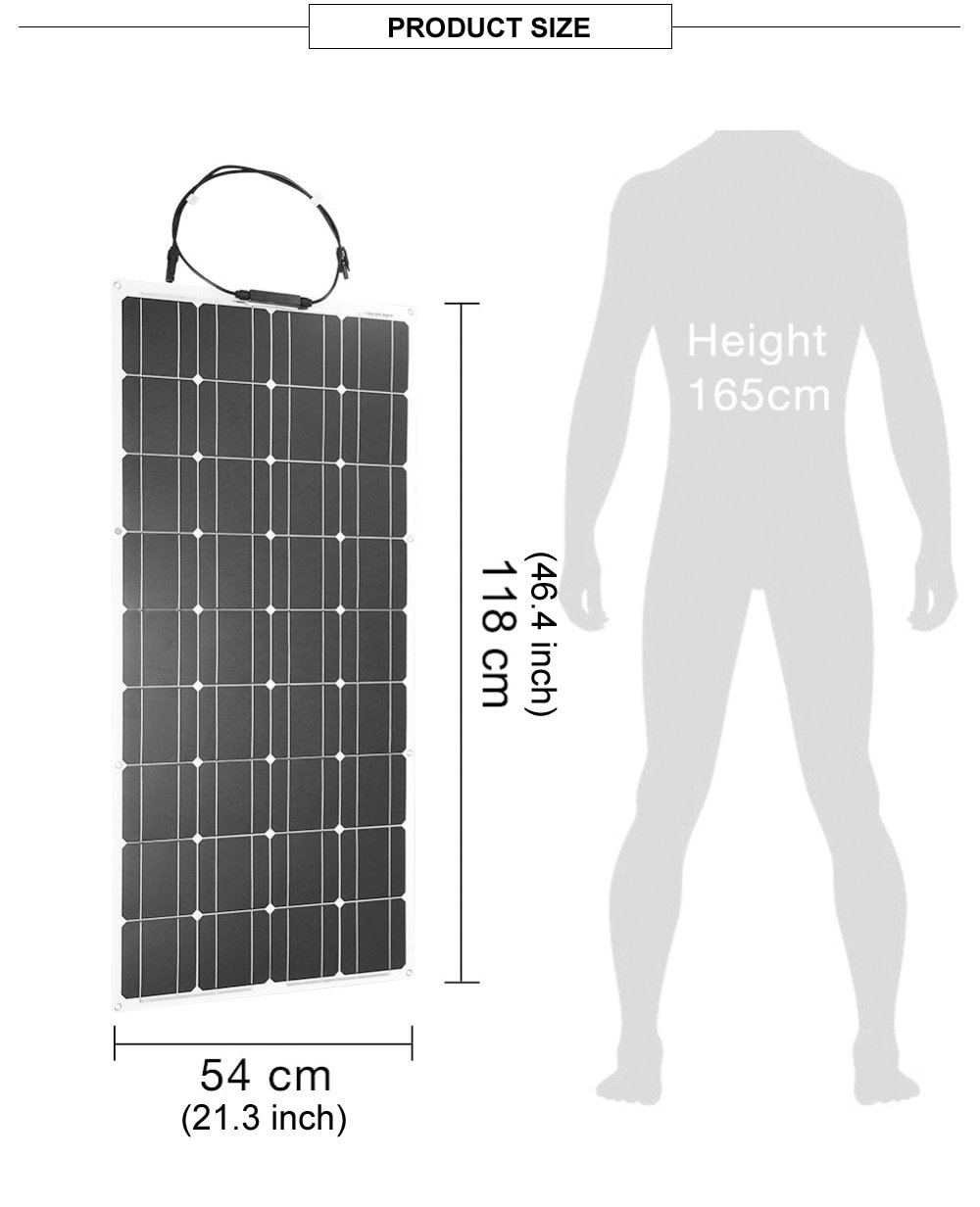

• Dimensions: 1180x540mm

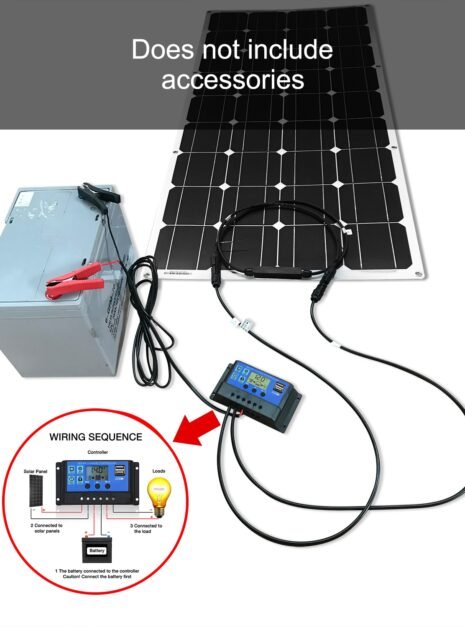

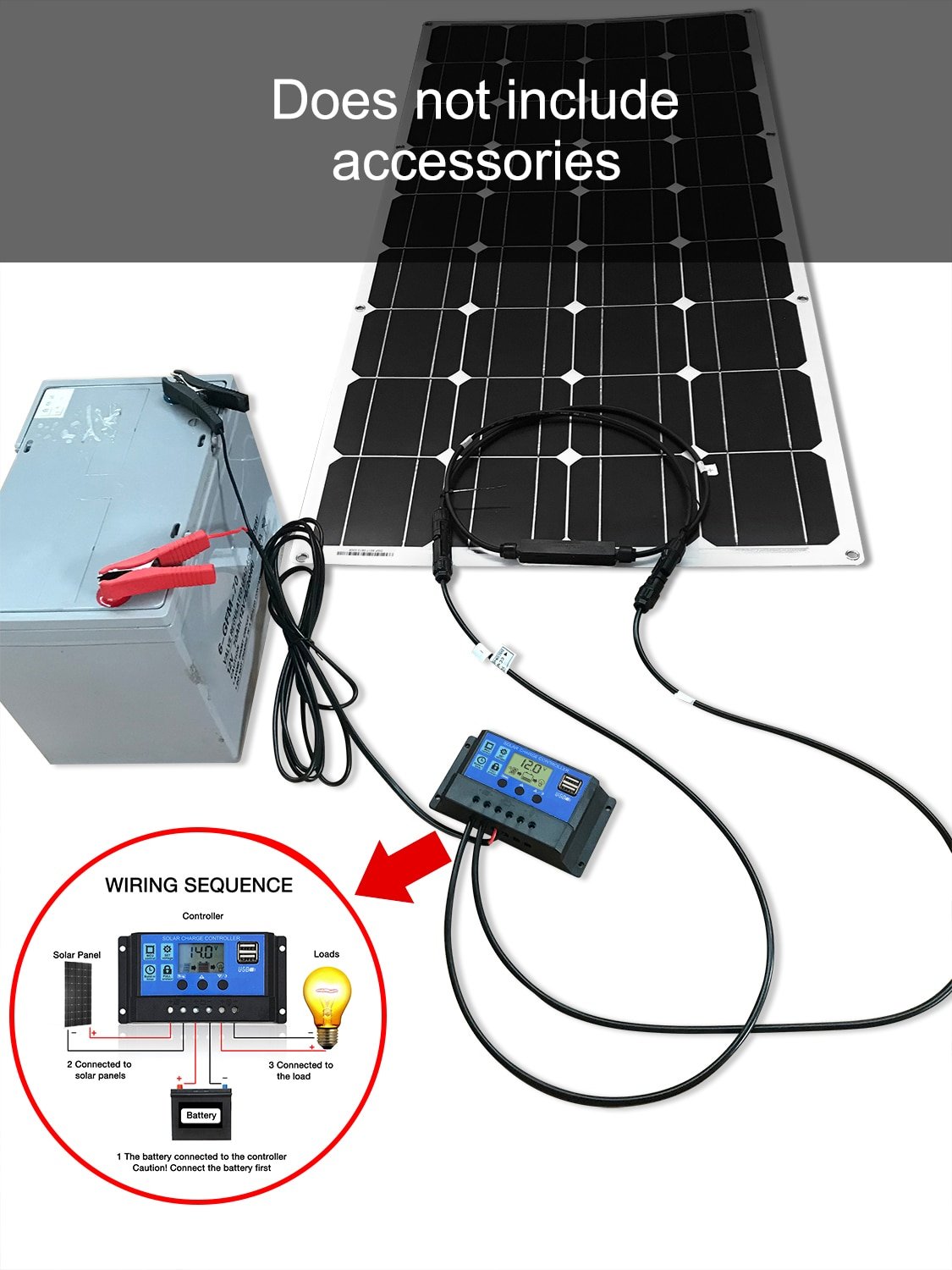

Please Note: For field connections, use minimun No.12AWG copper wires insulated for a minimum 90℃.
