Flexible Solar Panel Kit with 10A Controller PV Cable Connectors

Description

12V 100W 200W Flexible Solar Panel Kit with 10A Controller PV Cable Connectors

Features

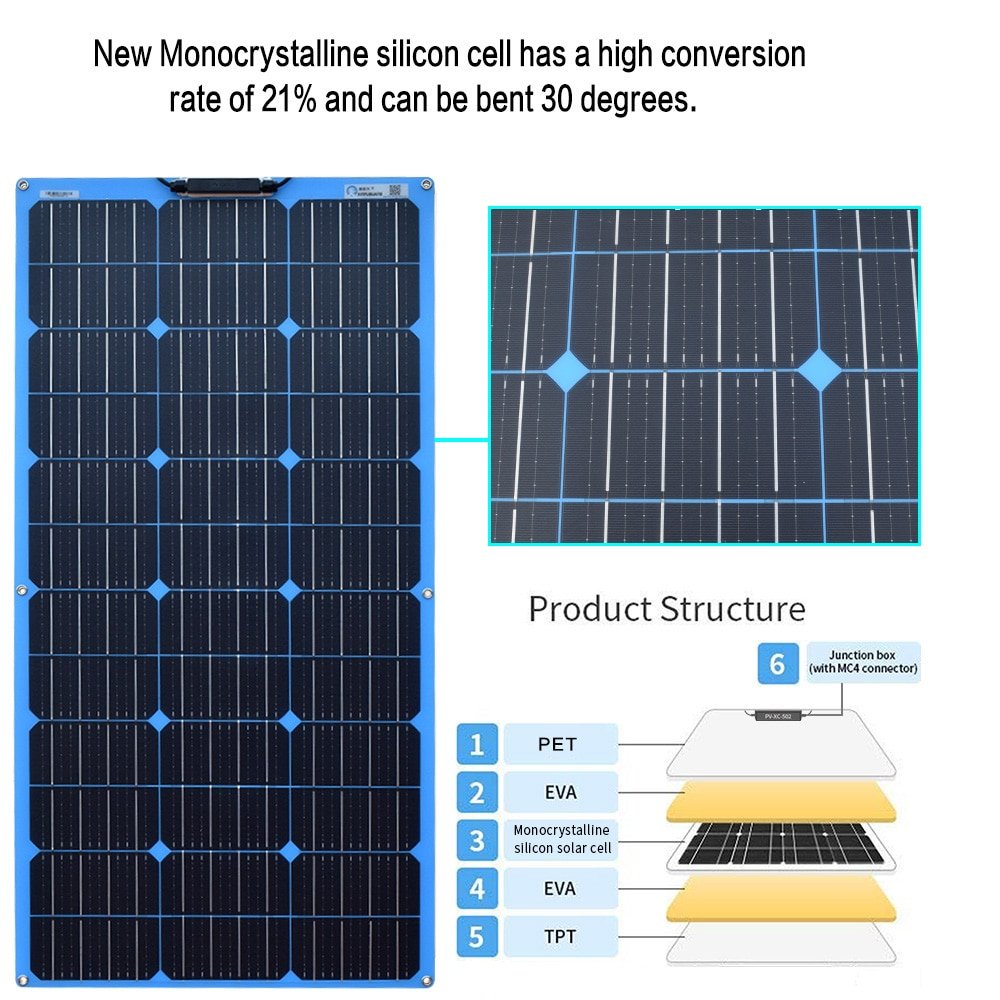

1. High Efficiency: Selecting high-efficiency 161*161mm 12 main-gate monocrystalline silicon solar cell, the power generation efficiency is about 1.3 times that of conventional polycrystalline, and the overall area is smaller under the same power.

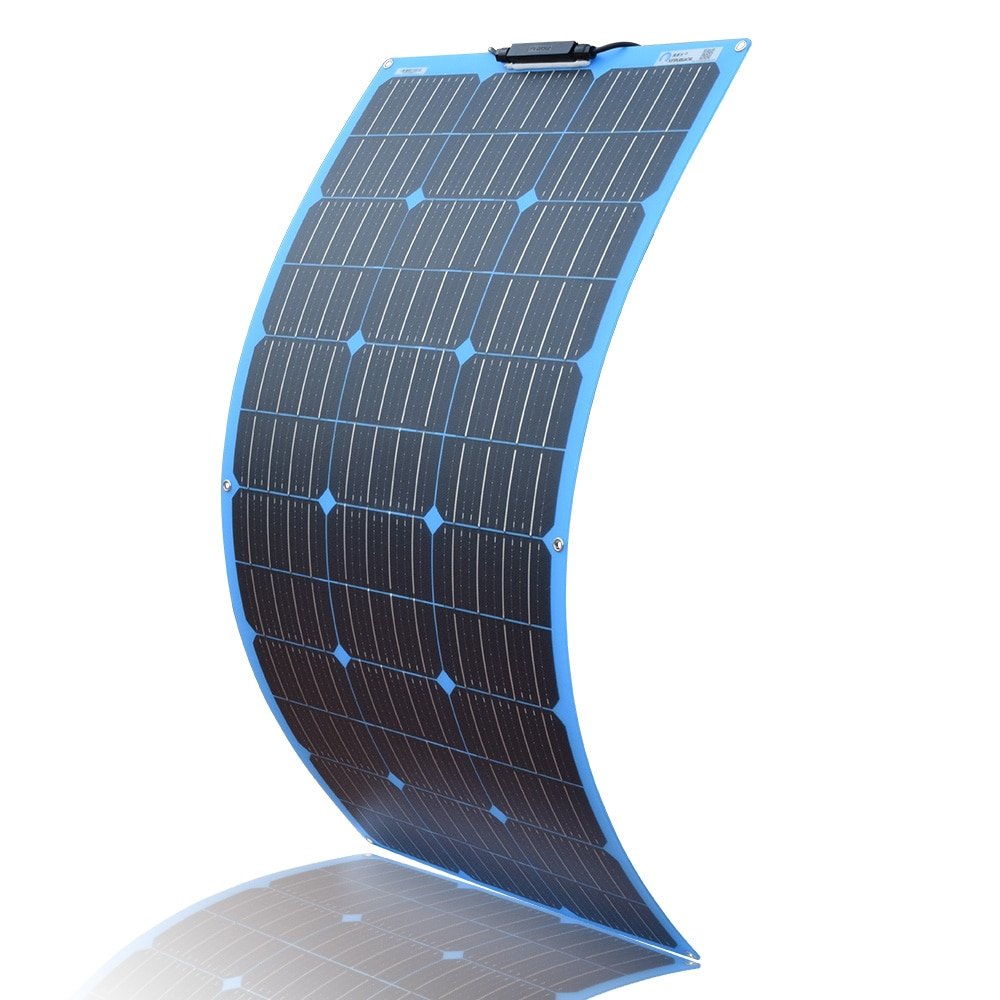

2. Light and Flexible: Using the second-generation component packaging process, it is thinner, lighter, softer and has a longer life.
3. Durable: PET material with special technology to make it more wear-resistant and improve the absorption efficiency of sunlight.
4. High Quality: It has high light transmittance, is safe and reliable, is not afraid of high temperature, and has no danger of burning or explosion.

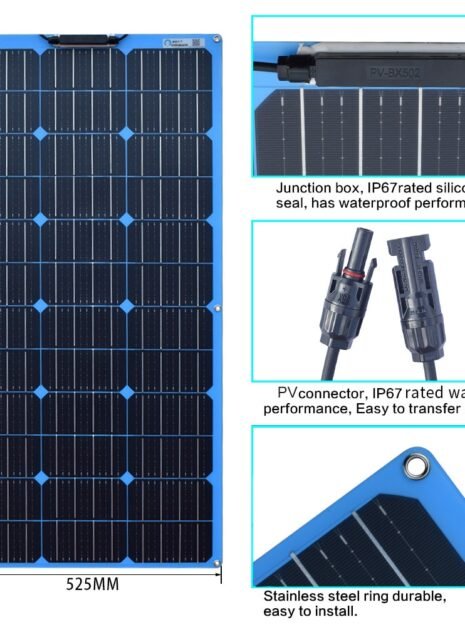

5. Junction box IP67 waterproof design, including bypass diode, the circuit uses input overcurrent protection, reverse protection design.
6. The assembly outlet uses photovoltaic special cable and photovoltaic special PV connector. It is safe, waterproof, high temperature resistant and weather resistant for outdoor use. The PV connector is easy to use and plug and play.

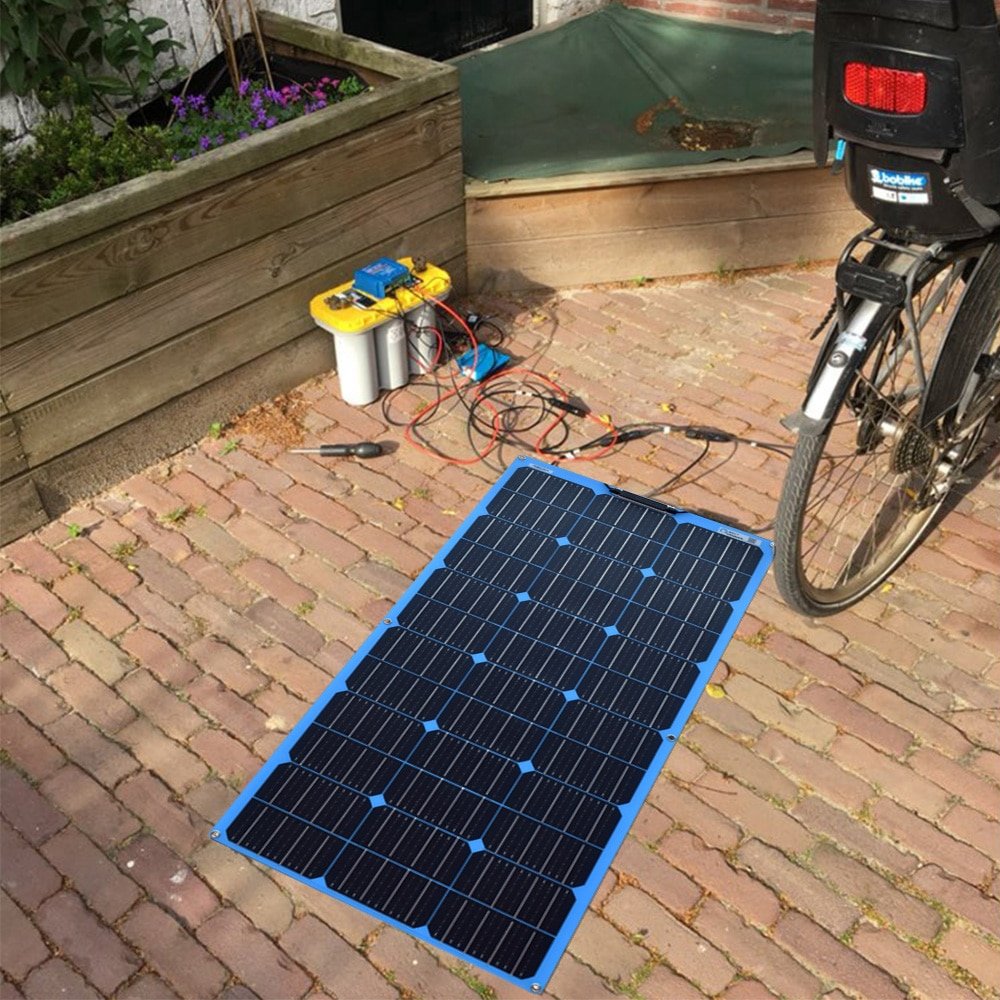

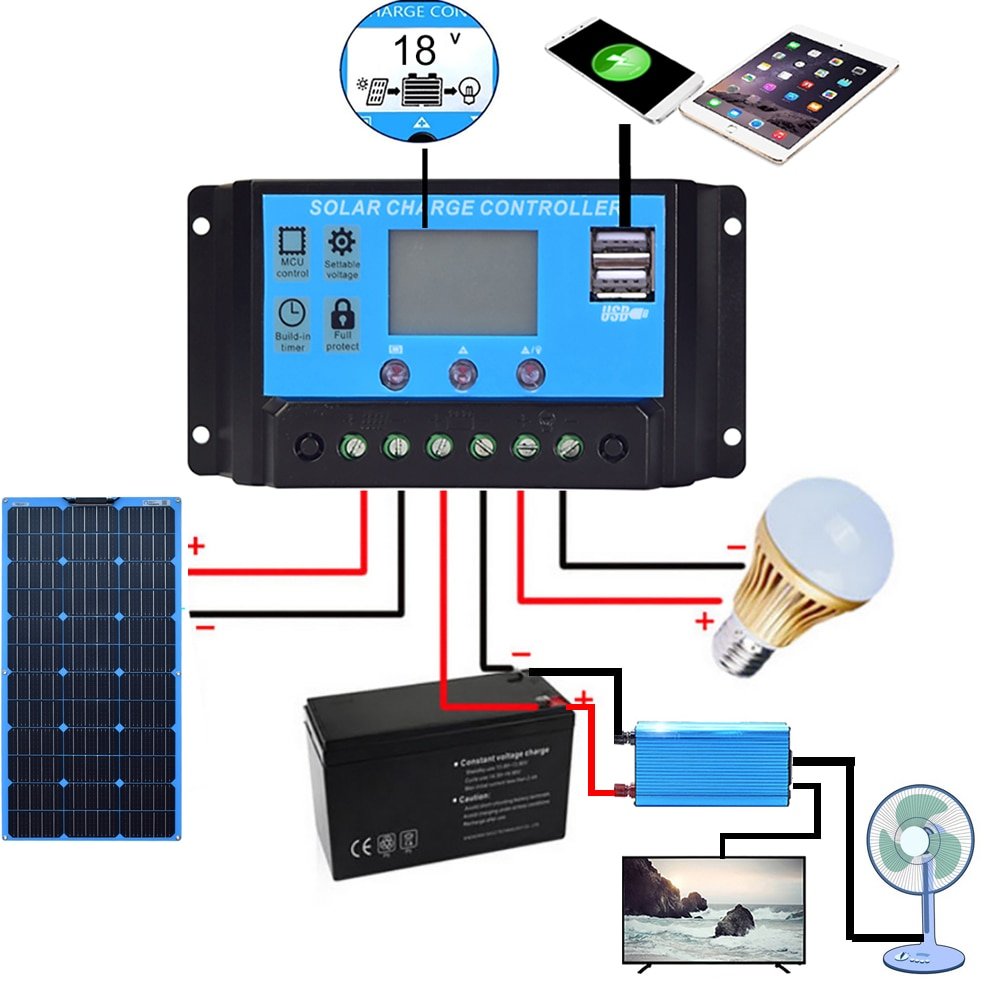

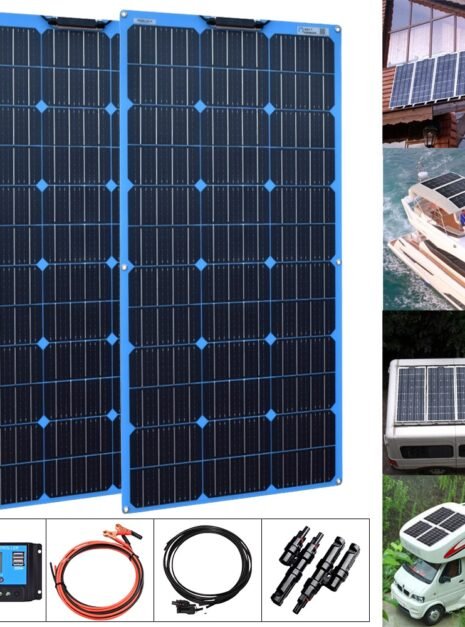

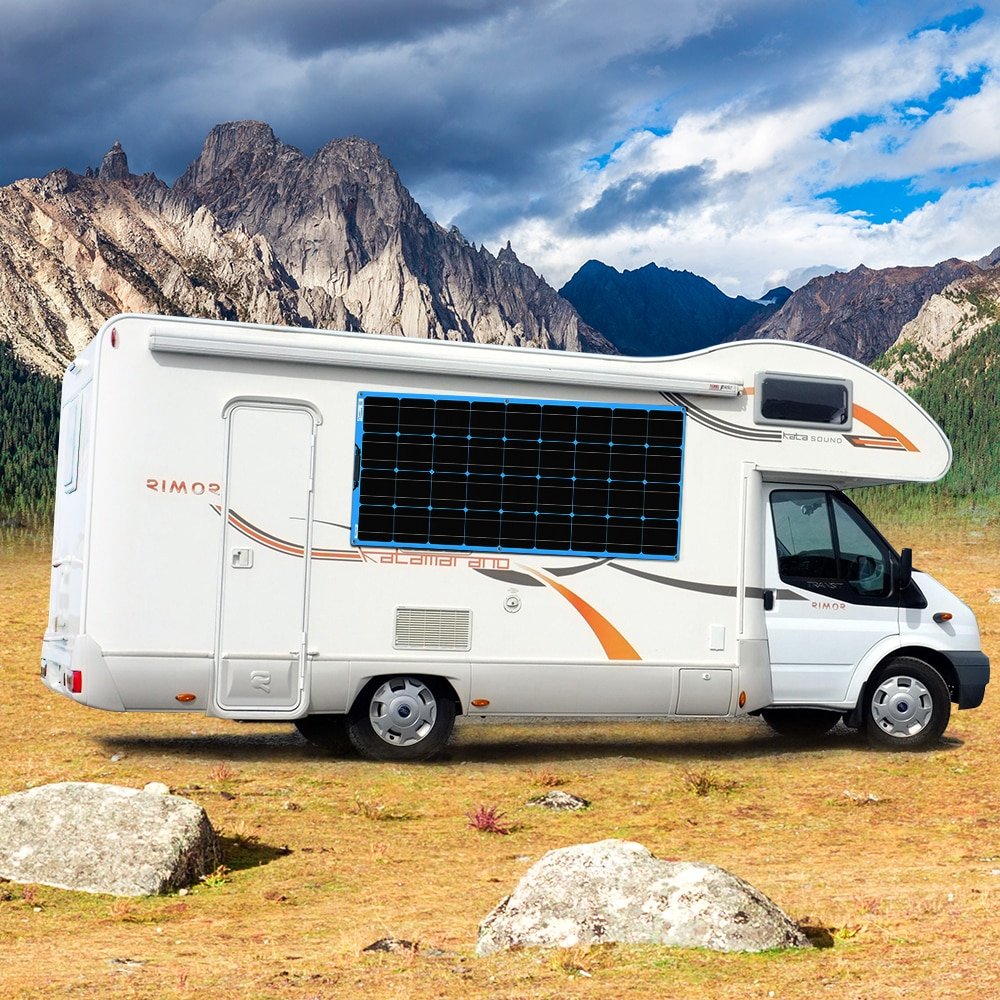

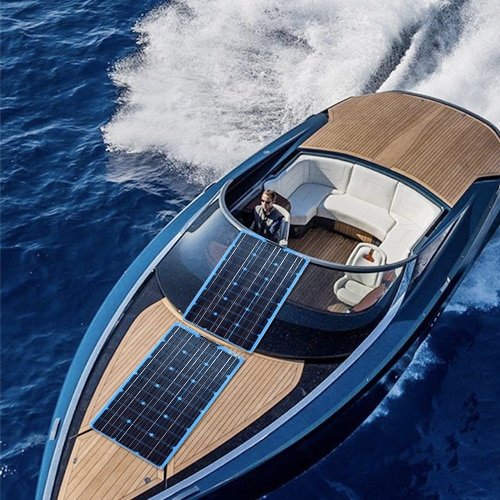

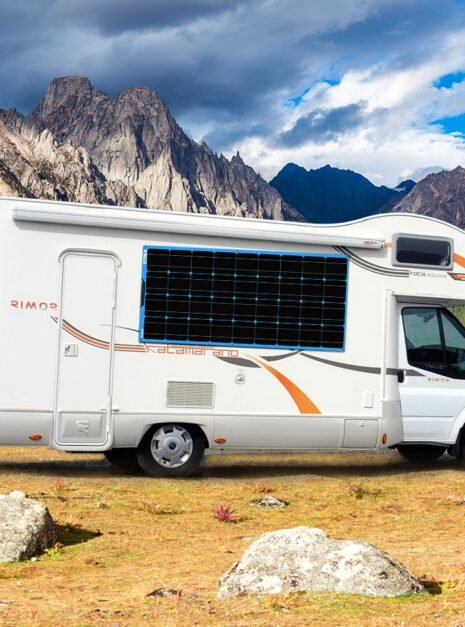

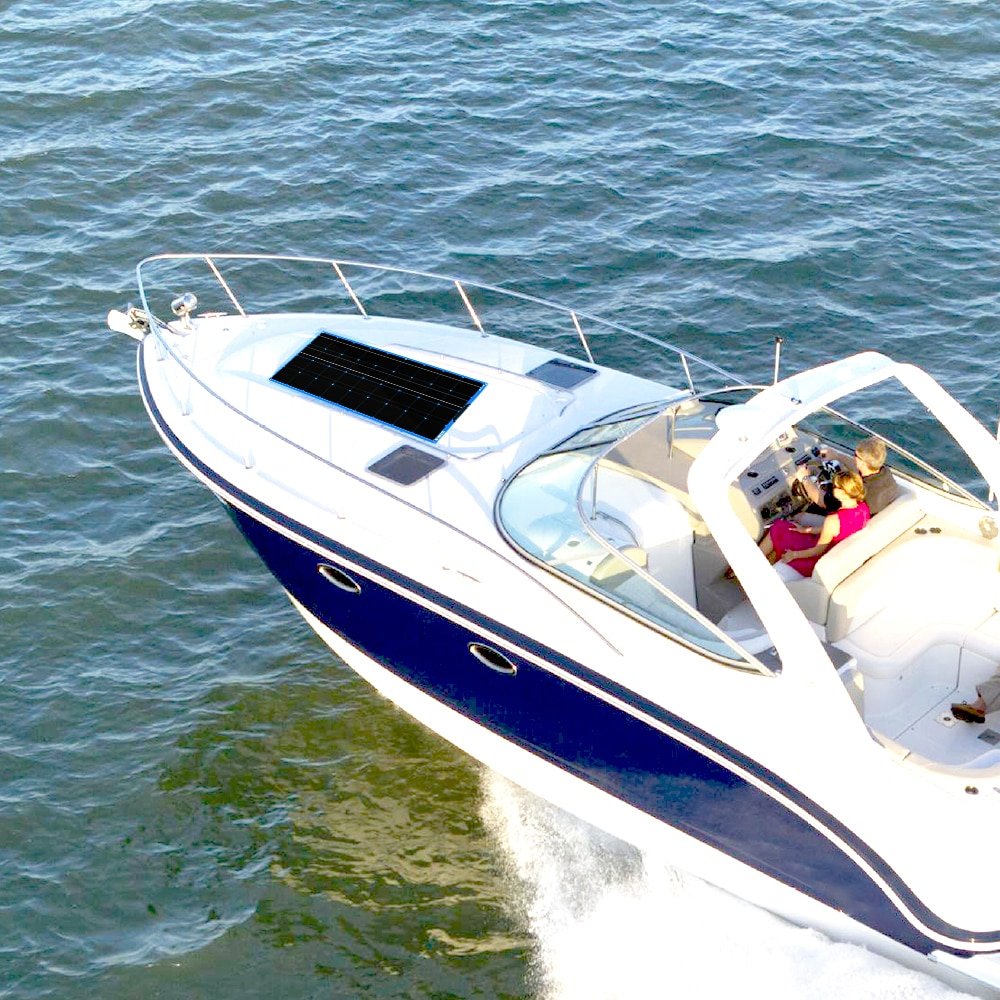

7. This product is a solar flexible component. It is recommended to be used with controllers and batteries. It is suitable for various scenes such as RV, household, camping, yacht, street light and solar power station.

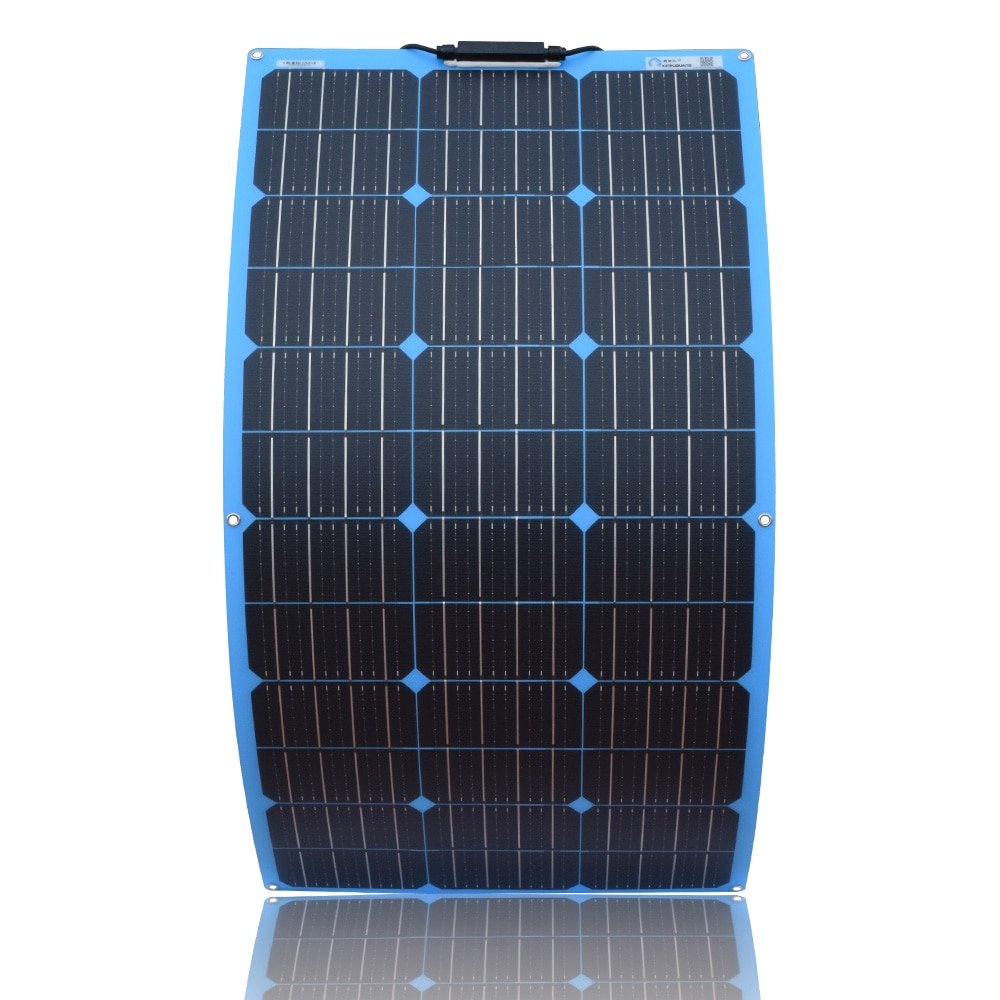

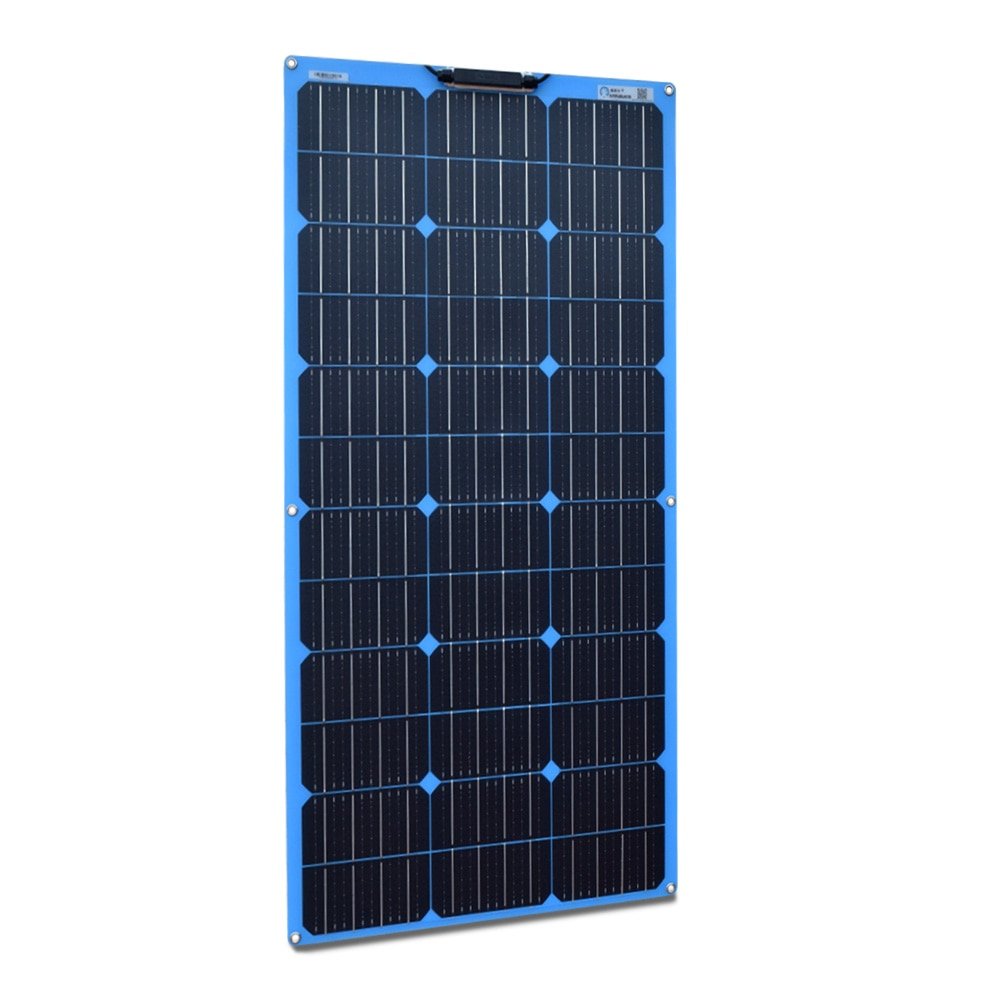

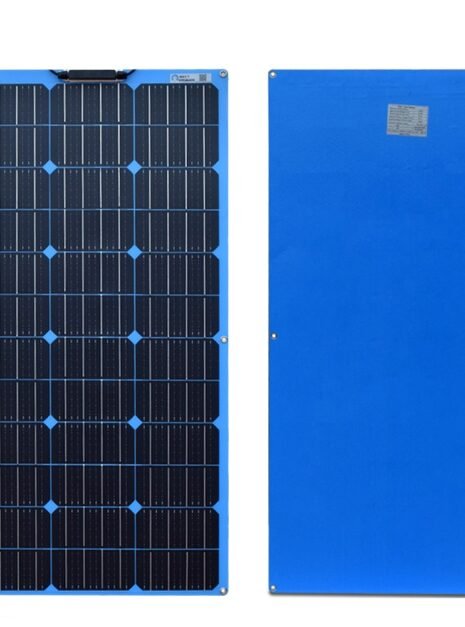

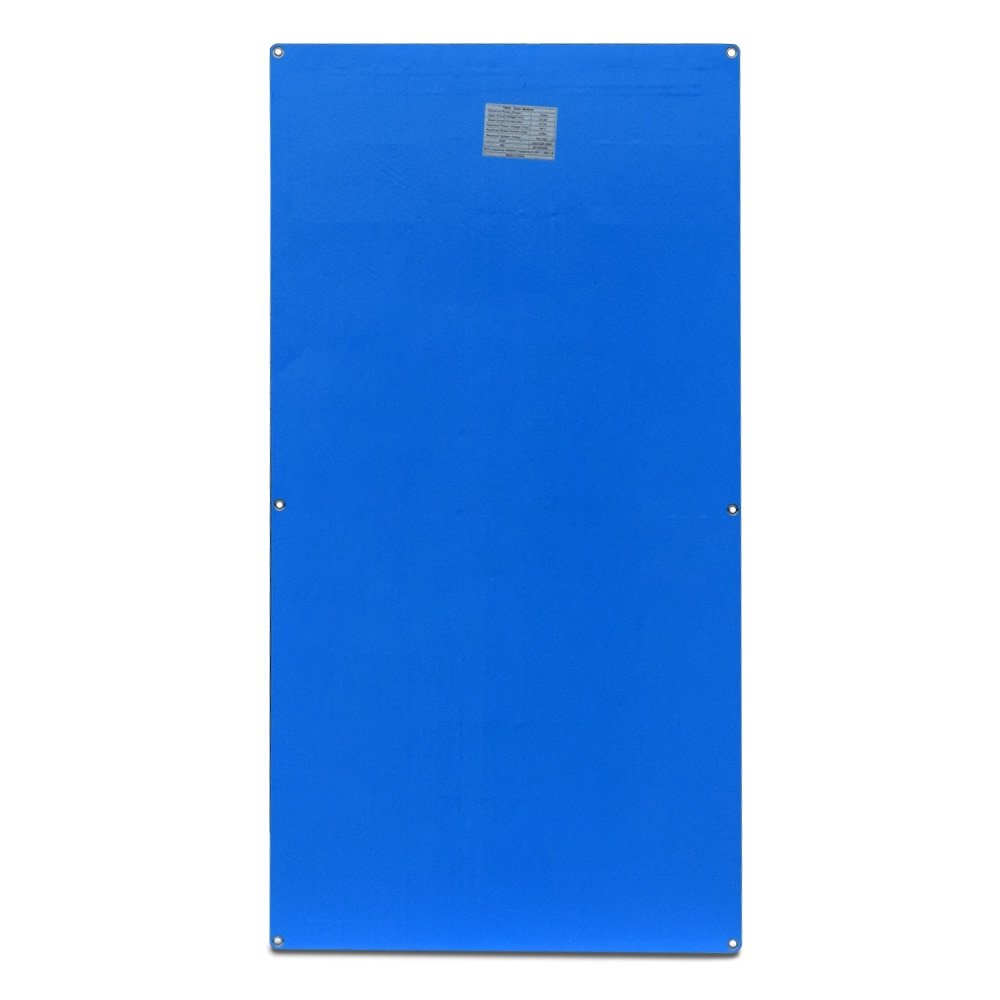

Specification of Solar Panel:

• Maximum power (Pmax): 100W
• Output tolerance: ± 3%
• Maximum system voltage: 700V DC
• Open circuit voltage (Voc): 21.6V
• Short circuit current (Isc): 6.11 A
• Maximum power voltage (Vmp): 18V
• Maximum power current (Imp):  5.55A
• Cell Efficiency: 21%
• Operating temperature (NOCT): 45±2℃
• Temperature range: -40℃～+80℃
• Number of cells: 36pcs
• Weight: 1800g
• Size: 1030x525x3 mm
• Backcolor: Blue
• Standard Test Conditions: lrradiance 1000w/m2，Temperature 25℃,AM=1.5

Package lists by Options:

• 1x 100W 18V Flexible Solar Panel

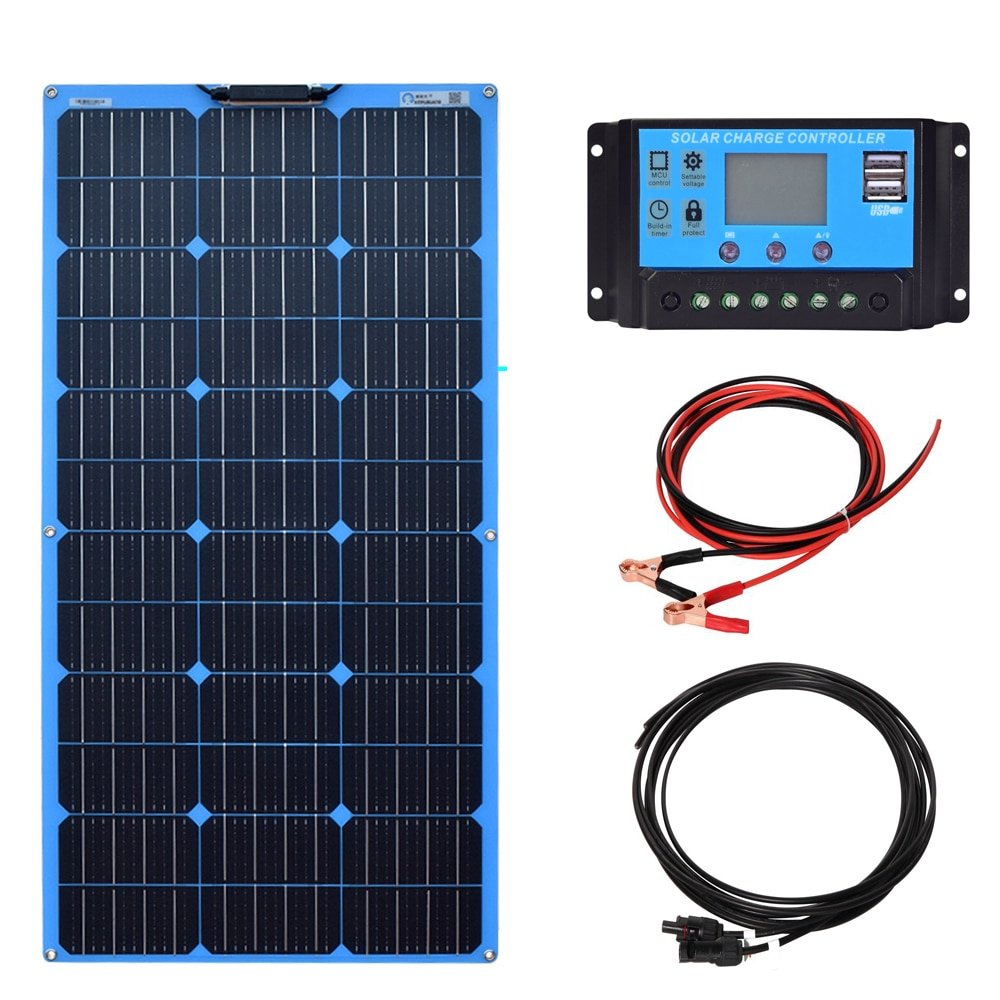

100W Flexible Solar Panel Kit:

• 1x 100W 18V Flexible Solar Panel

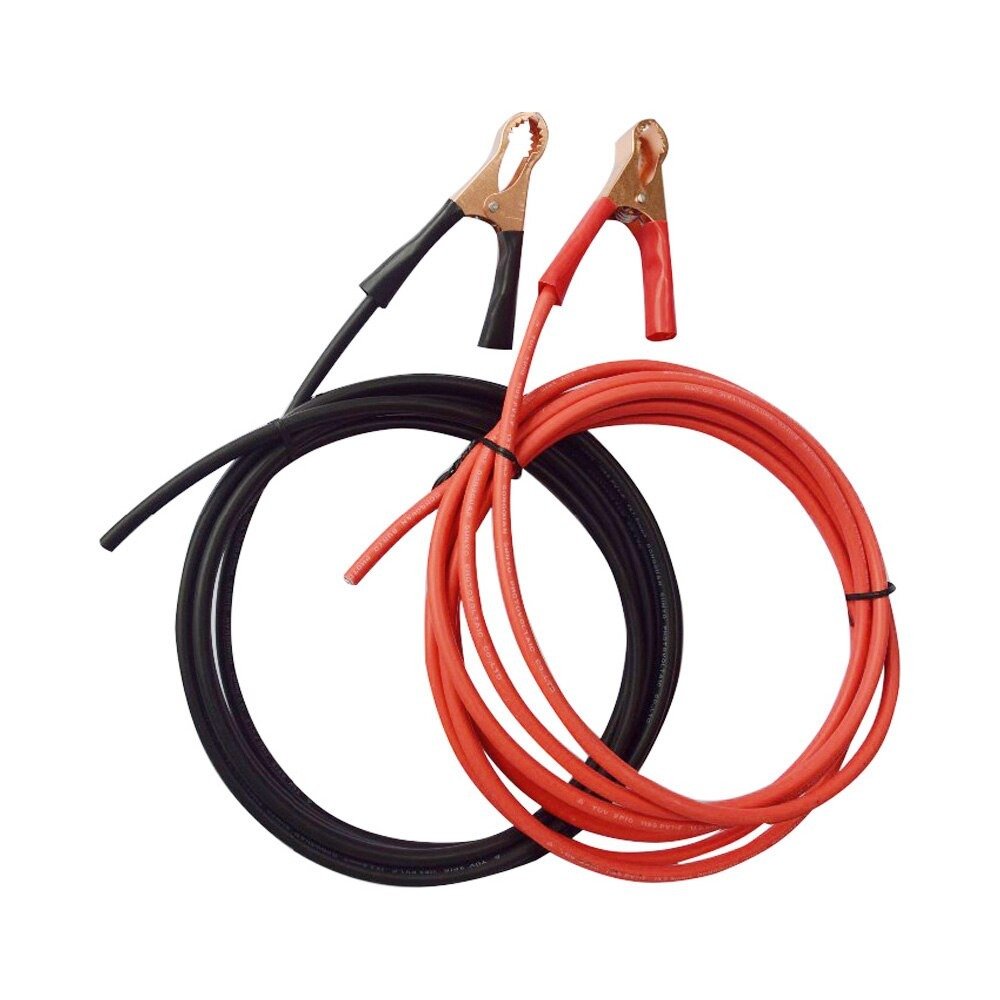

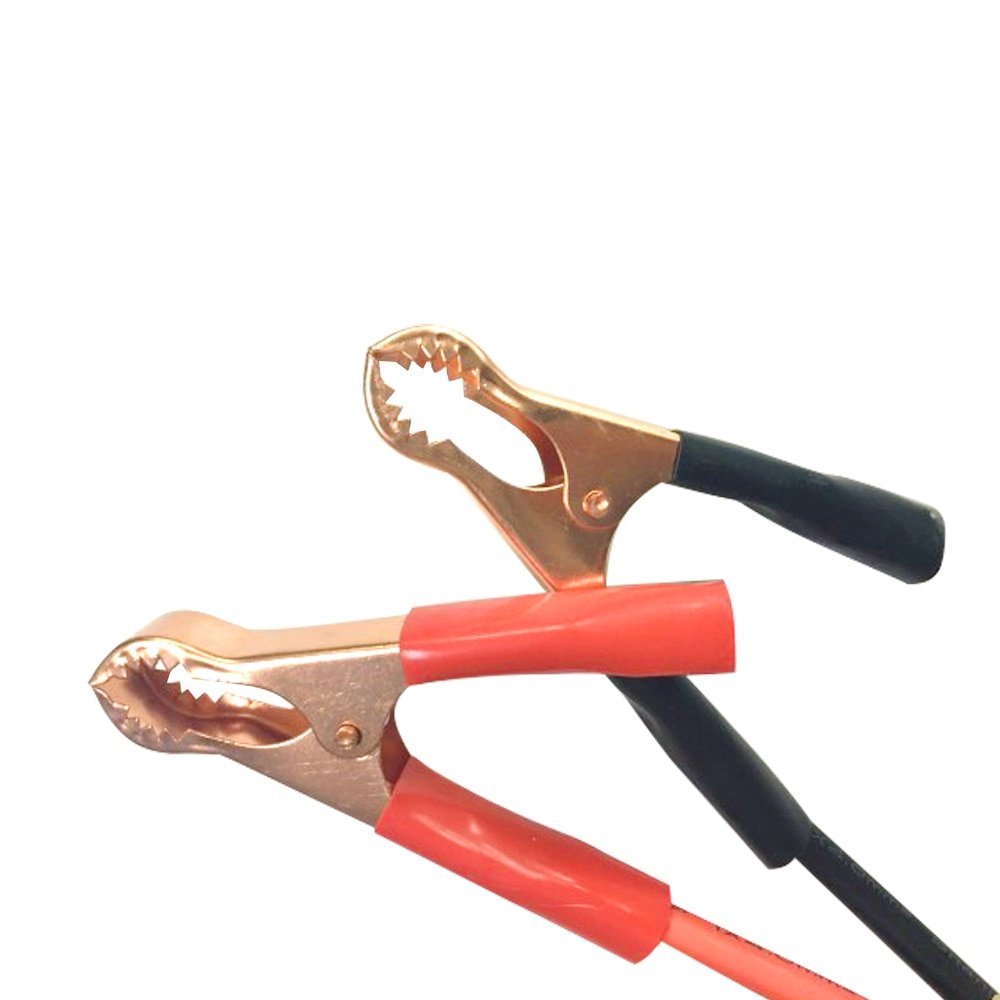

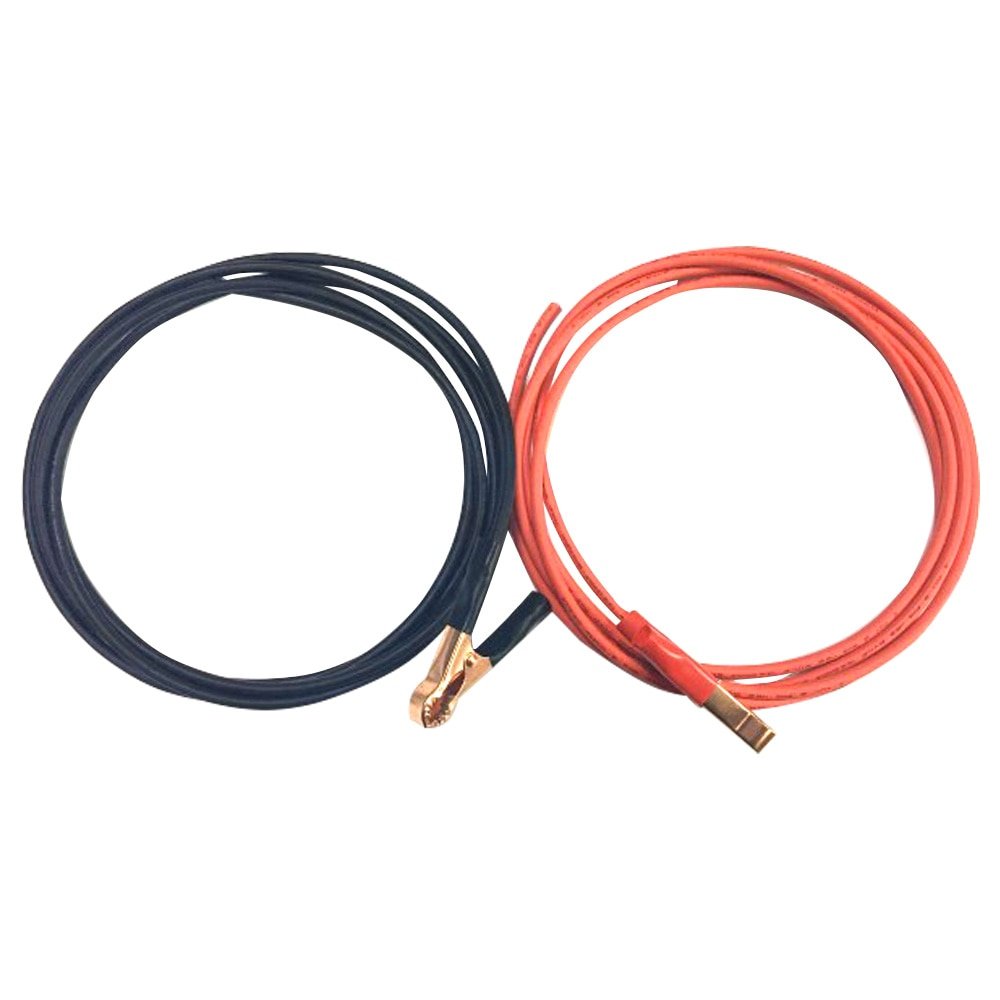

• 1x 3 meters 2.5mm Alligator clip Cable
• 1x 3 meters PV Connector
• 1x 12V/24V 10A Controller

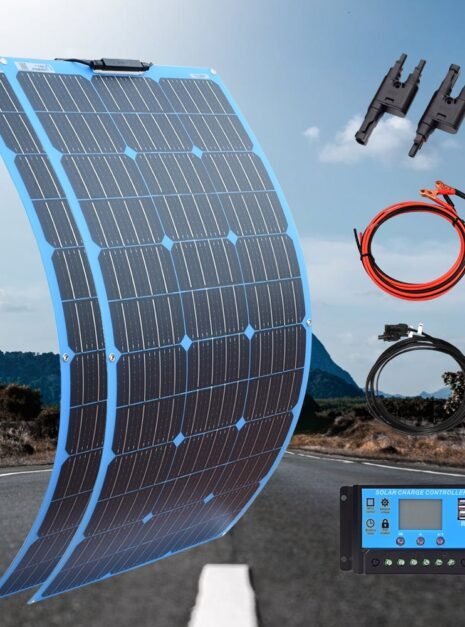

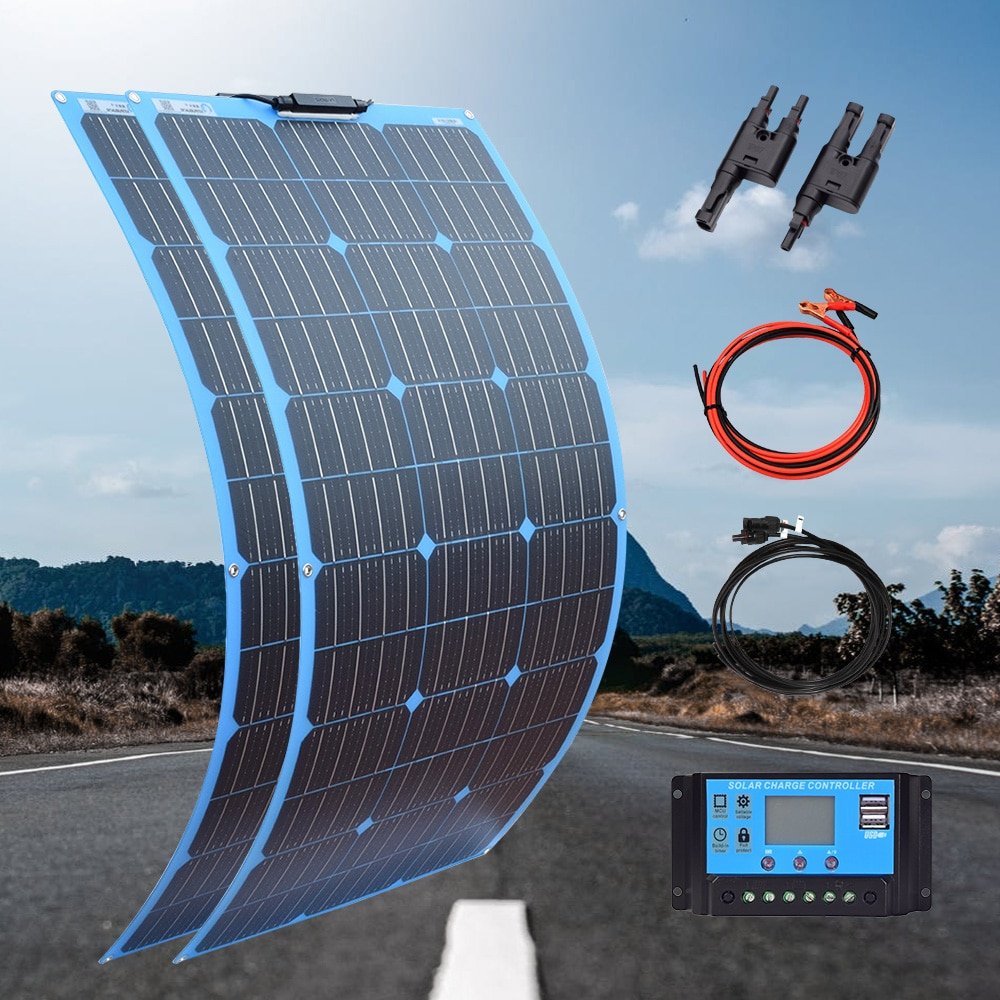

200W Flexible Solar Panel Kit:

• 2x 100W 18V Flexible Solar Panel
• 1 set 3 meters 2.5mm Alligator clip Cable (optional)
• 1 set 3 meters PV Connector
• 1 pc 12V/24V 20A Controller
• 1 set 2-in-1 out Connector

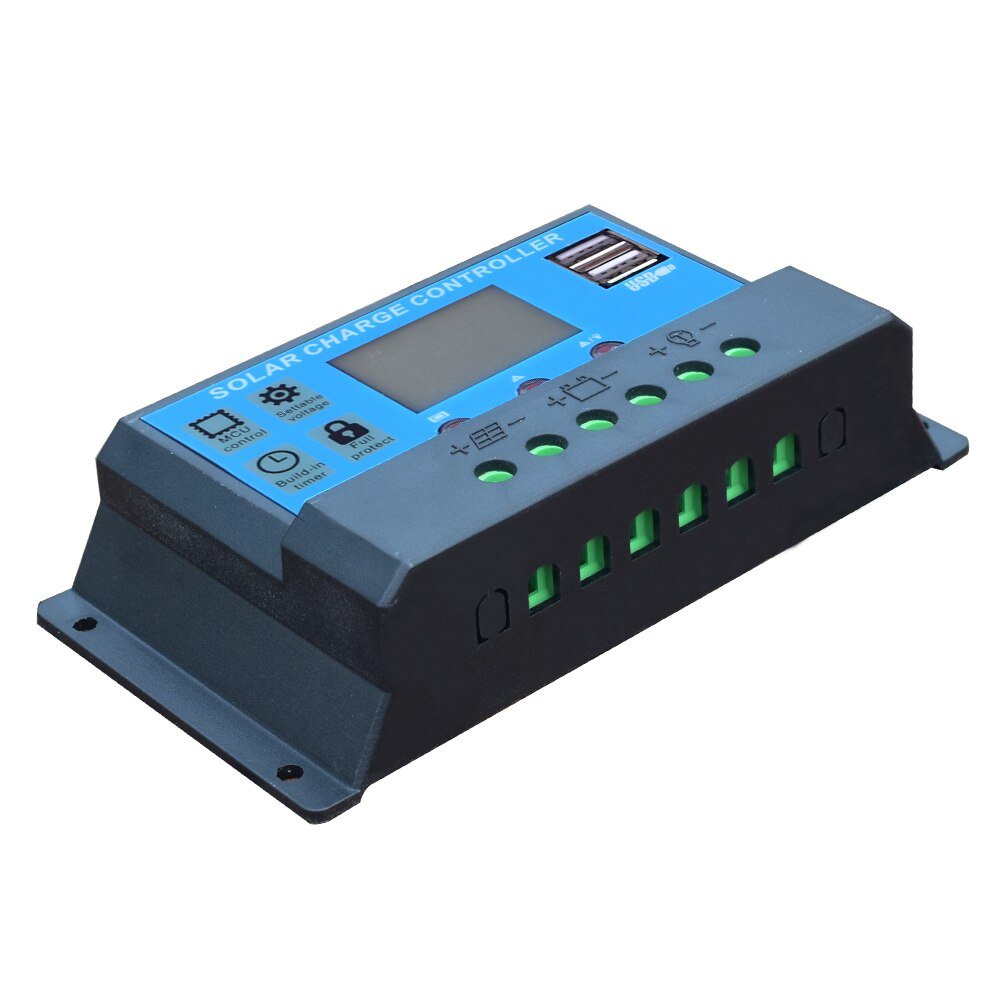

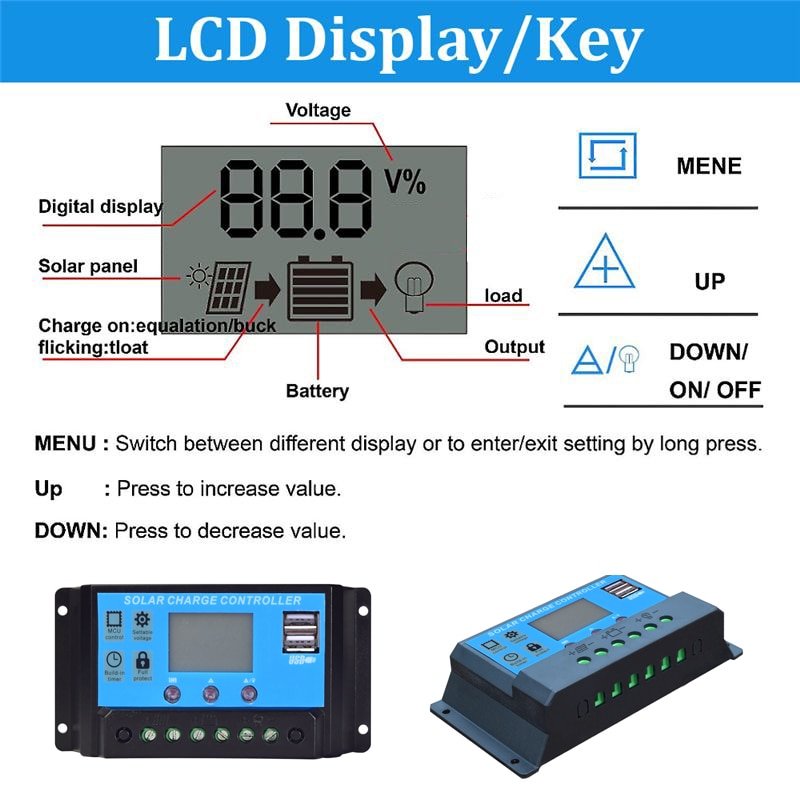

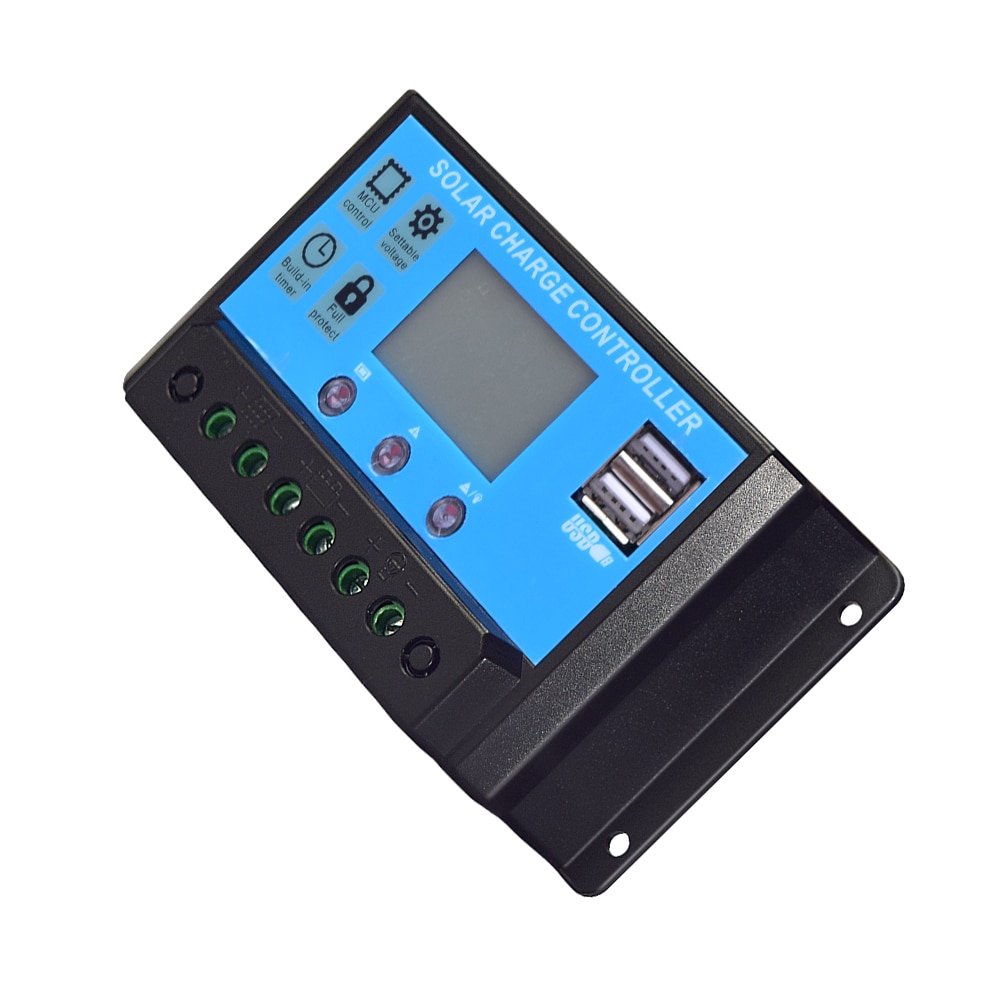

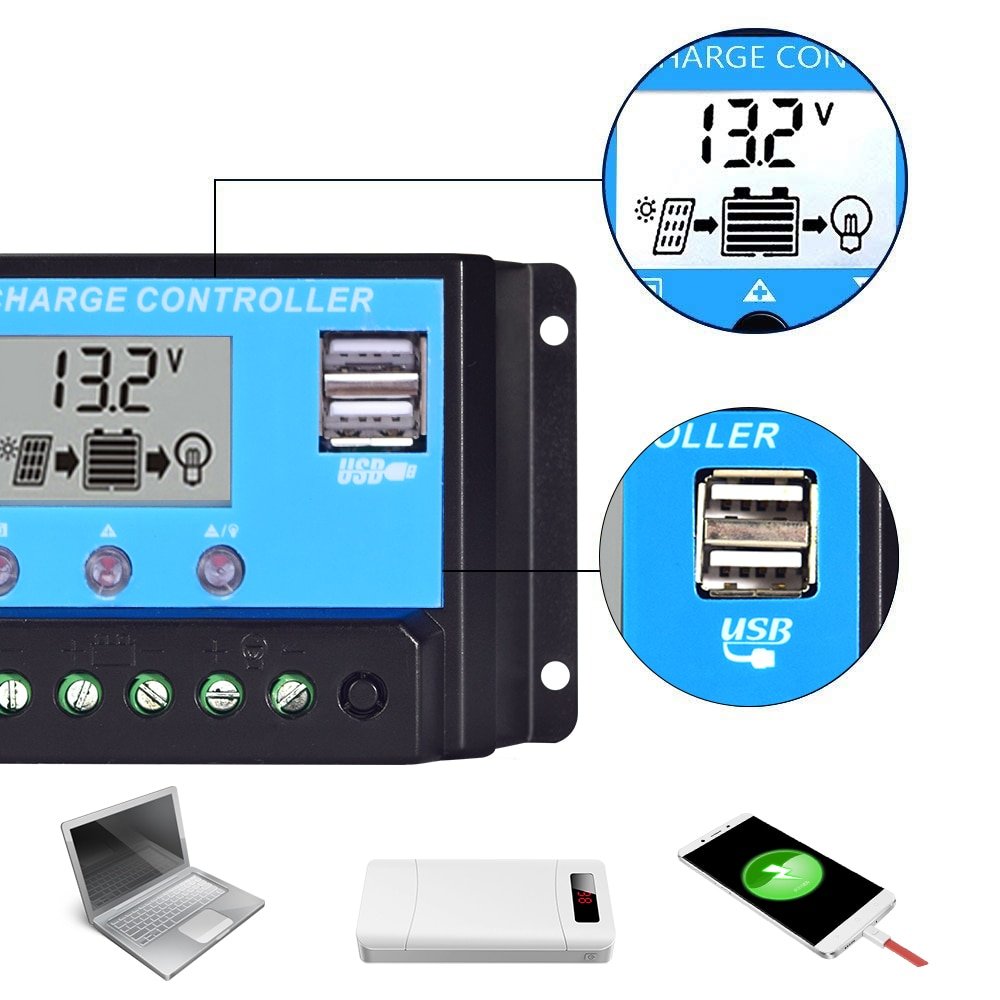

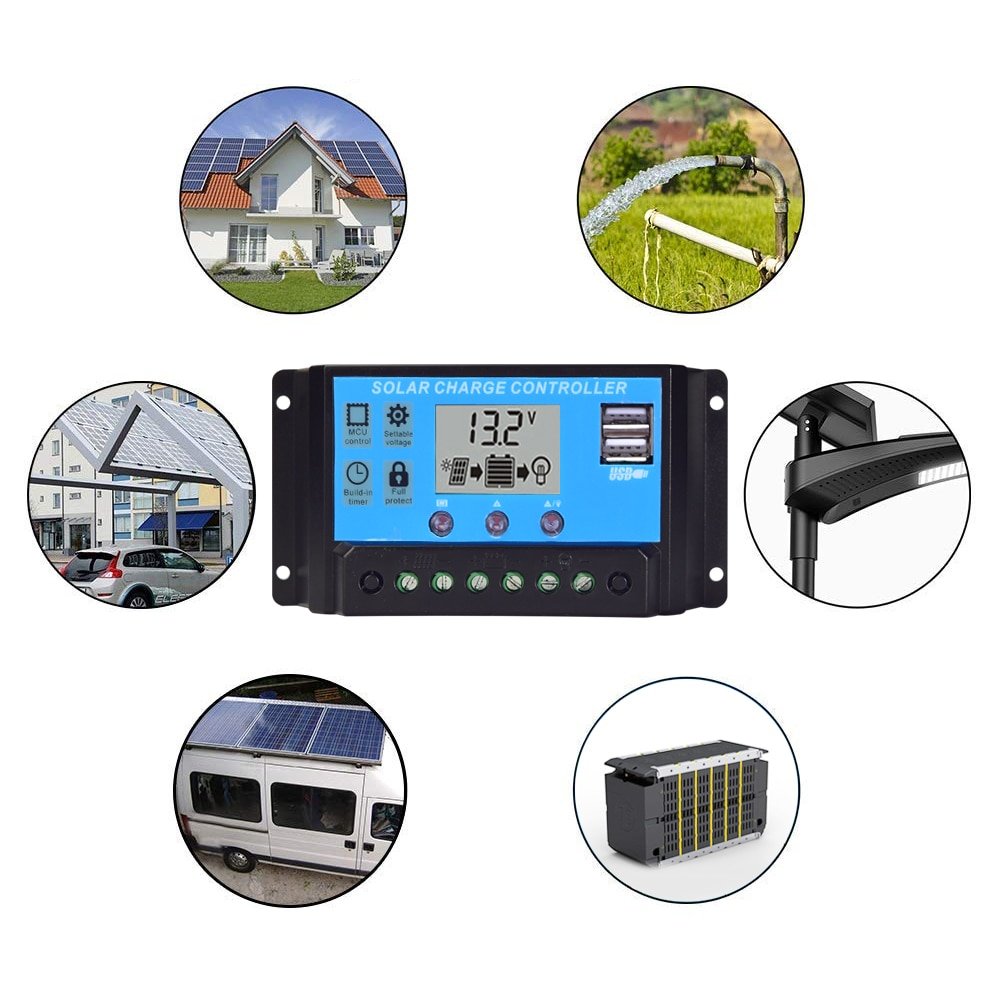

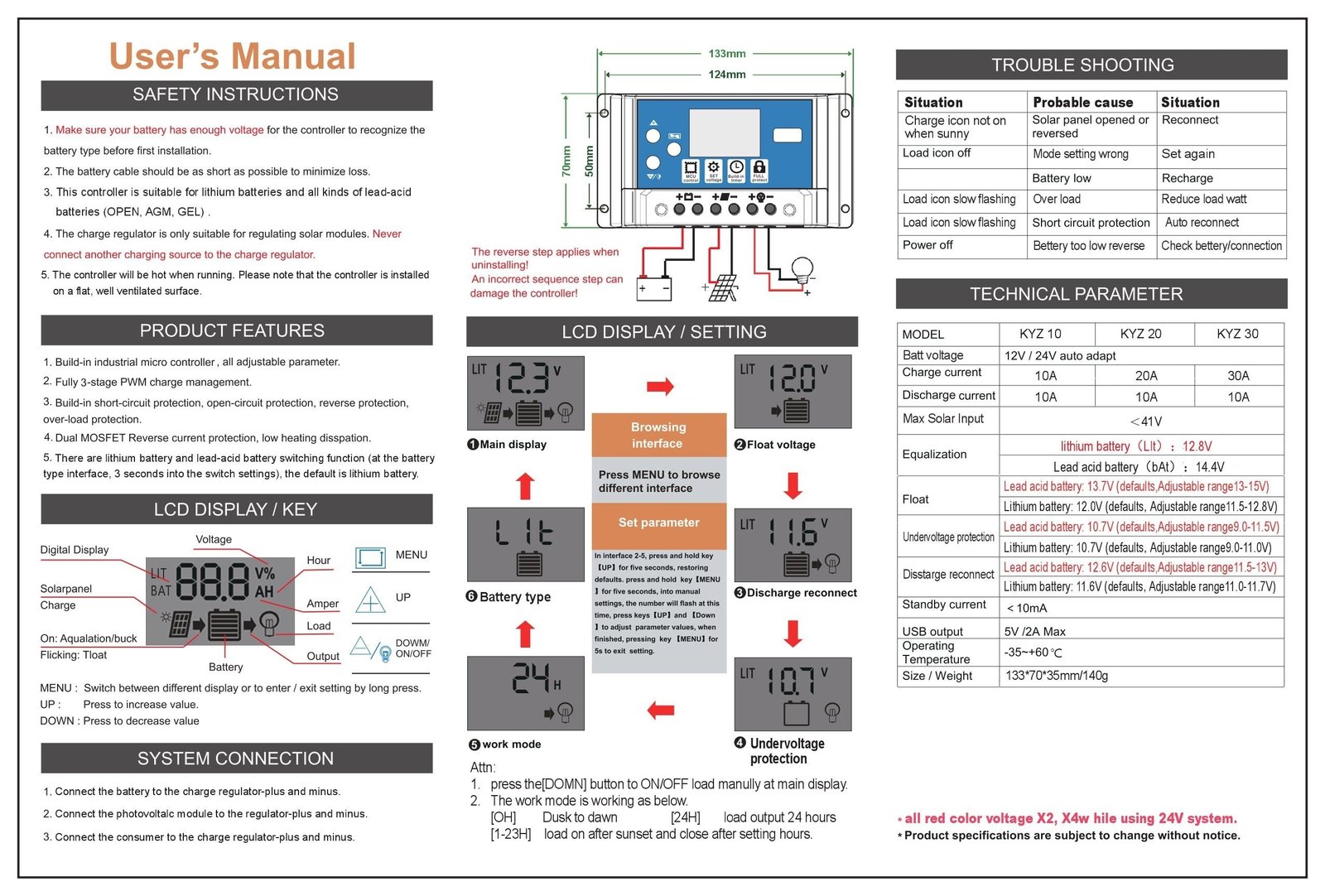

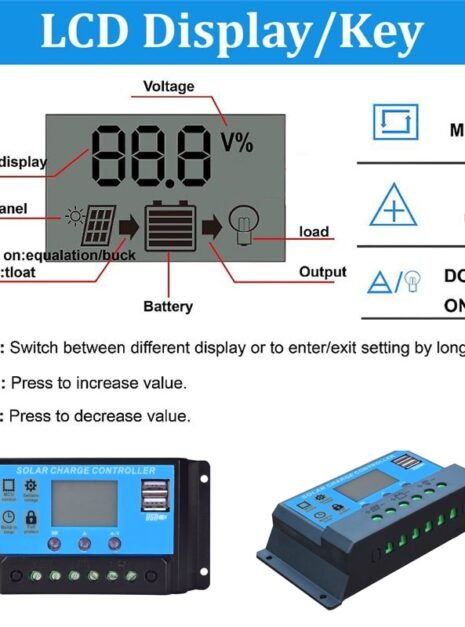

Specification of 12V/24V 20A Controller:

• Material: ABS;
• System voltage: 12V/24V adaptive;
• Rated charge/discharge current: 20A;
• Maximum pv voltage: 40V;
• Floating charging voltage: 13.7v / 27.4v; 6. Cut-off voltage of discharge: 10.7v / 21.4v;
• Discharge recovery voltage: 12.6v / 25.2v;
• Standby current: < 20mA;
• USB output: 5V/2A Max;
• Working Temperature:: – 35 ℃ ~ ~ + 60 ℃;
• Size: 133x70x35mm;
• Weight after packaging: 132g

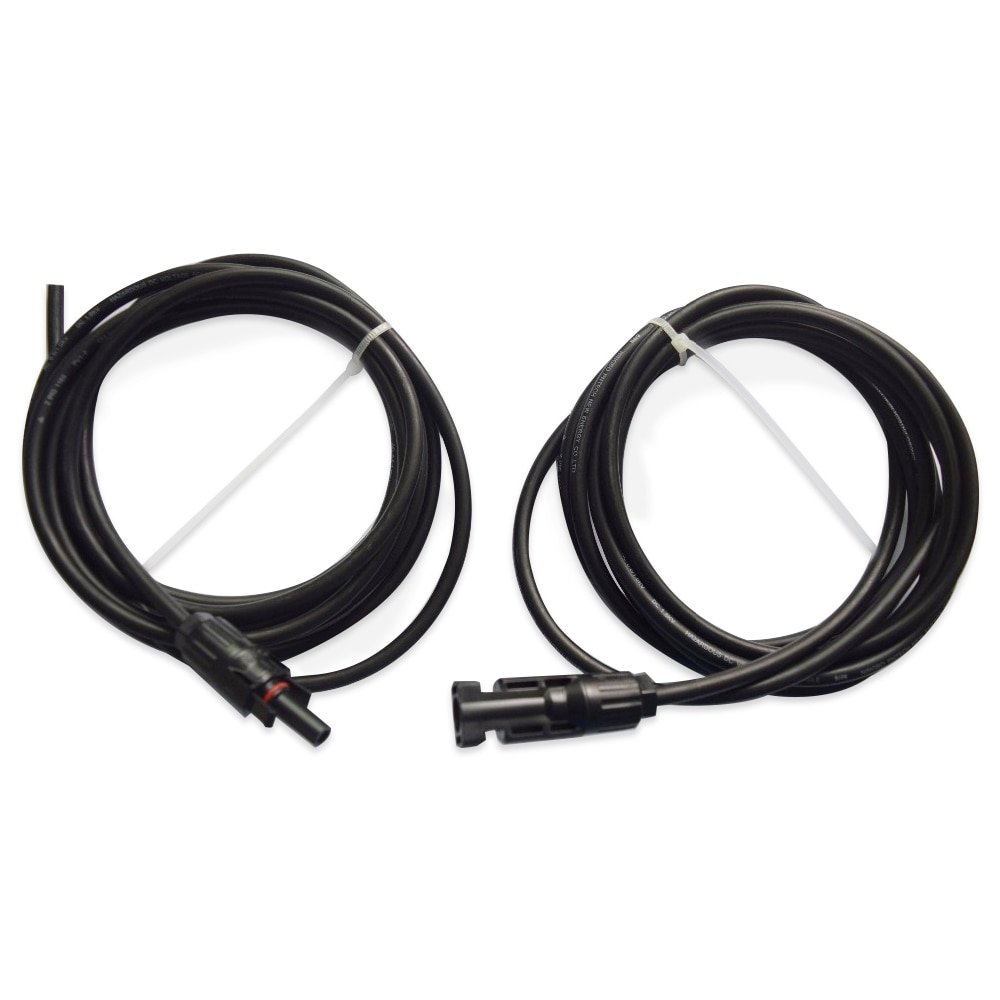

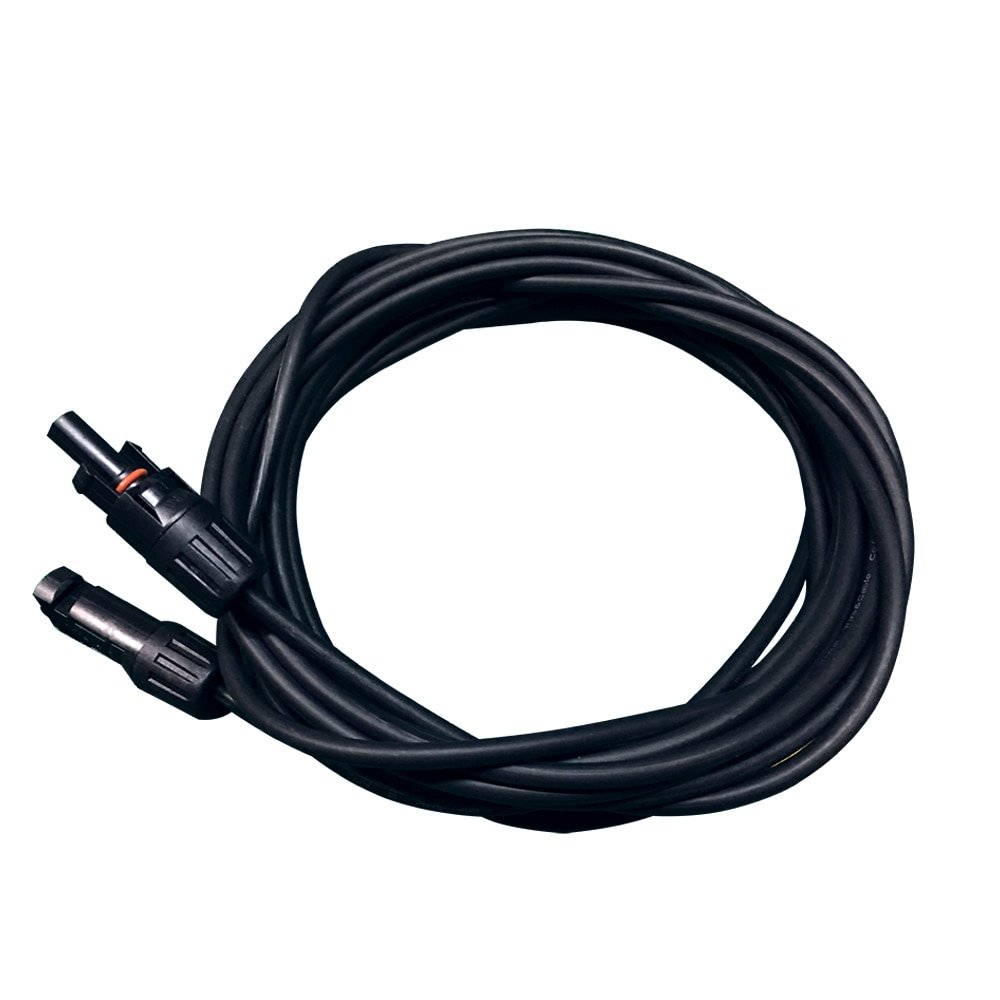

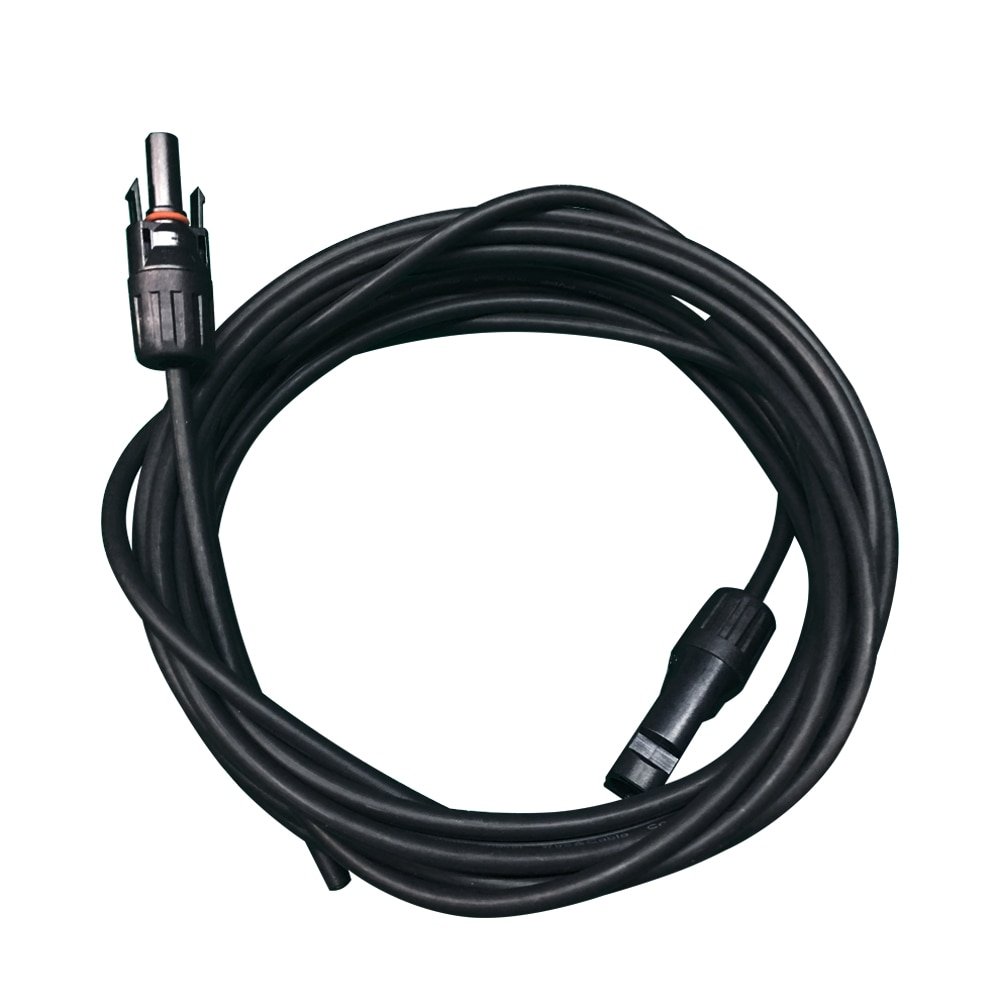

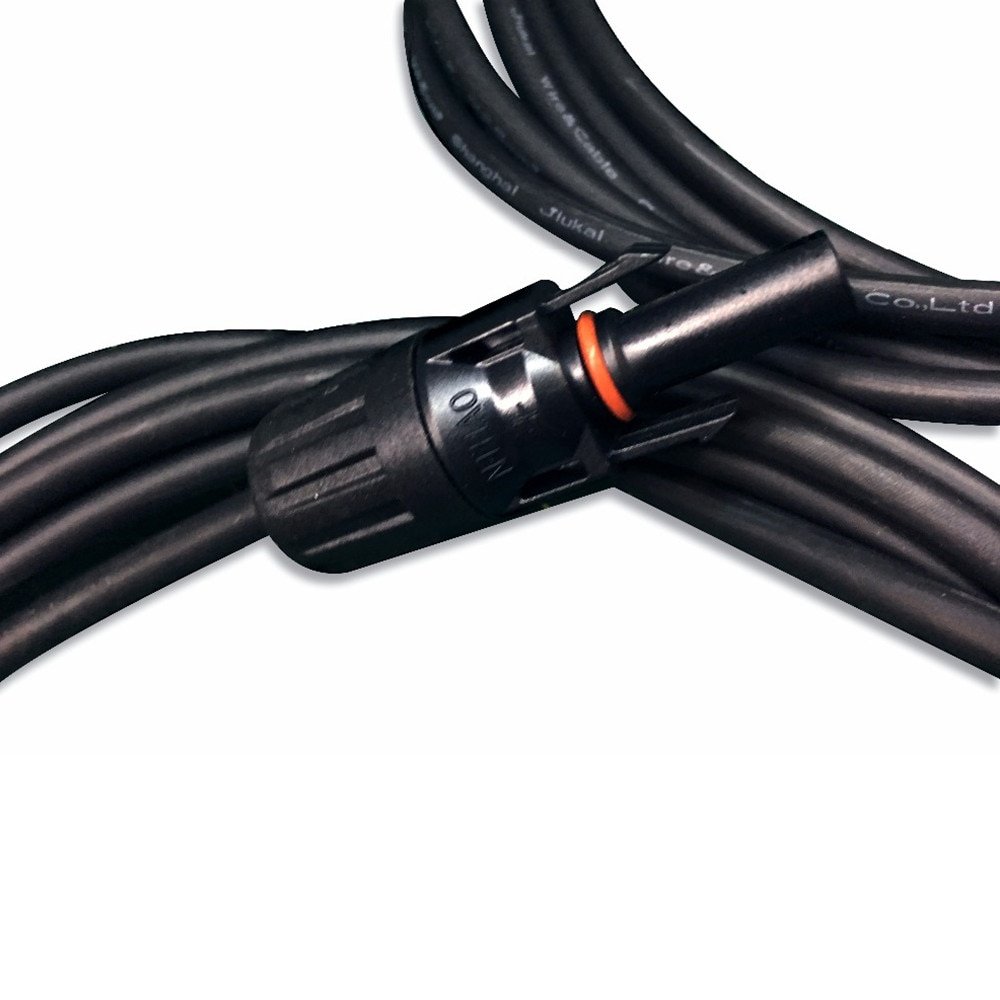

PV Solar Panel Connector:

• Model: 2.5mm2
• Number of cores: single core multiple strands
• The maximum external diameter of the wire: 5.3 ± 0.2 (mm)
• Nominal cross section: 2.5(mm2)
• Uses: Photovoltaic power generation
• Core material: tinned copper wire
• Product Certification: TUV
• Voltage rating: 0.6/1KV
• Rated voltage: 1000V
• Length: 3M
