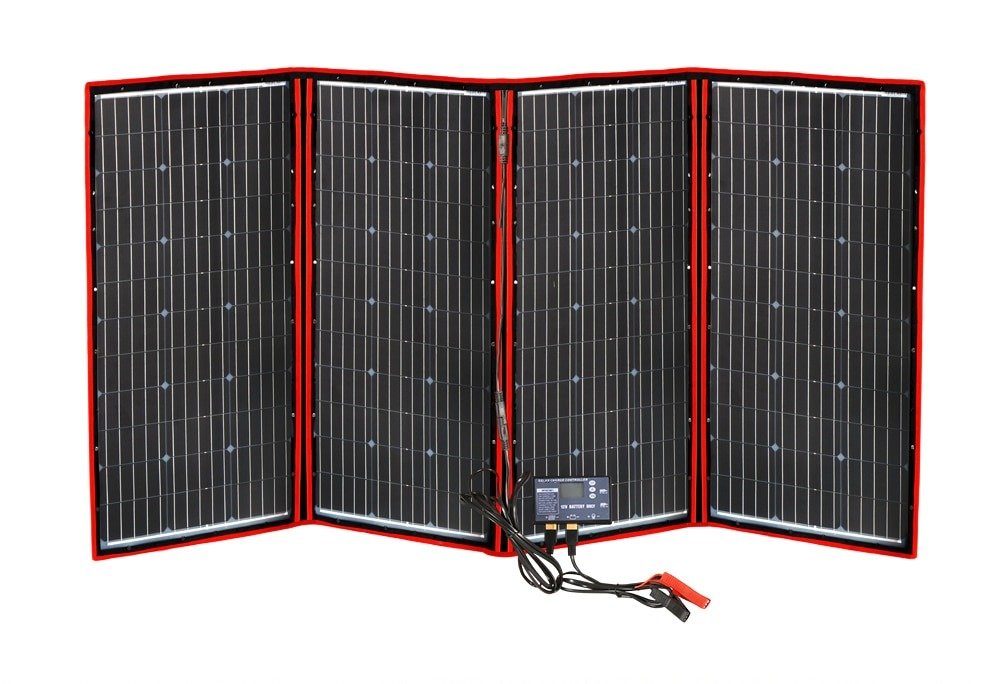

Portable Foldable Solar Panel with 20A Controller

Description

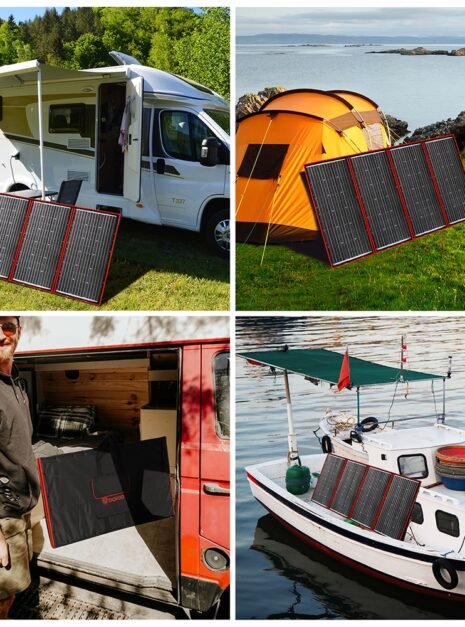

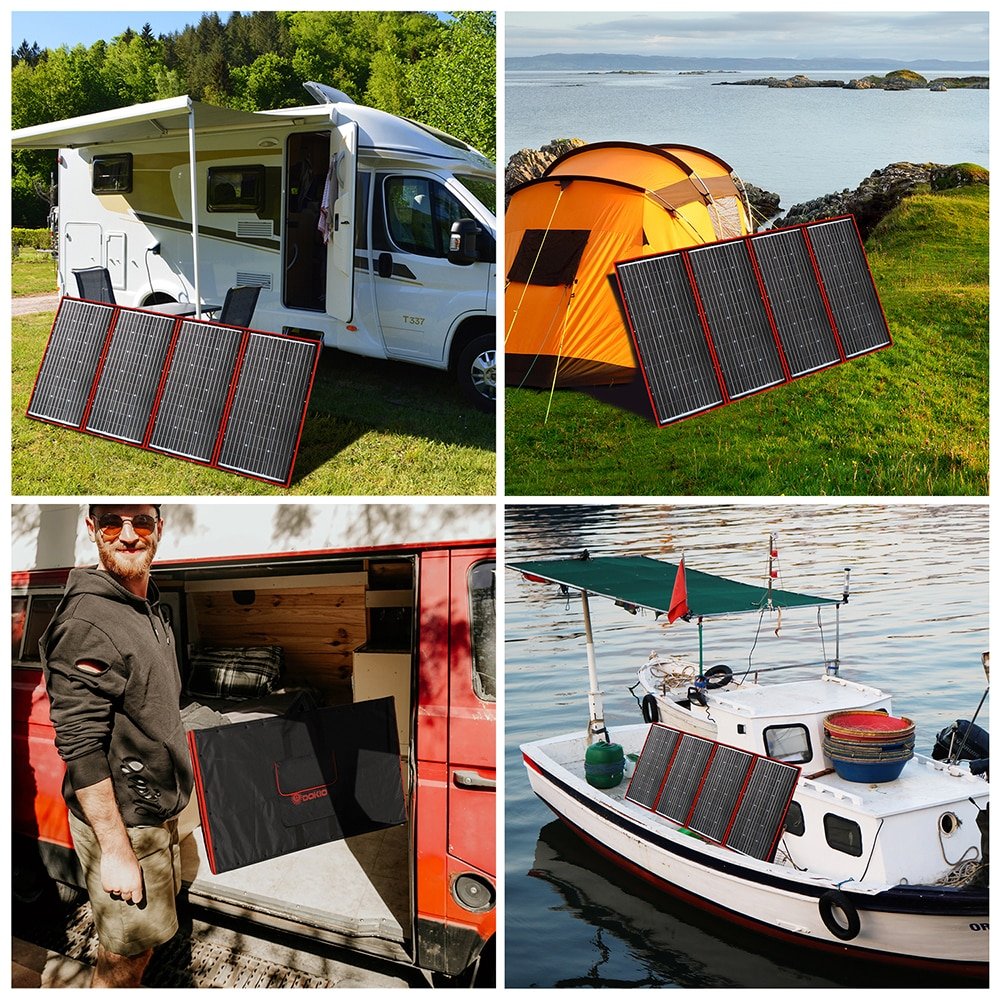

Portable Foldable Solar Panel 18V 100W 200W 300W with 12V 20A Controller For Your Home, Car, Camping, RV, Outdoor Activities

• A simple, “plug & play”, easy-to-install, excellent value-for-money solution for alternative energy production.
• Makes you energy independent during your holidays, campin, outdoor activities…
• Installation possible virtually anywhere

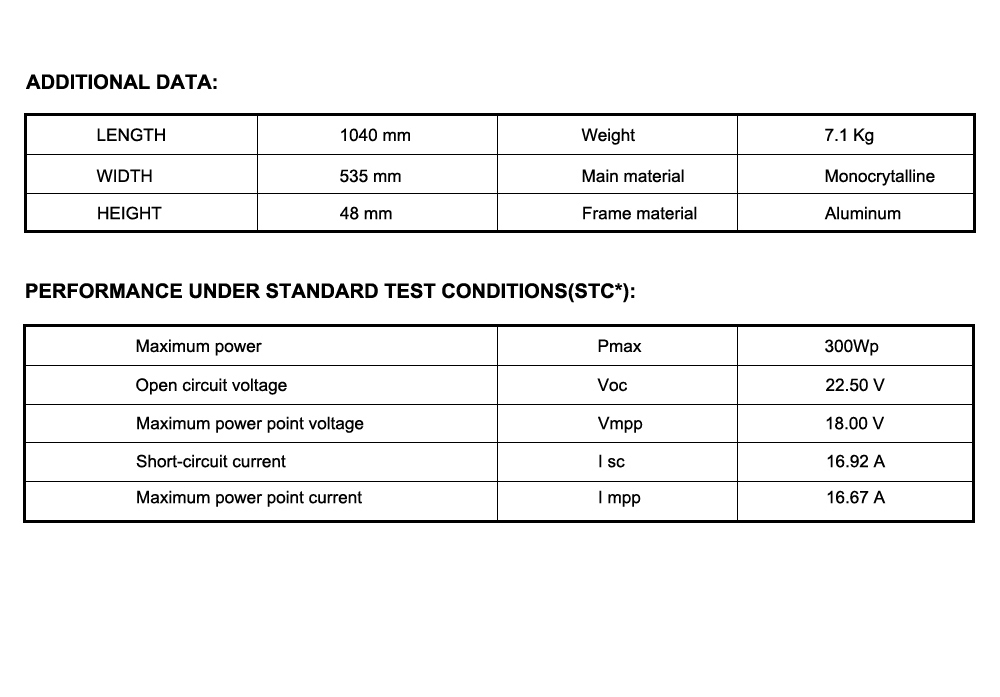

Product Specification:

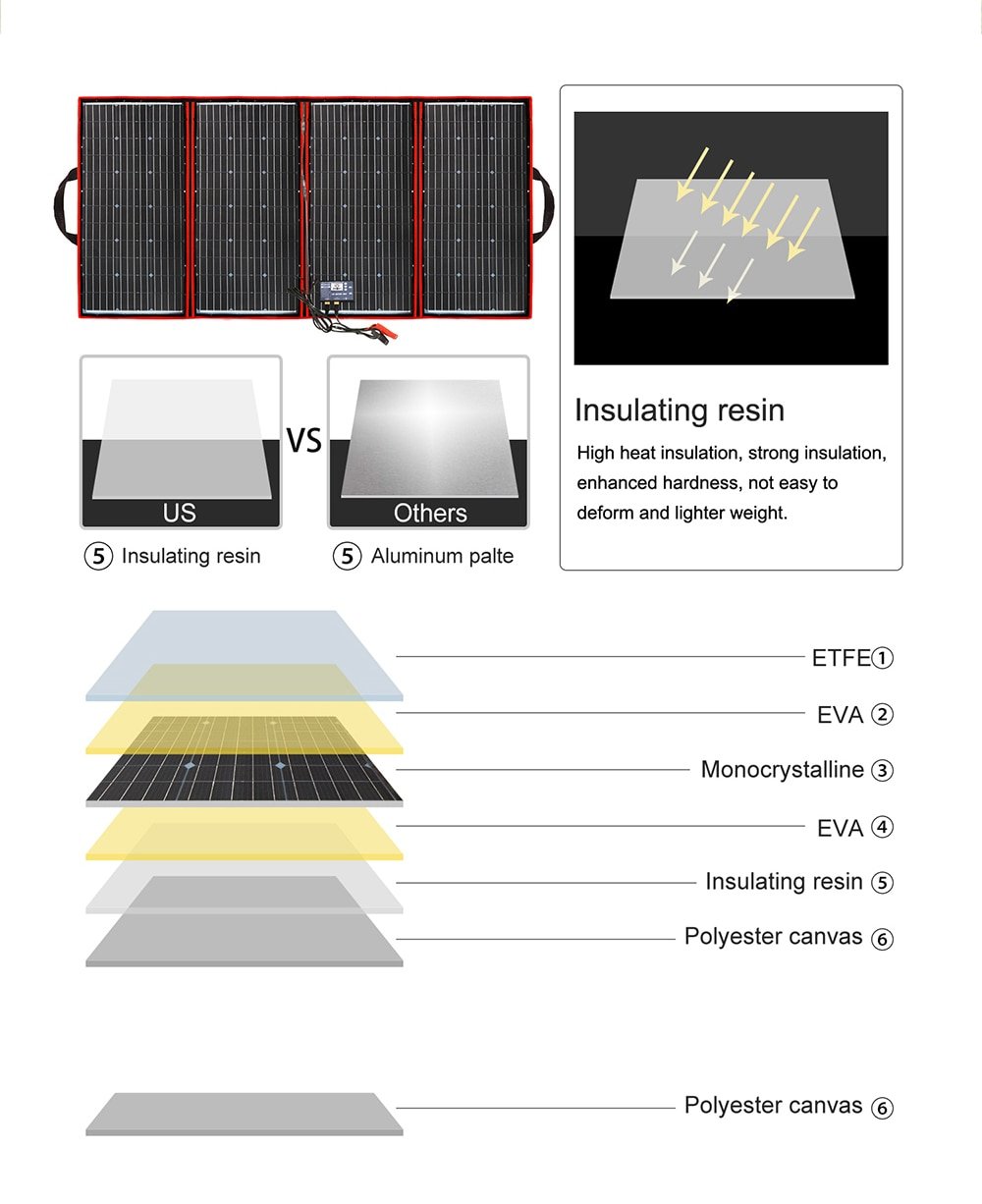

• Material: Monocrystalline silicon
• Maximum Power (Pmax): 300W±3%
• Maximum Power Voltage (Vmp): 18.00V
• Maximum Power Current (Imp): 16.67A
• Open-Circuit Voltage (Voc): 22.50V
• Short-Circuit Current (Isc): 16.92A
• Nominal Operating Cell Temp.(NOCT): -45 to 80℃
• Maximum System Voltage: DC1000V

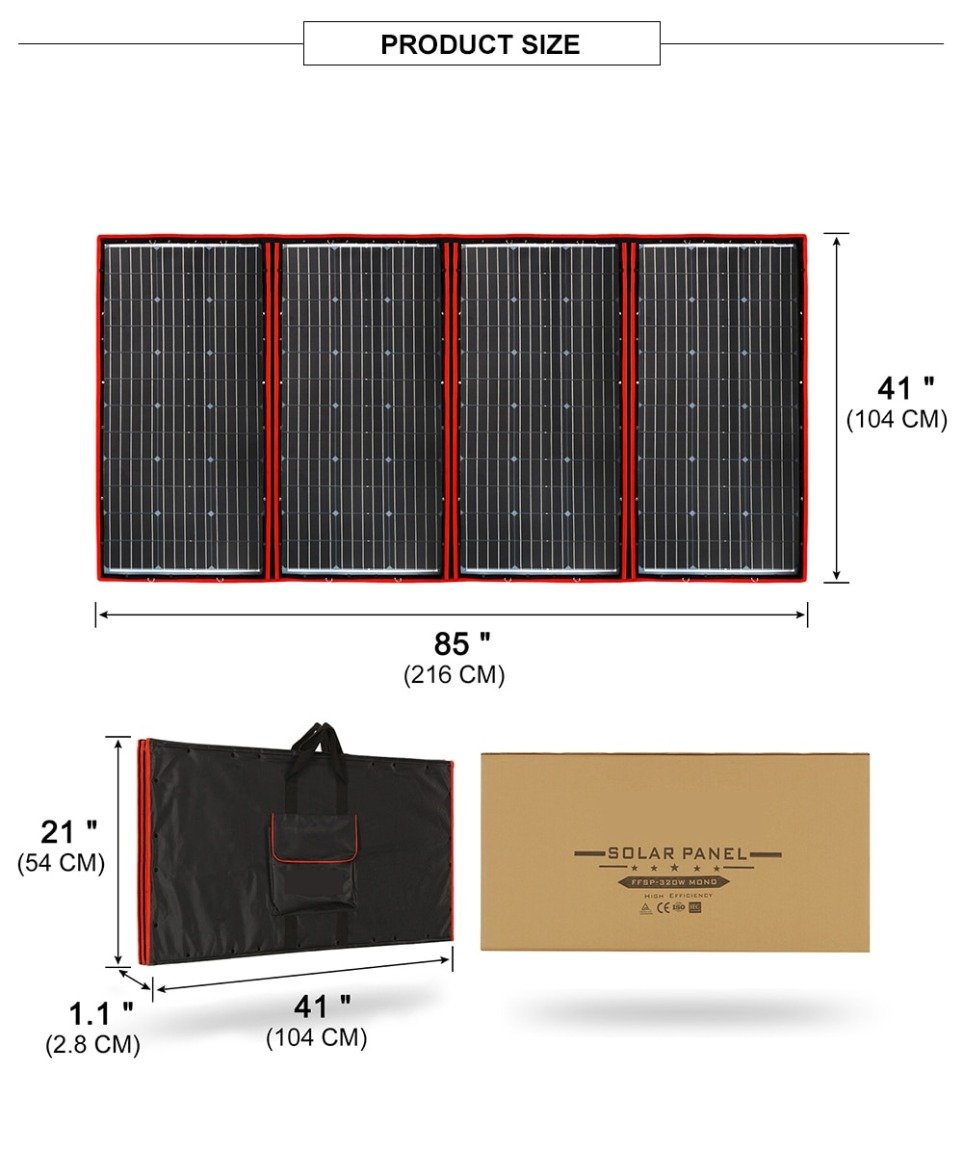

• Foldable Dimension: 39.37×19.69×0.94(in) / 100x50x2.4(cm)
• Expansion Dimension: 78.74×39.37×0.24(in) / 200x100x0.6(cm)
• Net Weight: 7.1kg
• Package Weight: 8.2kg
• Package Size: 108x57x7cm

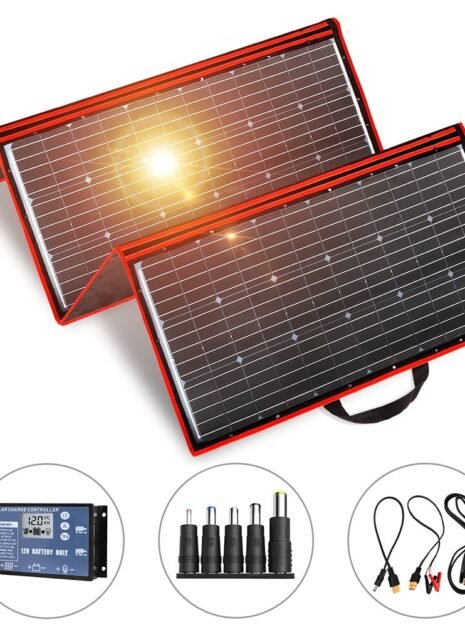

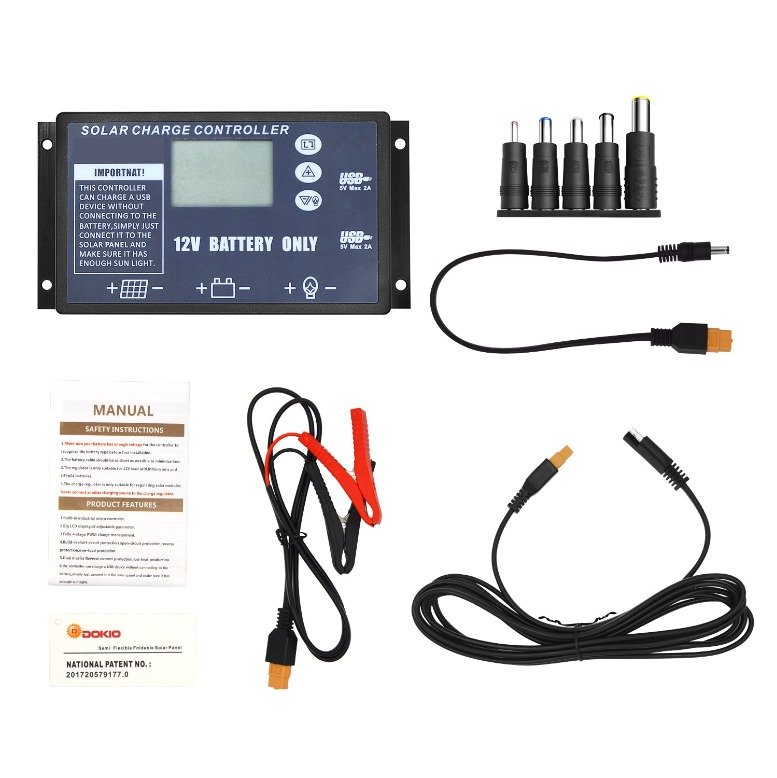

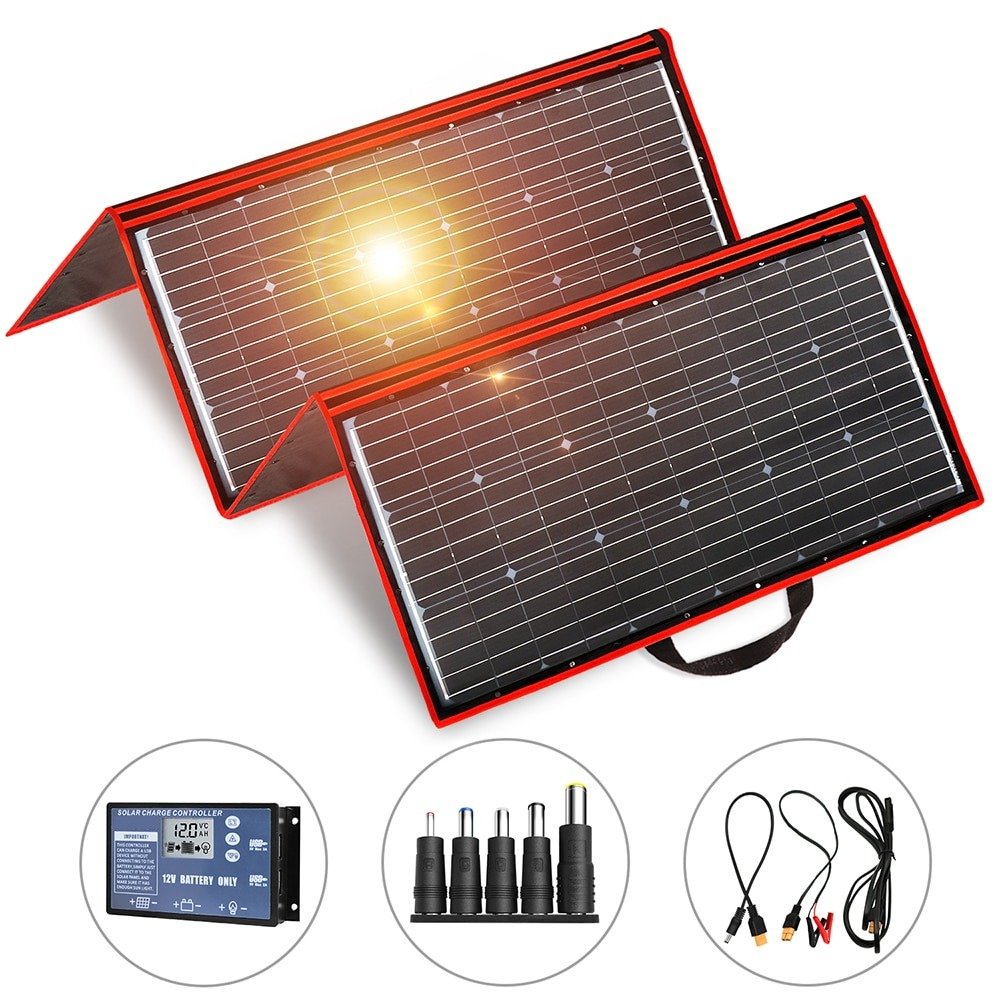

Package List:

• 1x 300W Flexible Foldble Solar Panel
• A total of 4M long cable with alligator clips
• 1x 20A 12V Controller
• 1x English User Manual

Please note:

• For field connections, use minimun No.12AWG copper wires insulated for a minimum 90℃
• Controller support 12V lead-acid, lithium ions and LiFePO4 battries.
• The controller cannot be used to test solar panels. Under sufficient light conditions, a multimeter should be used for no-load test.

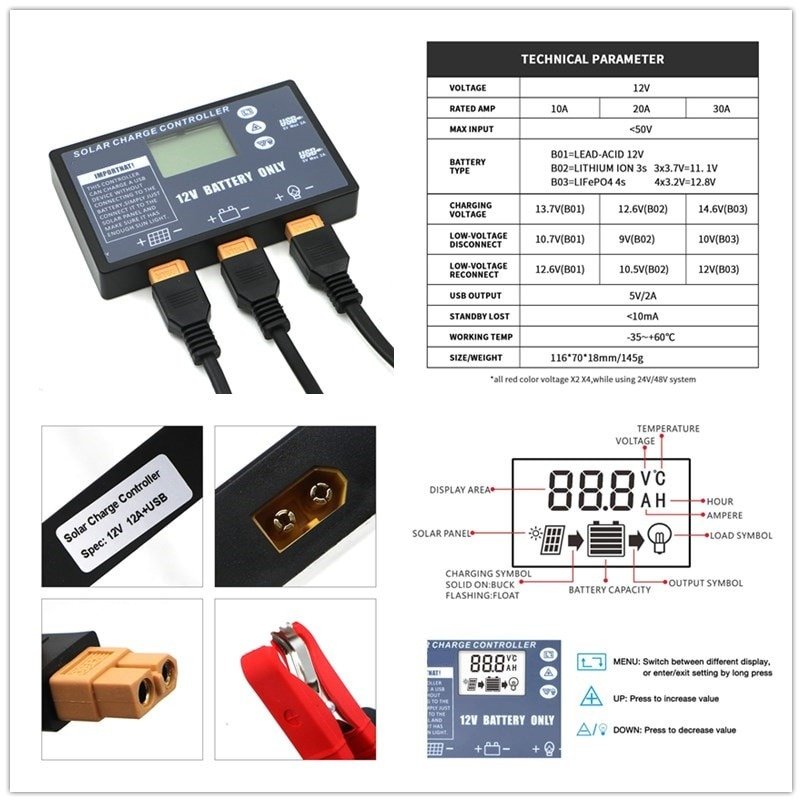

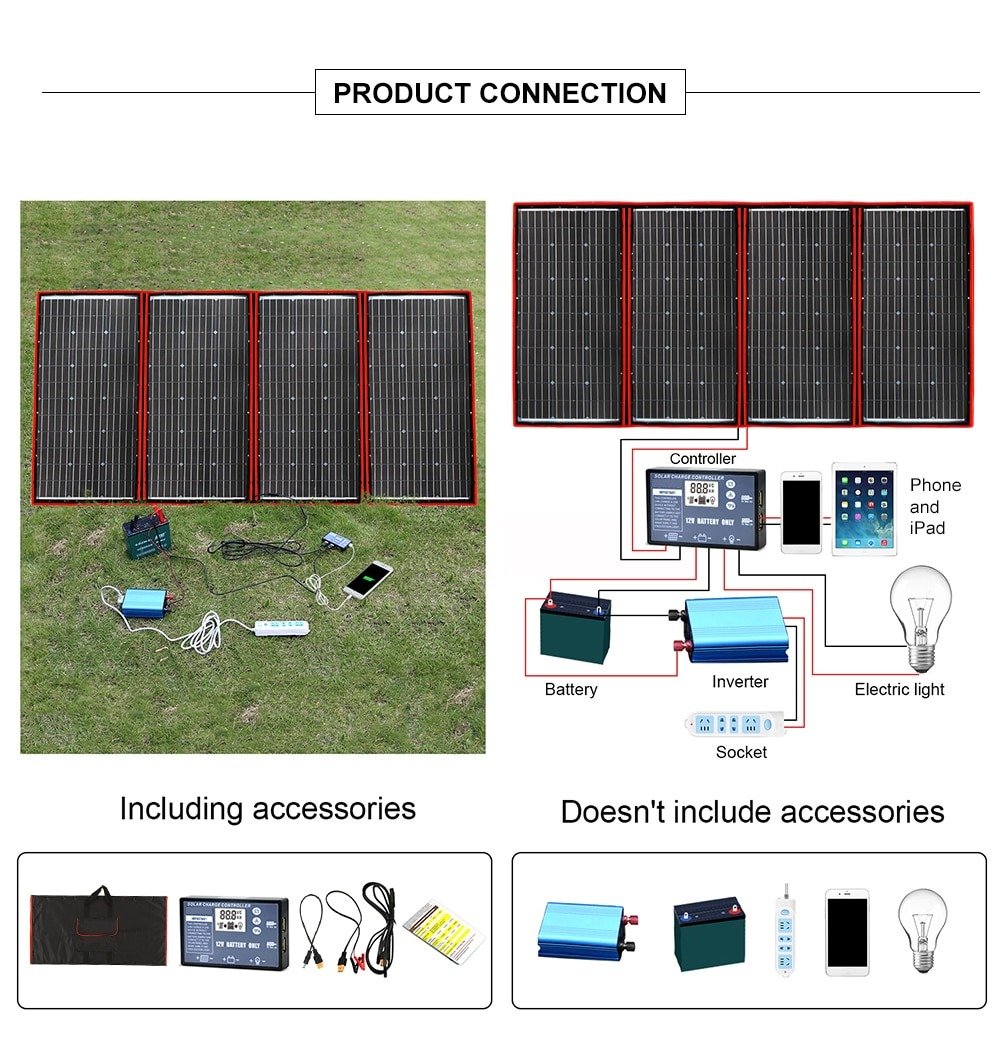

Controller:

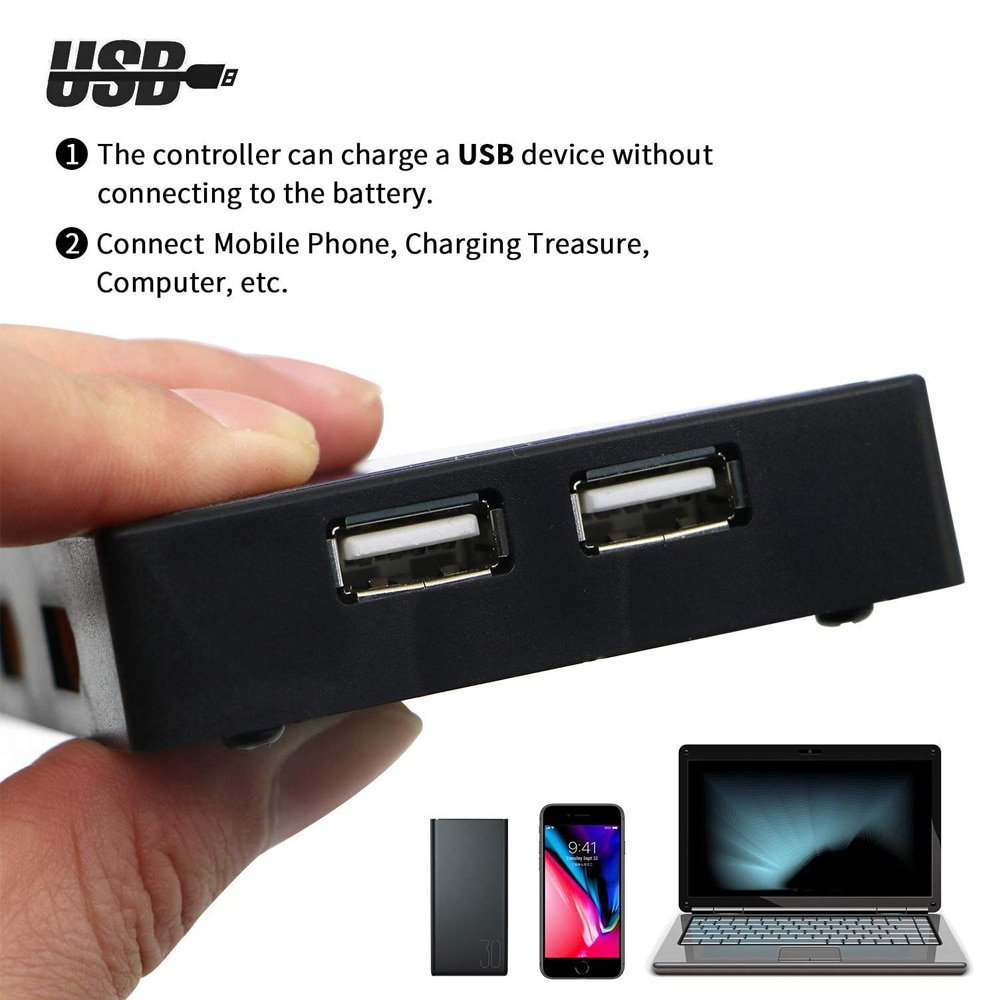

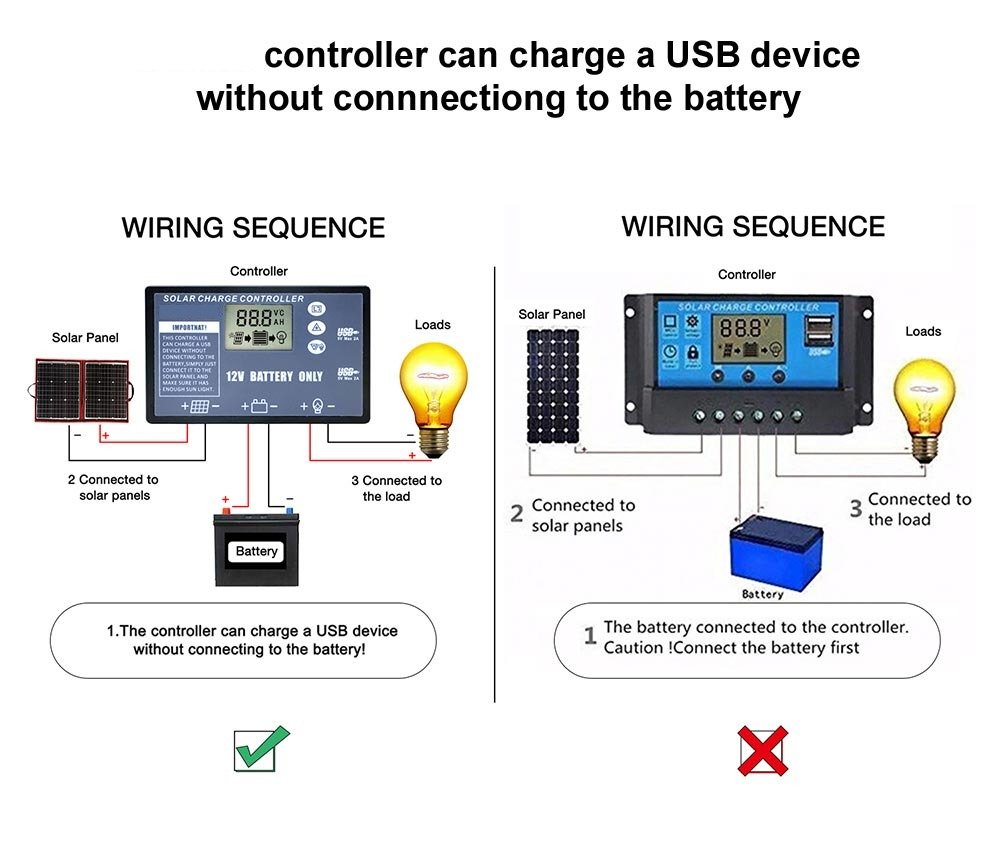

• The USB output of the controller is 5V / 2A.
• Ability to charge mobile phones and iPads.
• If you want to charge your computer, you need to connect the battery.

Maintenance of flexible folding solar panels:

1. In order to avoid friction on the folded surface, a soft plastic film can be added between the contact surface of the panel and the panel.
2. Since the flexible folded solar panels are too light, be careful not to be blown away by the wind when used outdoors.
3. Flexible folding solar panels have waterproof function but cannot be immersed in water.
4. As the development of FFSP (Flexible Foldable Solar Panel) is based on portable functionality, it is supplemented by fixed installation. All of our materials are basically waterproof and moisture-proof, but long-term immersion is strictly prohibited, especially the surface cloth, which will quickly degrade due to the use of chemical agents such as salt water, which need to be recovered immediately after use and stored in a cool and dry place.
