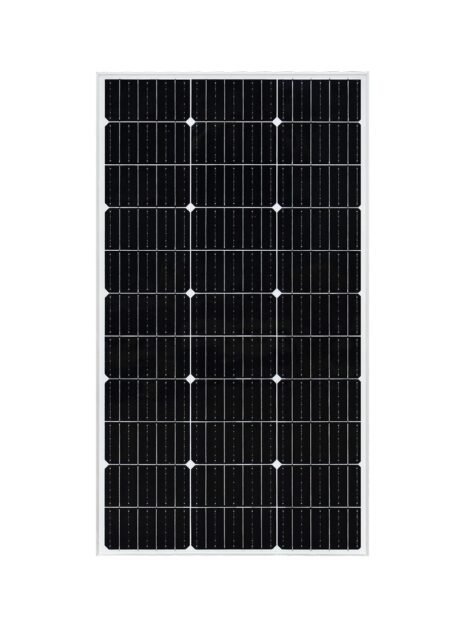

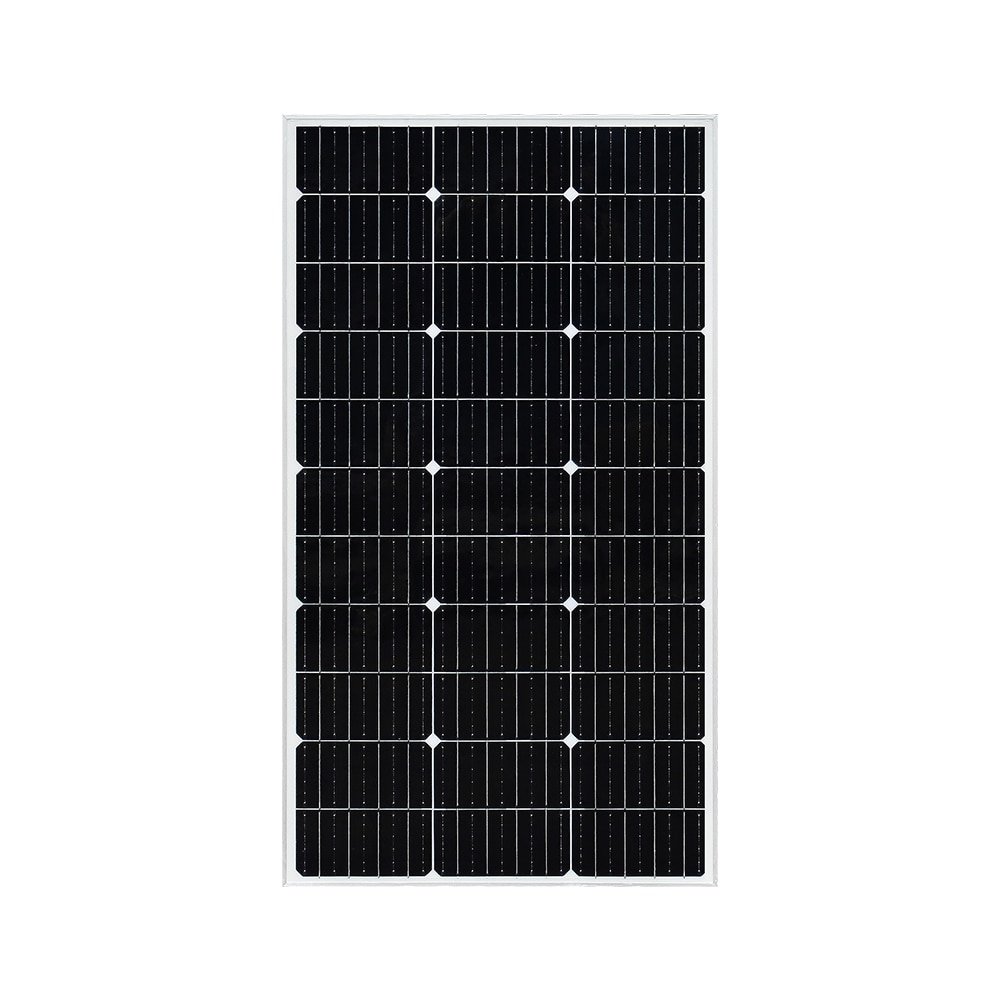

1000W Solar Panel Kit With Frame 110V 220V Inverter and Controller

Description

1000W Solar Panel Kit With Frame 110V 220V Inverter and Controller For Camping, RV, Hiking, Outdoor Using

• Basic component for off-grid applications, such as RVs, trailers, boats, sheds, and cabins. Easy to install with Z brackets and pre-drilled holes on the back of panel for fast mounting and securing.

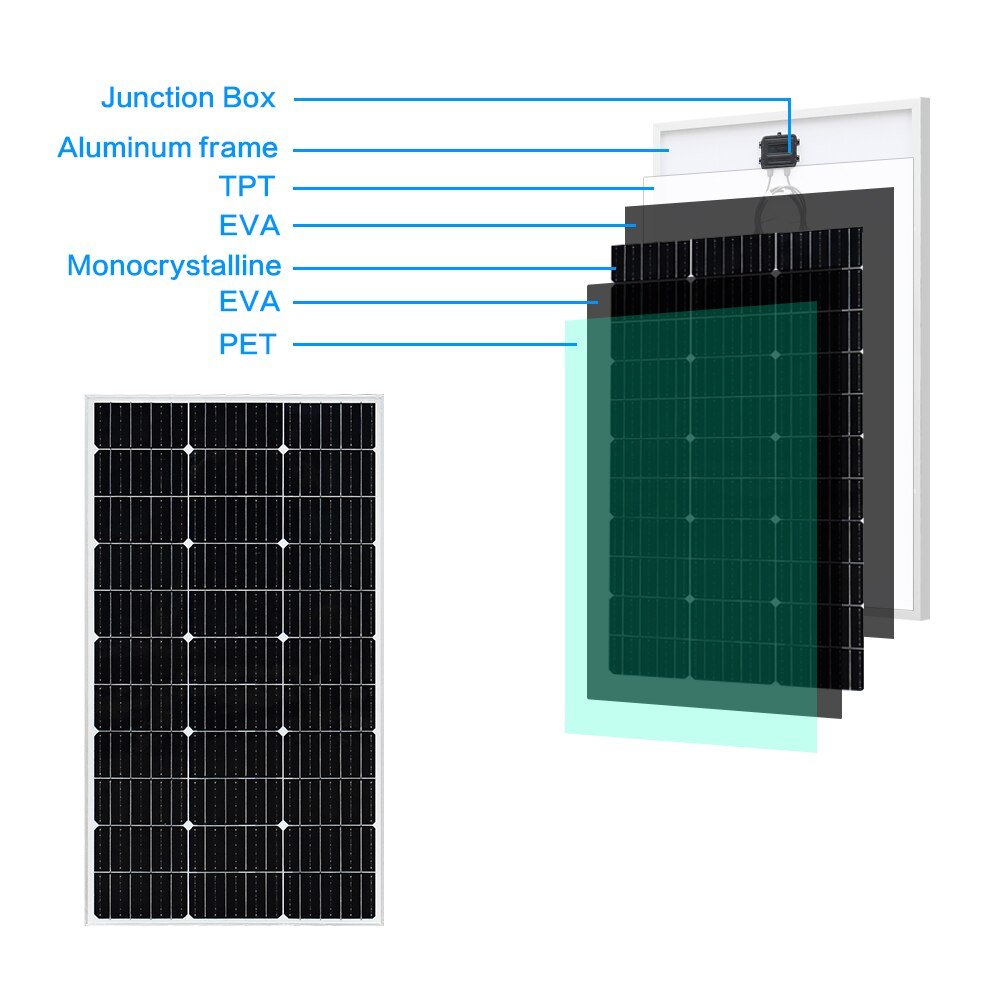

• Advanced encapsulation material with multilayered sheet laminations to enhance cell performance and provide a long service life.
• Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa) .
• By-pass diodes are pre-installed in waterproof IP-65 rated juncton box to minimize power drop caused by shade and ensure excellent performance in low-light environments.

Product Specification:

• Maximum power (Pmax): 100W
• Output tolerance: ± 5%
• Maximum system voltage: 1000V DC
• Open circuit voltage (Voc): 19.8V
• Short circuit current (Isc): 6.06A
• Maximum power voltage (Vmp): 16.5V
• Maximum power current (Imp): 5.55A
• Cell Efficiency: 21%
• Operating temperature (NOCT): 45±2℃
• Temperature range: -40℃～+80℃
• Cell Material: Monocrystalline silicon
• Number of cells: 33pcs
• Weight: 2500g
• Size: 970x530x25 mm
• Back film color: White

Packing Listing by Option:

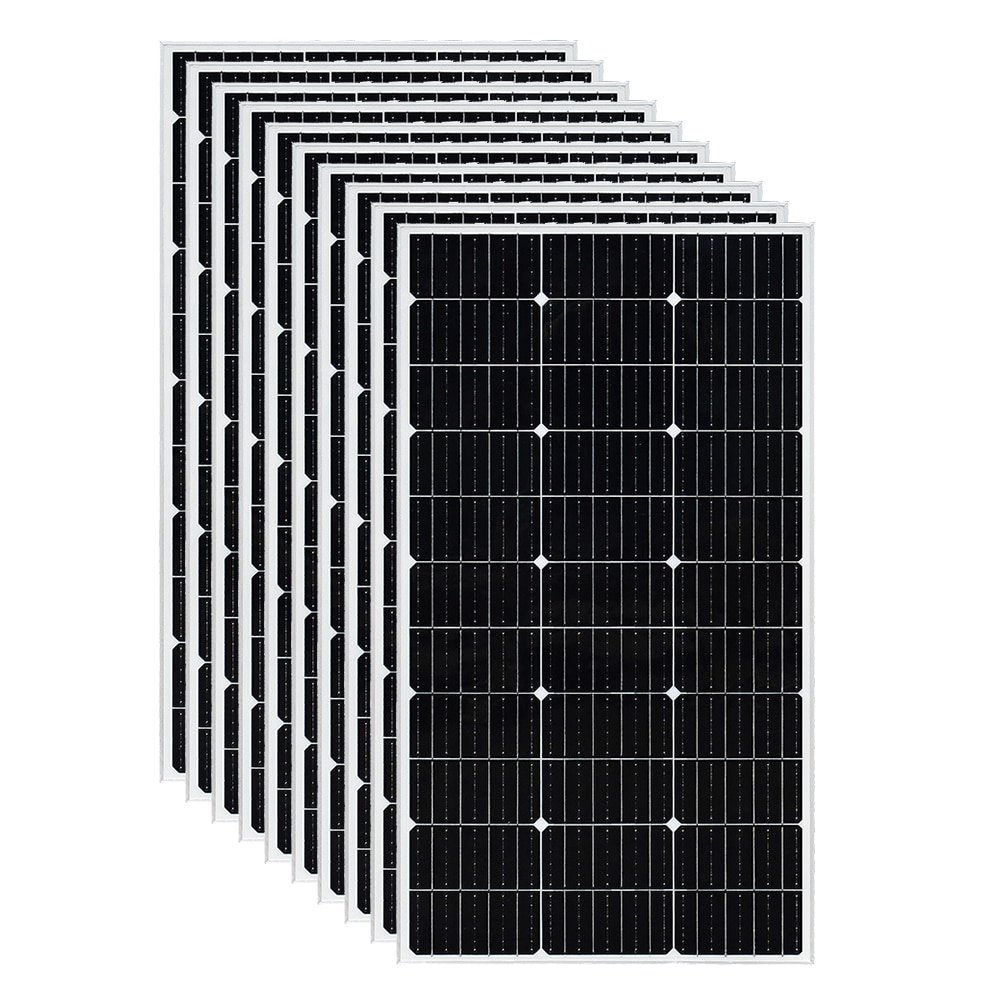

1. 1000W Solar Panel

• 10pcs 100W Solar Panel

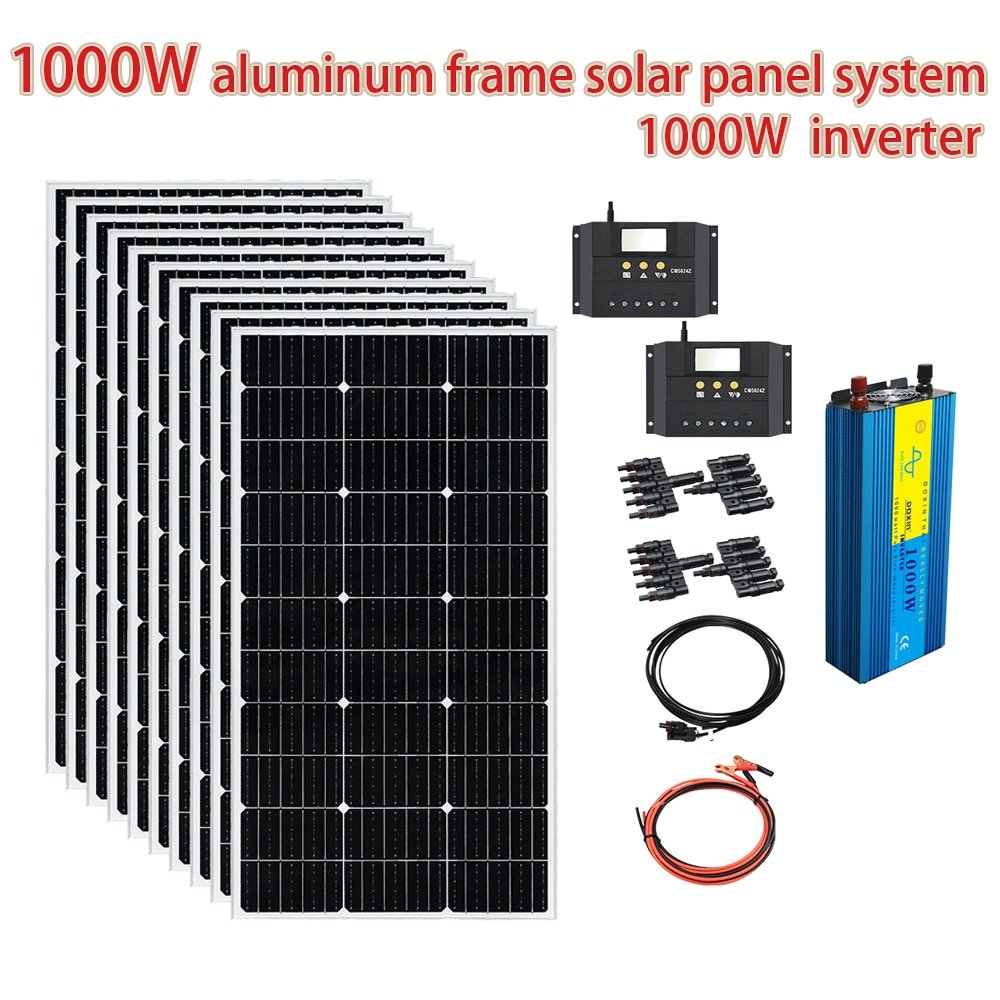

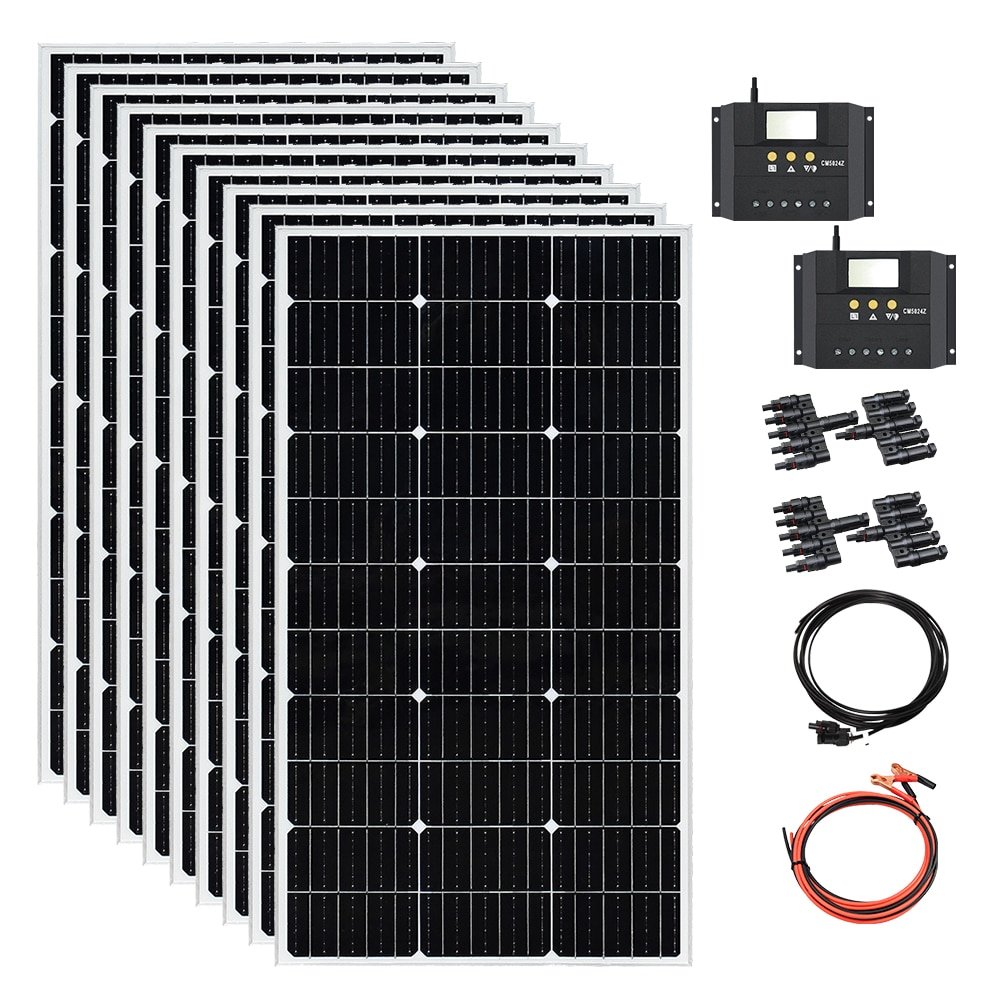

2. 1000W Solar Kit

• 10pcs 100W Solar Panel
• 2pcs 12V/24V 50A PWM Solar Charge Controller
• 2 sets Solar Extention Cable with Female and Male Connectors
• 2 sets  Solar Extention Cable with Alligator clips
• 2 sets Y Branch in parallel Connector (1 male to 5 female and 1 female to 5 male)

3. 12V to 110V Solar System

• 10pcs 100W Solar Panel
• 2pcs 12V/24V 50A PWM Solar Charge Controller
• 2 sets Solar Extention Cable with Female and Male Connectors
• 2 sets Solar Extention Cable with Alligator clips
• 2 sets Y Branch in parallel Connector (1 male to 5 female and 1 female to 5 male)
• 1 set 12V 110V 1000W inverter

4. 12V to 220V Solar System

• 10pcs 100W Solar Panel
• 2 pcs 12V/24V 50A PWM Solar Charge Controller
• 2 sets Solar Extention Cable with Female and Male Connectors
• 2 sets Solar Extention Cable with Alligator clips
• 2 sets Y Branch in parallel Connector (1 male to 5 female and 1 female to 5 male)
• 1 set 12V to 220V 1000W Inverter
