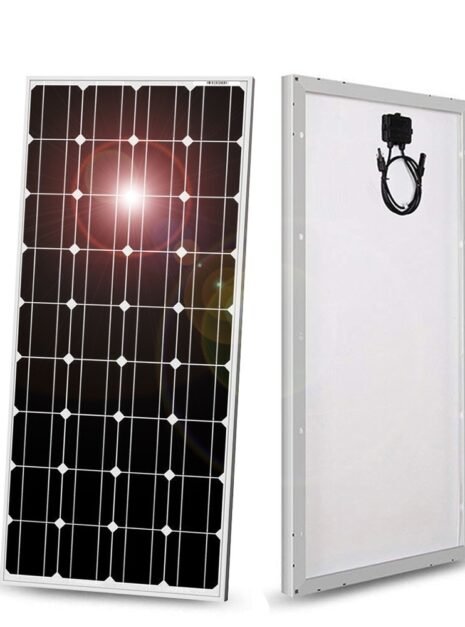

100W 12V Solar Panel with Frame and Controller

Description

100W 12V Solar Panel with Frame and Controller For Your Home, Boat, Camper, Shed, etc.

• A simple, “plug & play”, easy-to-install, excellent value-for-money solution for alternative energy production.
• Makes you energy independent.
• Installation possible virtually anywhere.
• Sets you free from rising electricity charges.
• An easy alternative for the rural areas.
• Environment friendly.
• Adds to the betterment of the planet.
• Durable quality.

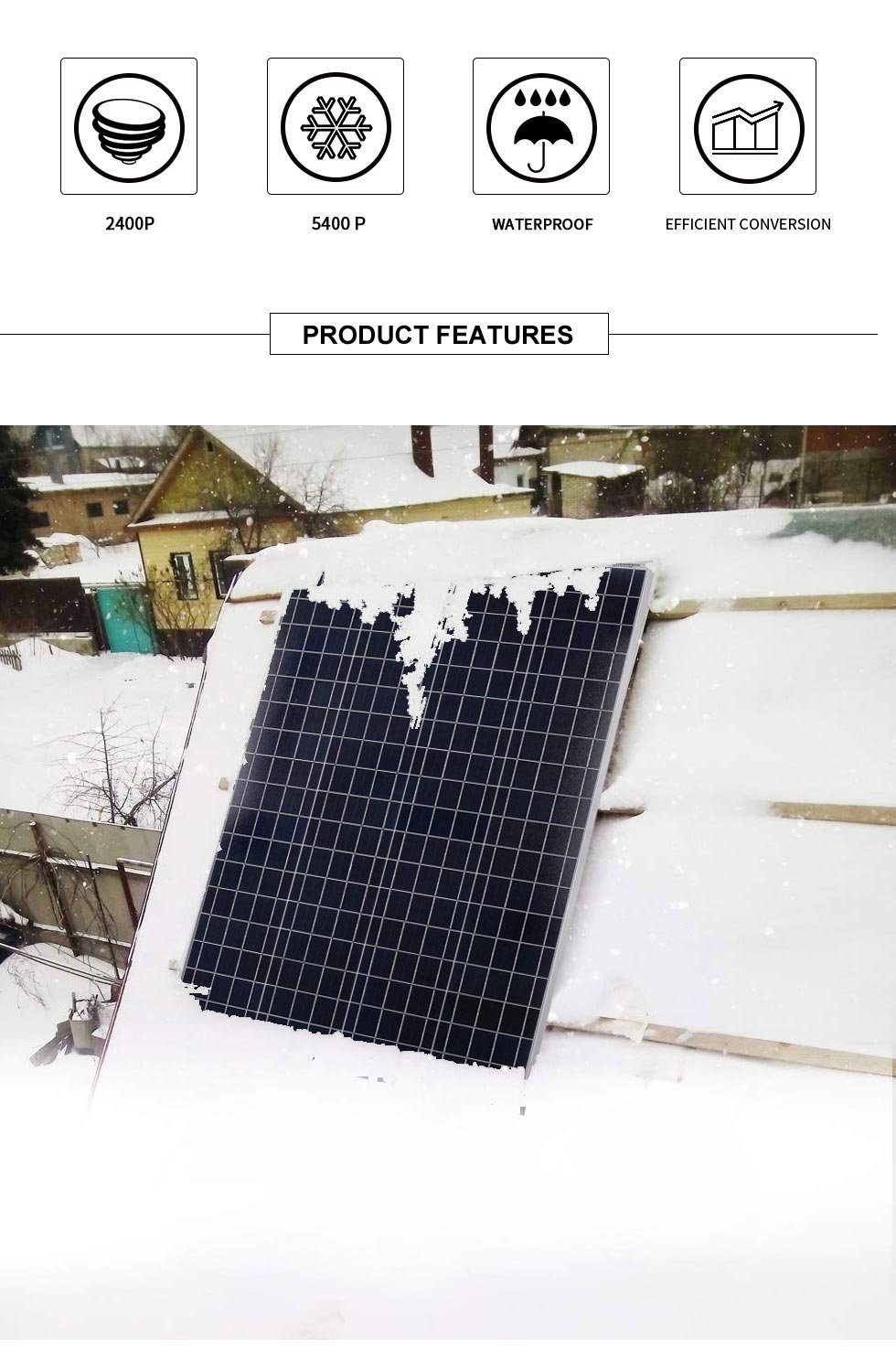

• Wind resistant, waterproof, snow resistant..
• Efficient conversion.
• Widly used.

Product Descriptions by Options:

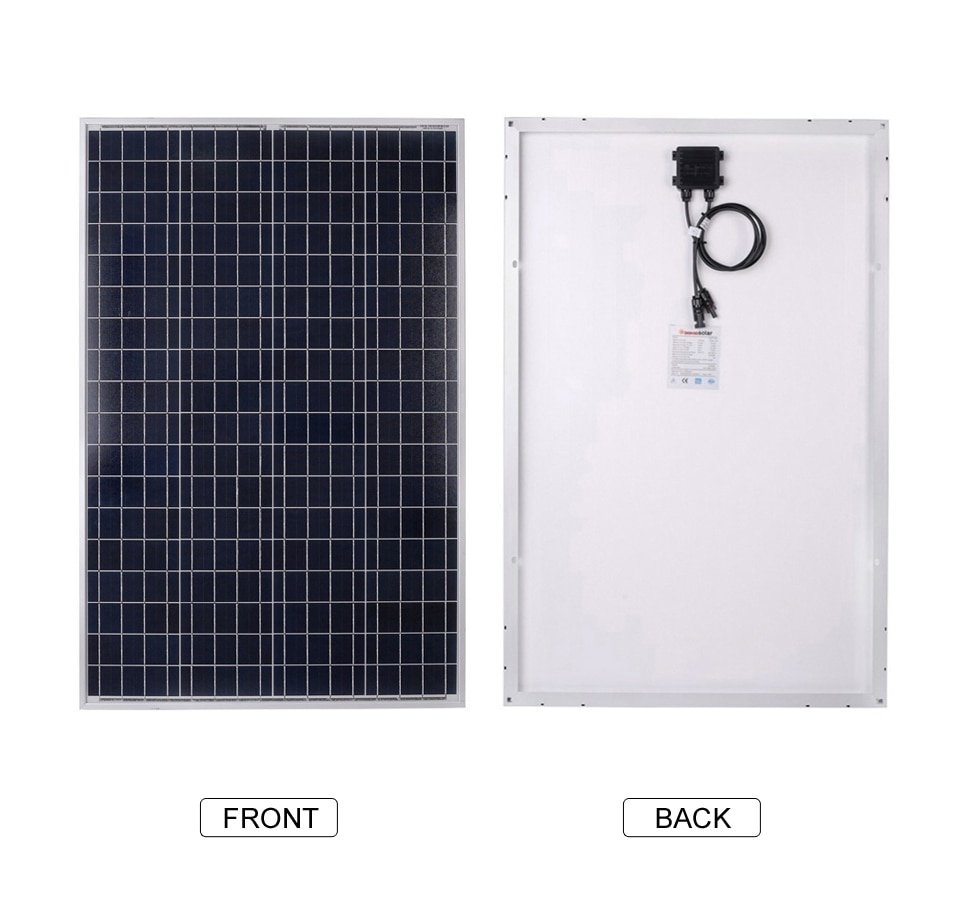

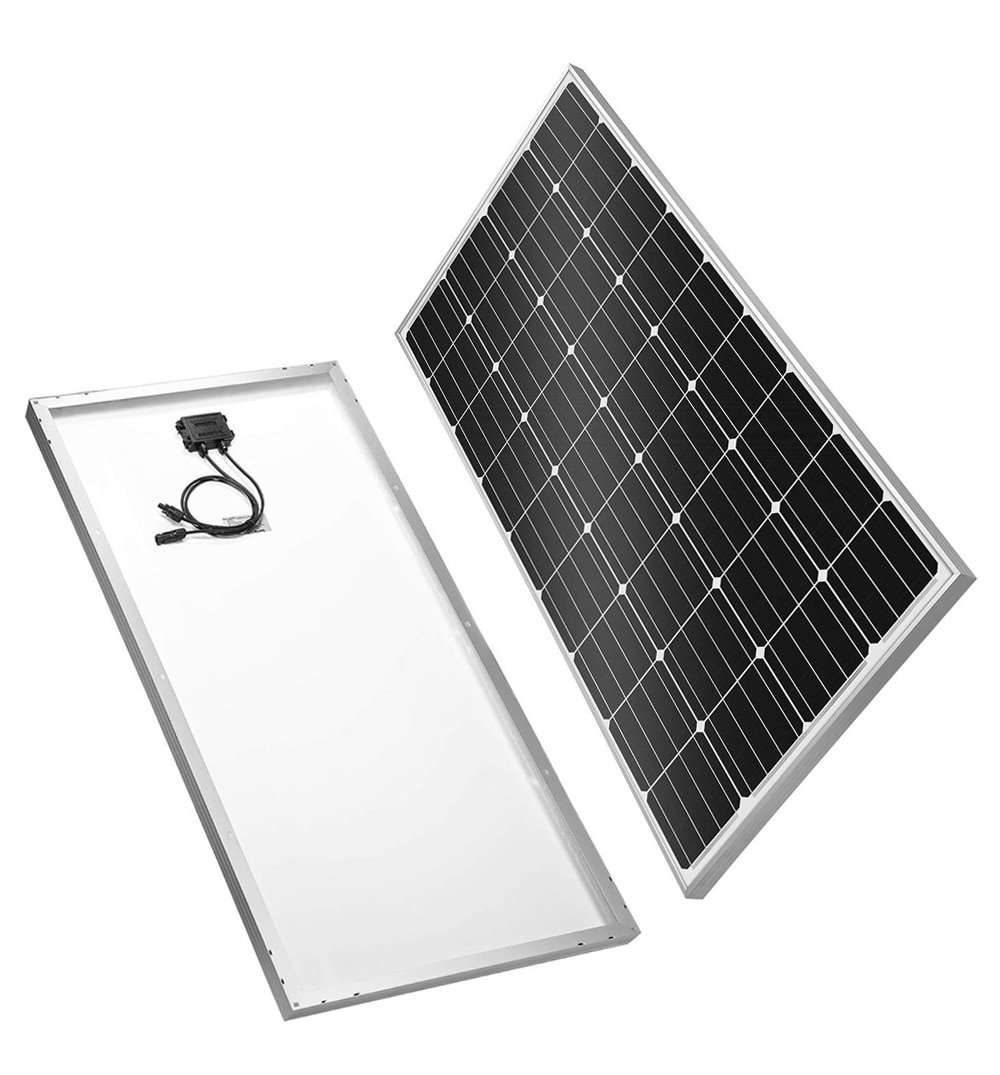

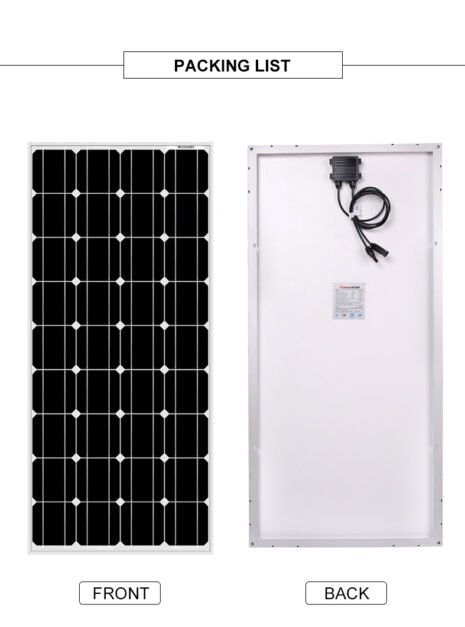

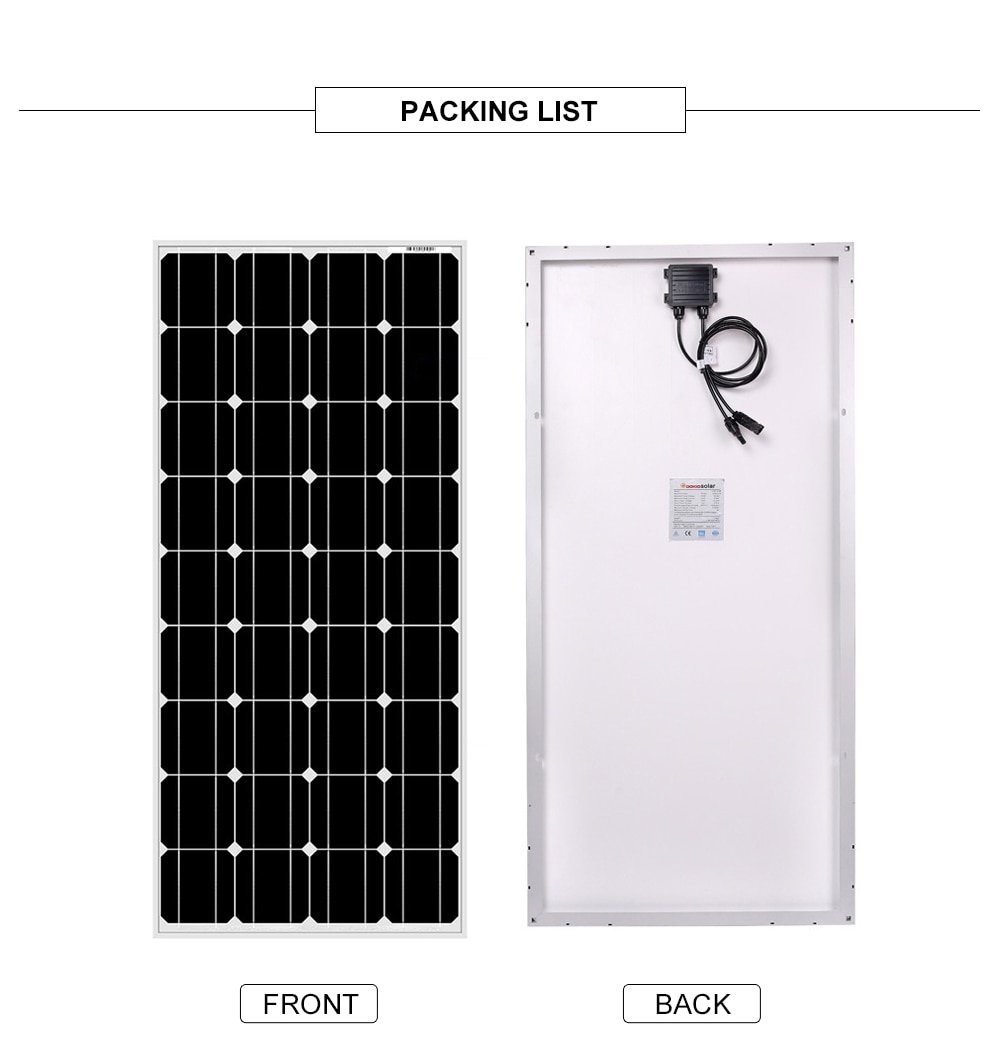

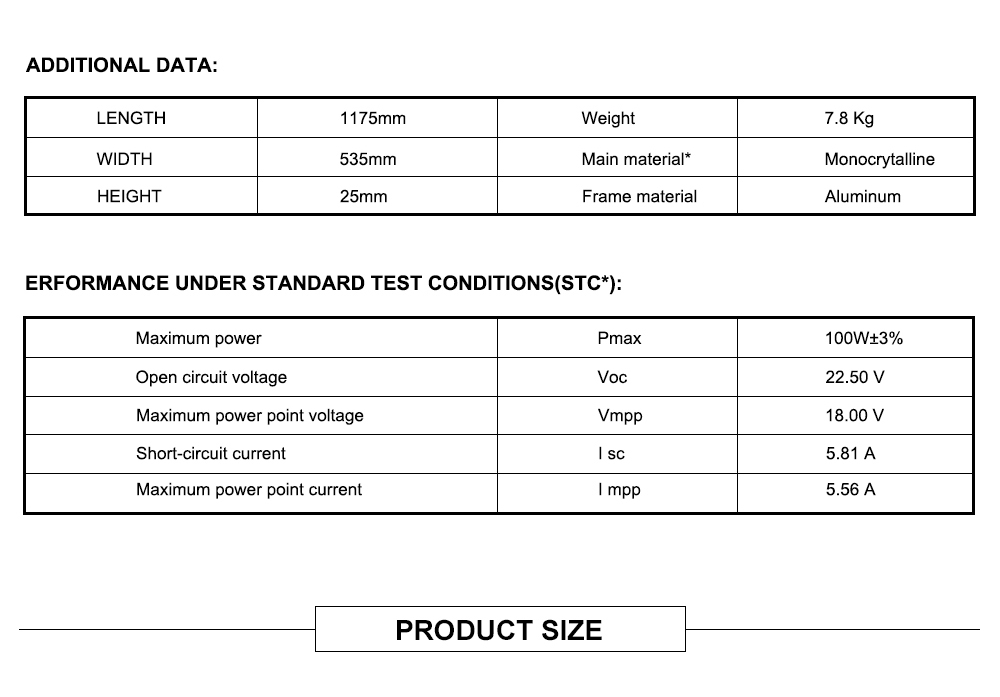

1. 100W Rigid Solar Panel

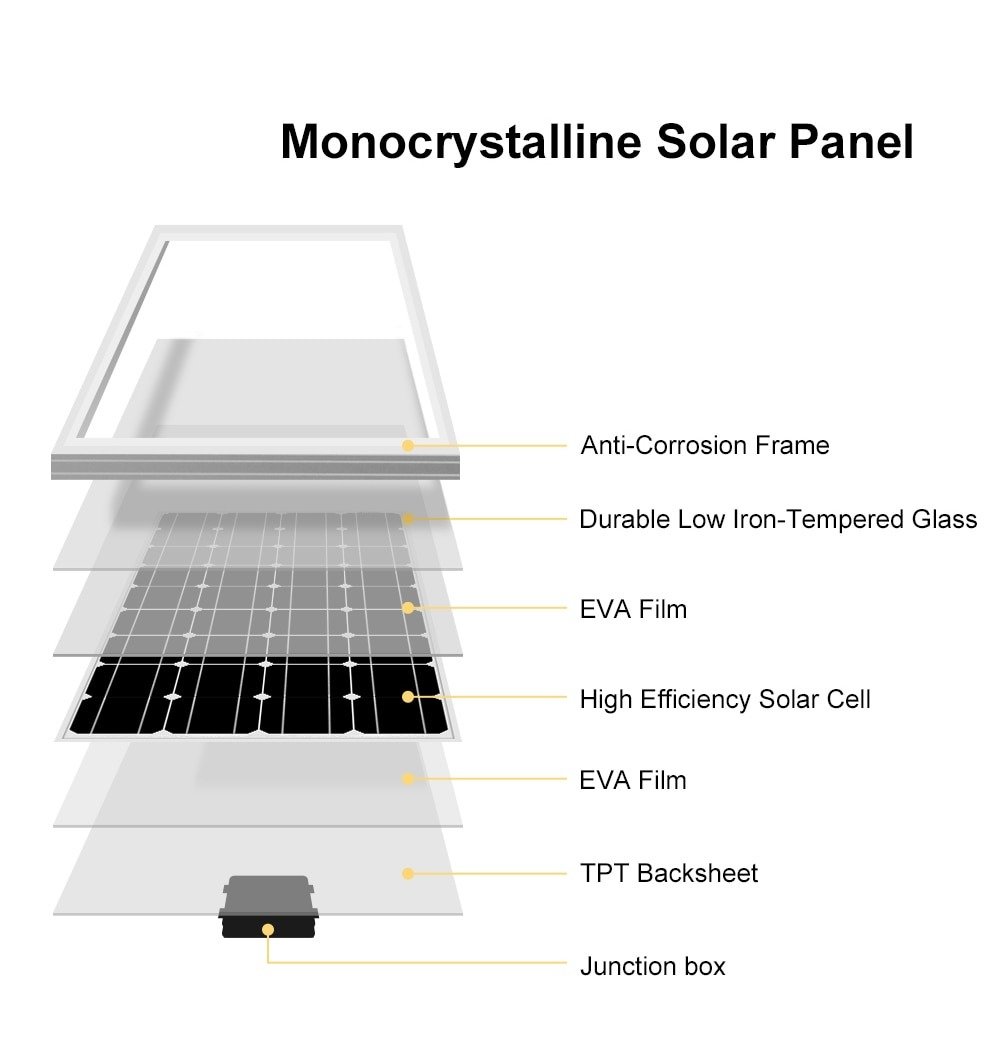

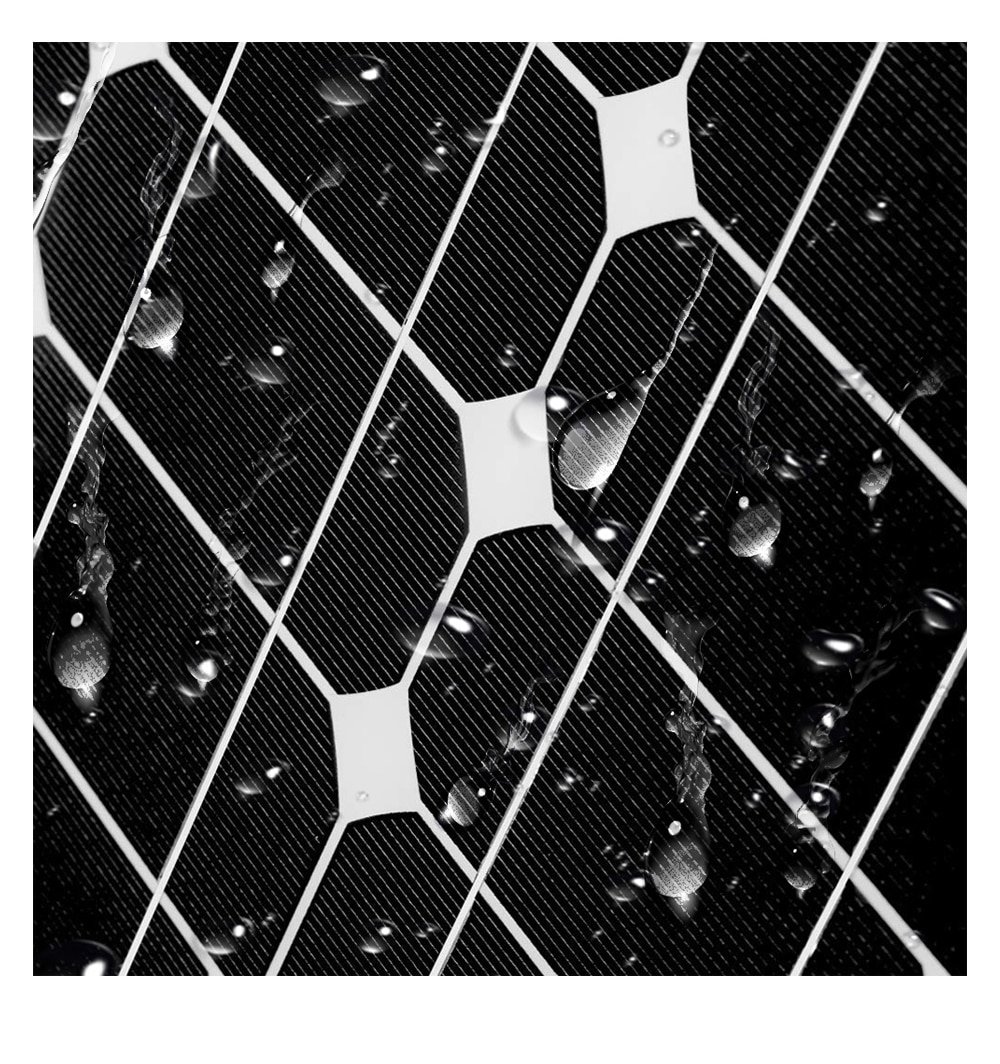

• Material: Monocrystalline silicon
• Maximum Power (Pmax): 100W±3%
• Maximum Power Voltage (Vmp): 18.00V
• Maximum Power Current (Imp): 5.56A
• Open-Circuit Voltage (Voc): 22.50V
• Short-Circuit Current (Isc): 5.81A
• Nominal Operating Cell Temp.(NOCT): -45 to 80℃
• Maximum System Voltage: DC1000V
• Maximum Series Fuse: 15A
• Net Weight: 7.8kg

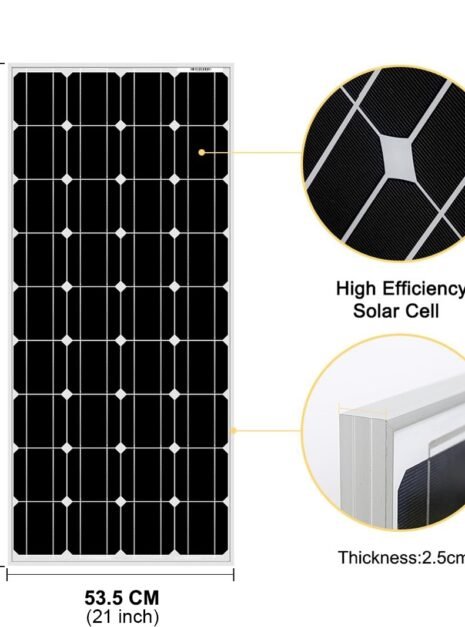

• Dimension: 1175x535x25mm
• Package Weight: 8kg
• Package Dimension: 1200x600x50mm
• NOTE: This model has no controller

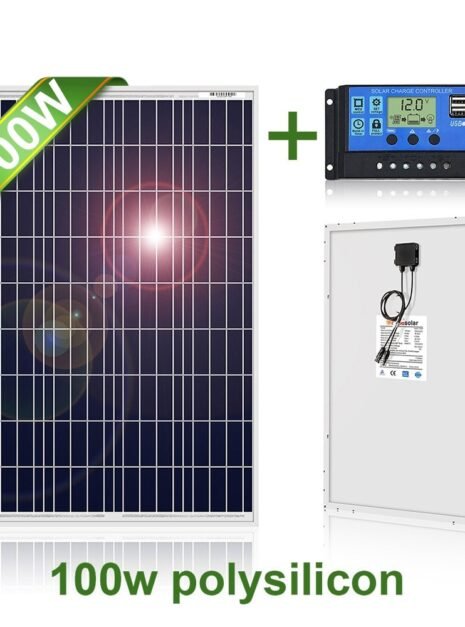

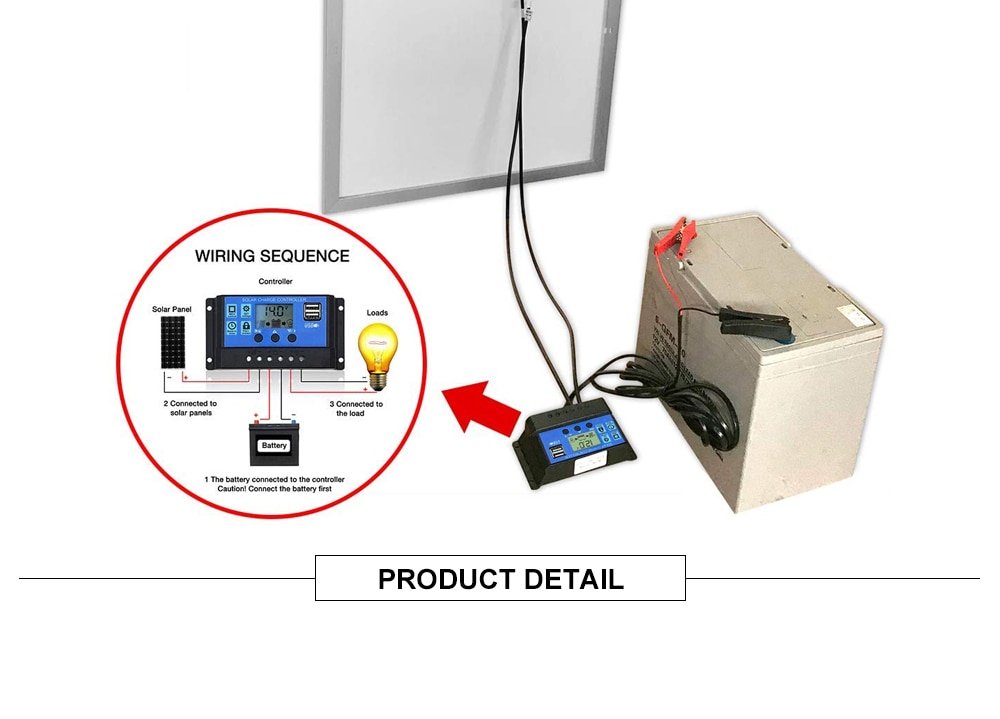

2. 100W Rigid Solar Panel with 10A PWM Controller

• Maximum Power (Pmax): 100W
• Maximum Power Voltage (Vmp): 18.00V
• Maximum Power Current (Imp): 5.56A
• Open-Circuit Voltage (Voc): 22.50V
• Short-Circuit Current (Isc): 5.81A
• Nominal Operating Cell Temp.(NOCT): -45 to 80℃
• Maximum System Voltage: DC1000V
• Maximum Series Fuse: 9A
• Net Weight:: 7.0kg

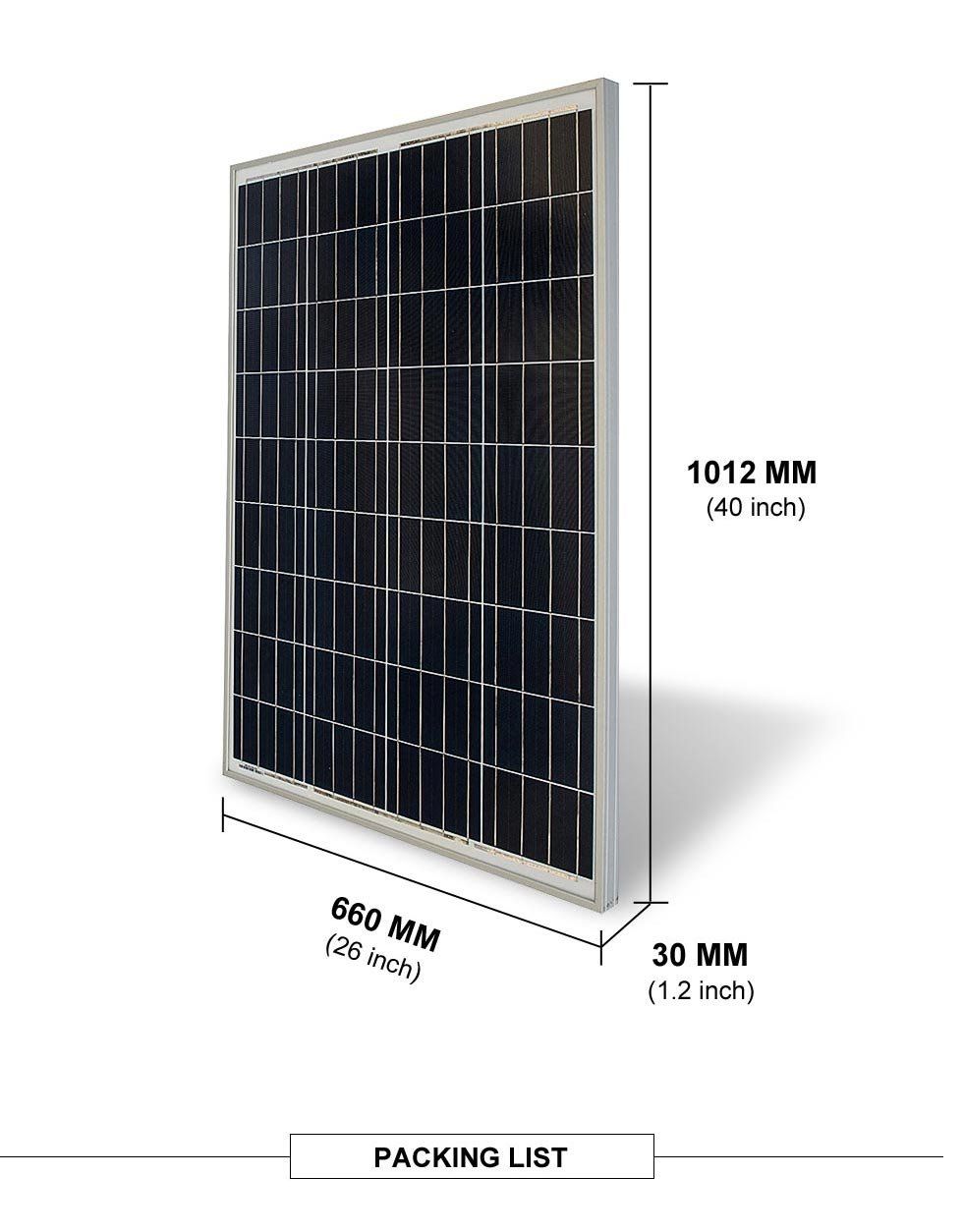

• Dimensions: 1000x660x25mm

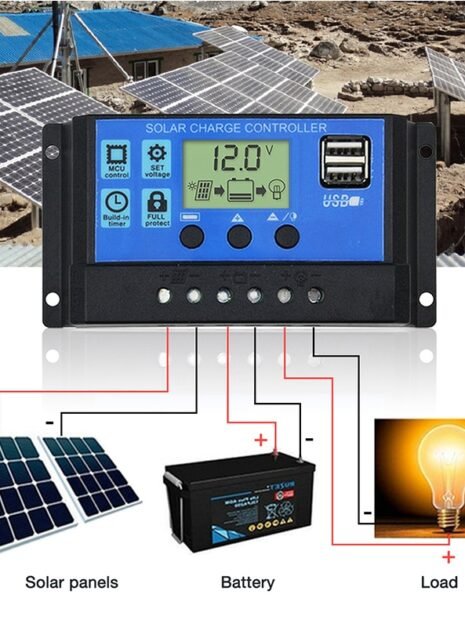

• NOTE: This model has a 10A PWM controller

Please note: For field connections, use minimun No.12AWG copper wires insulated for a minimum 90℃.
