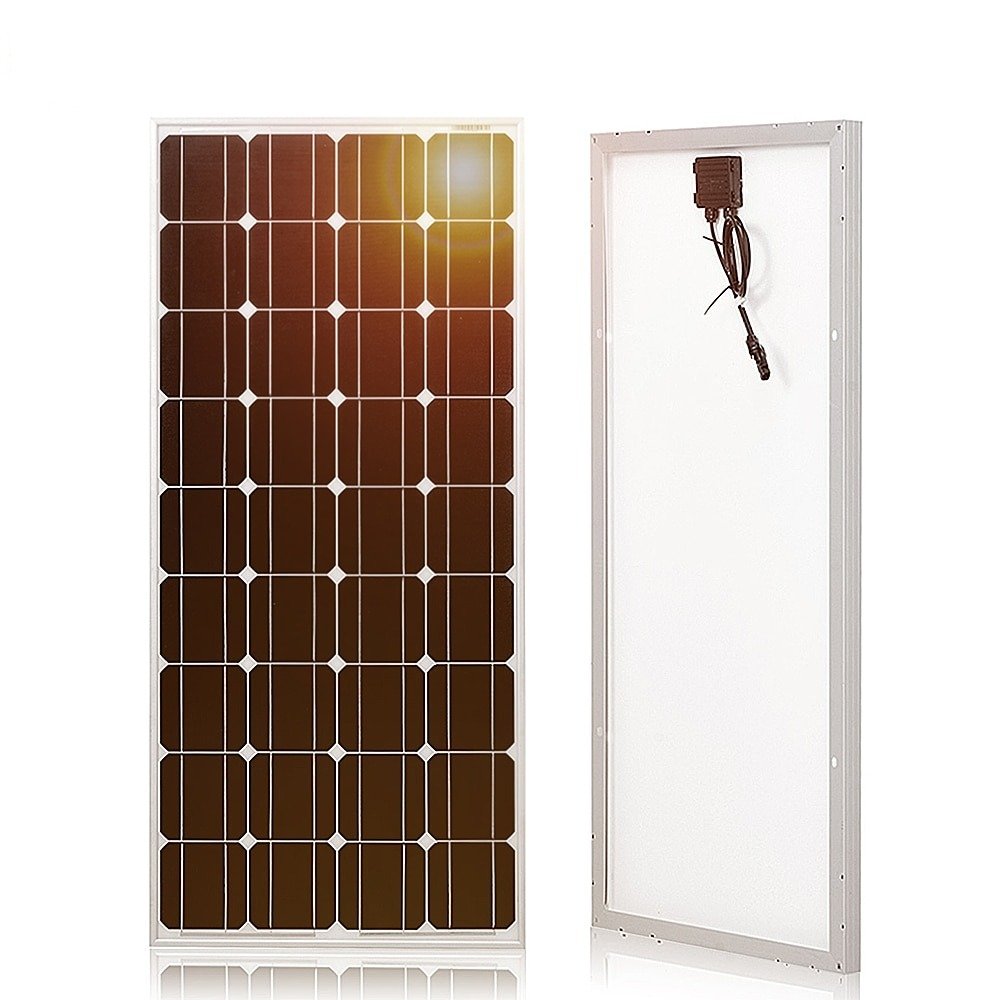

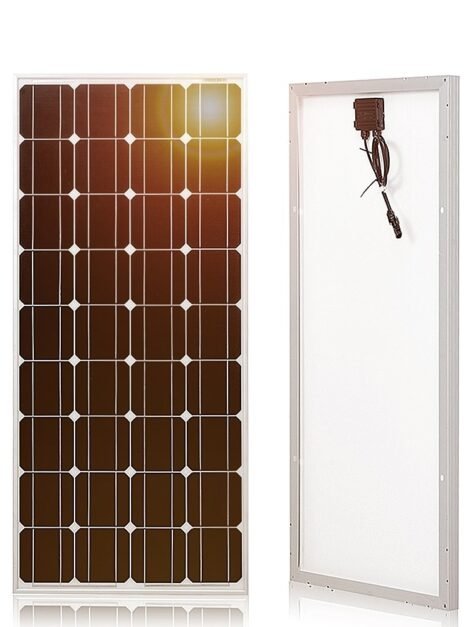

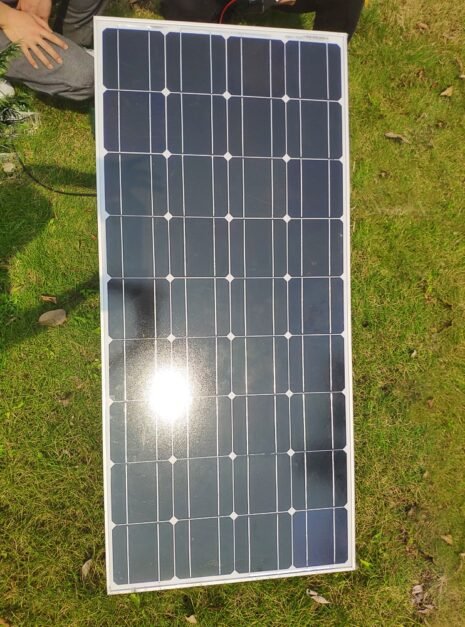

100W Rigid Monocrystalline Silicon Waterproof Solar Panel 18V

Description

100W Rigid Monocrystalline Silicon Waterproof Solar Panel 18V

• A simple, easy-to-install, excellent value-for-money solution for alternative energy production
• Makes you energy independent.
• Installation possible virtually anywhere
• Sets you free from rising electricity charges
• An easy alternative for the rural areas
• Environment friendly
• Adds to the betterment of the planet

Advantages:

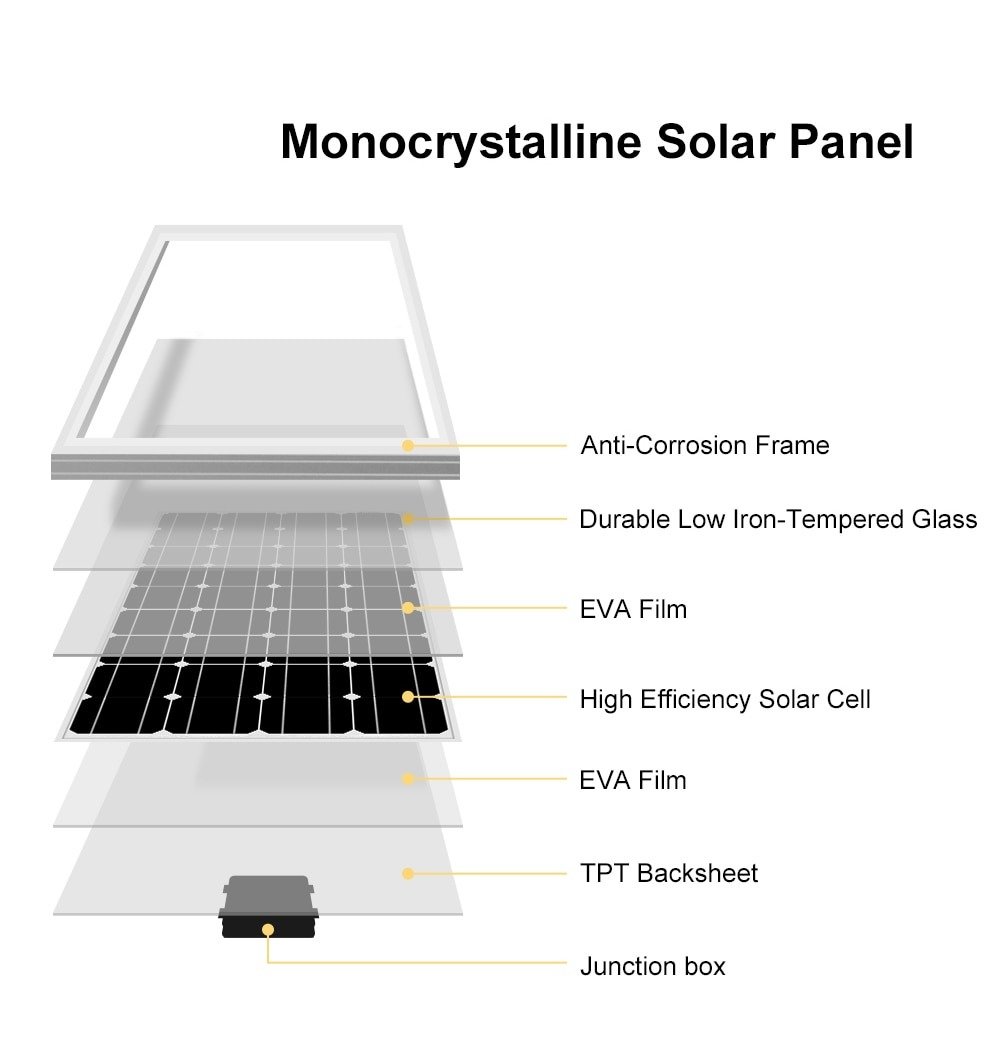

• Multi-layer sheet package, sturdy and durable, good heat dissipation. No hot spots will appear.
• The aluminum frame is corrosion resistant and is suitable for both indoor and outdoor use.
• With a service life of more than 25 years, it is 3-4 times that of ordinary flexible solar panels.

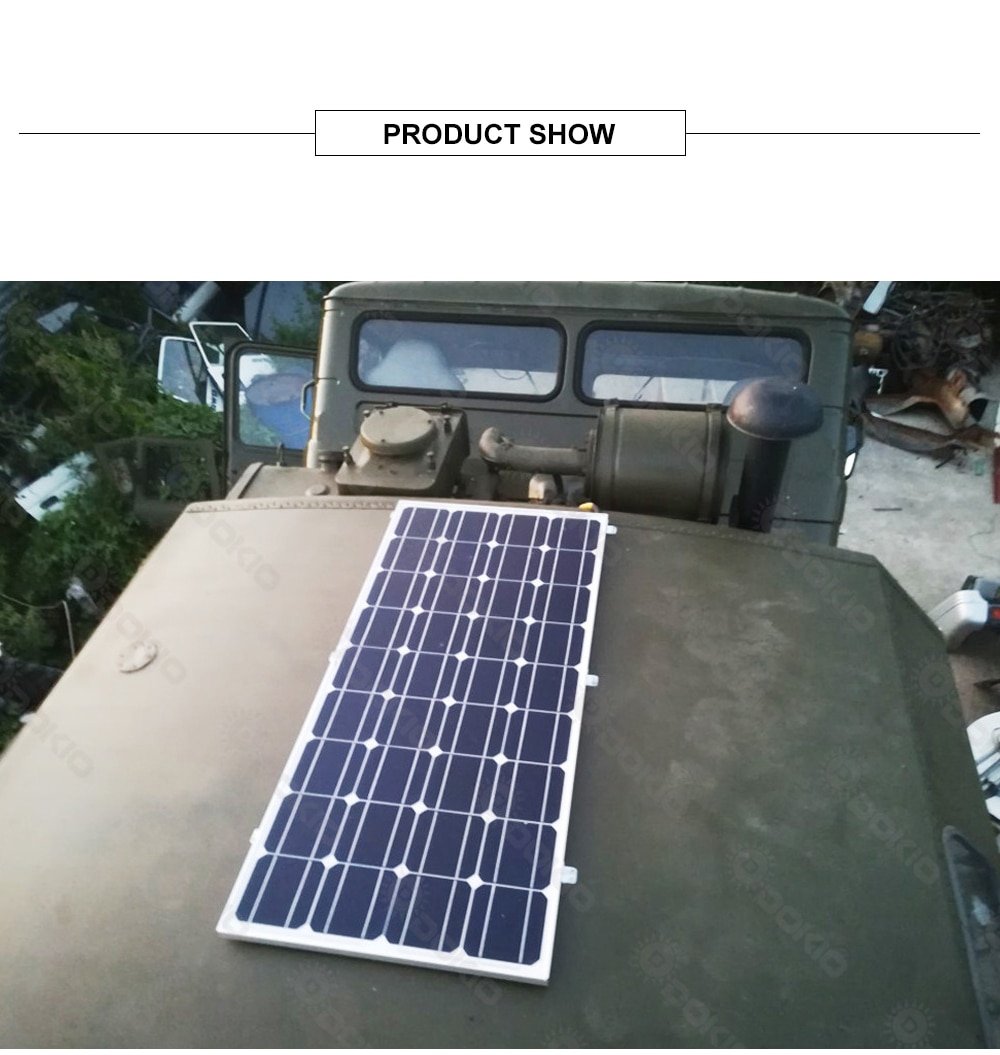

• It is the best choice for motorhomes and families.
• It has a very high cost performance and is the best choice for home energy investment.

Product Description:

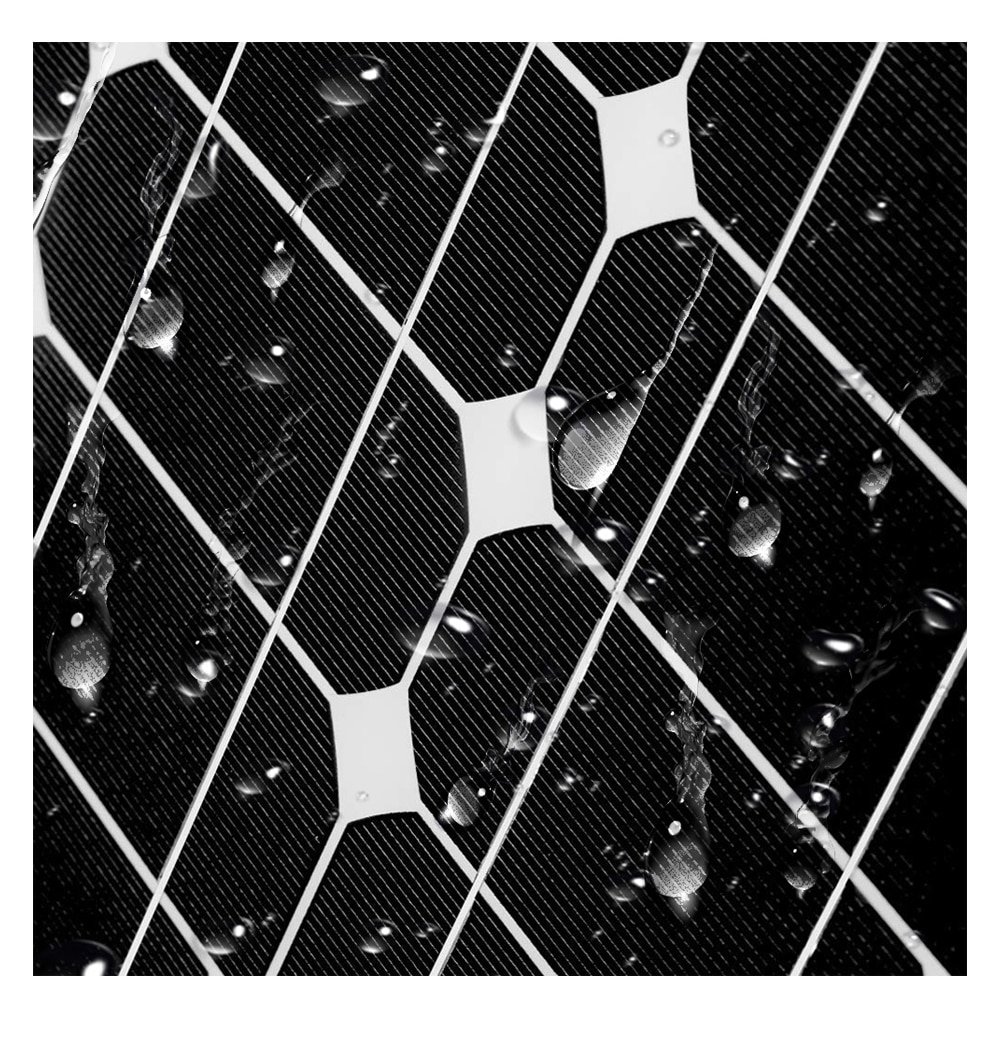

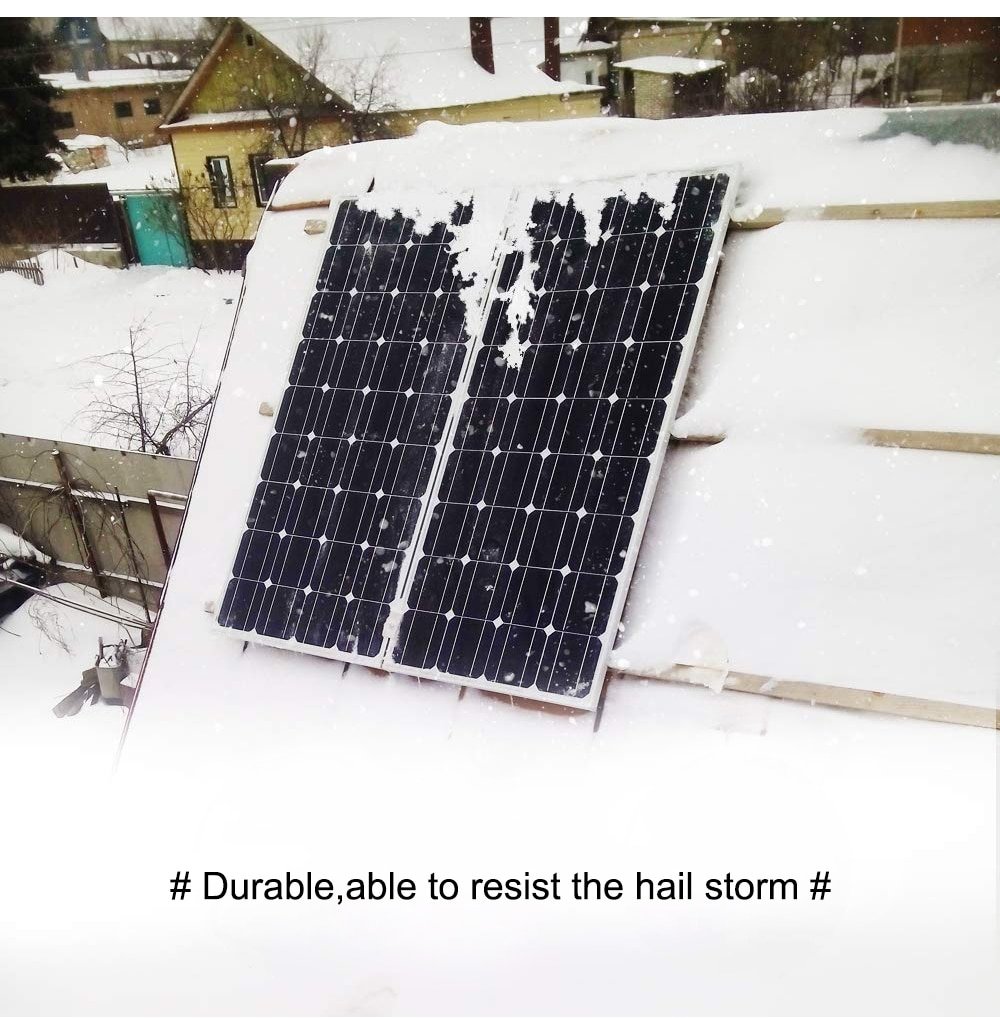

• The surface is tempered glass, waterproof, snowproof, resistant to small hail.

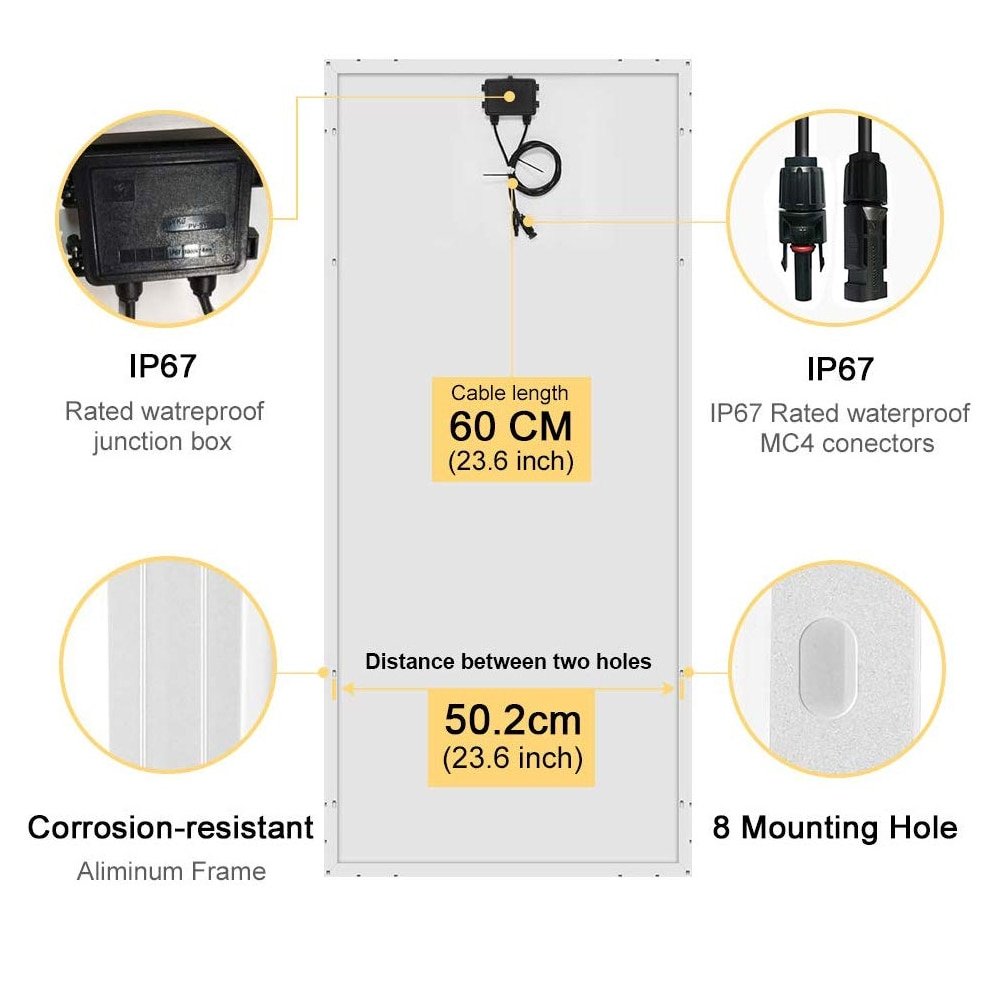

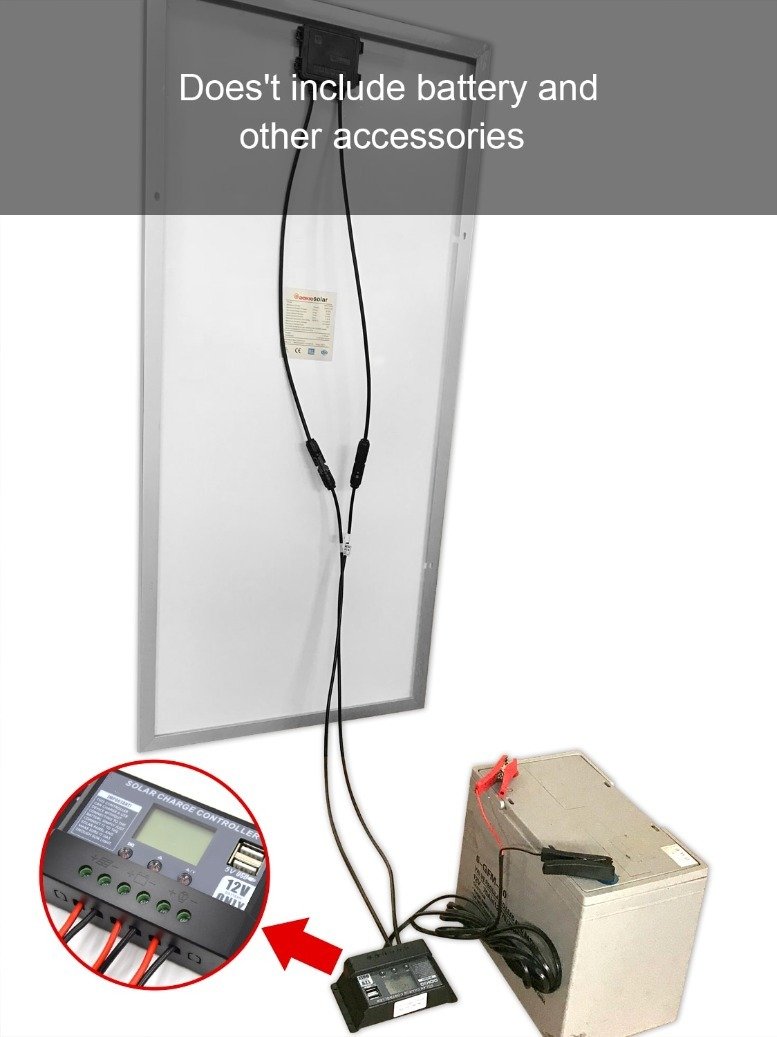

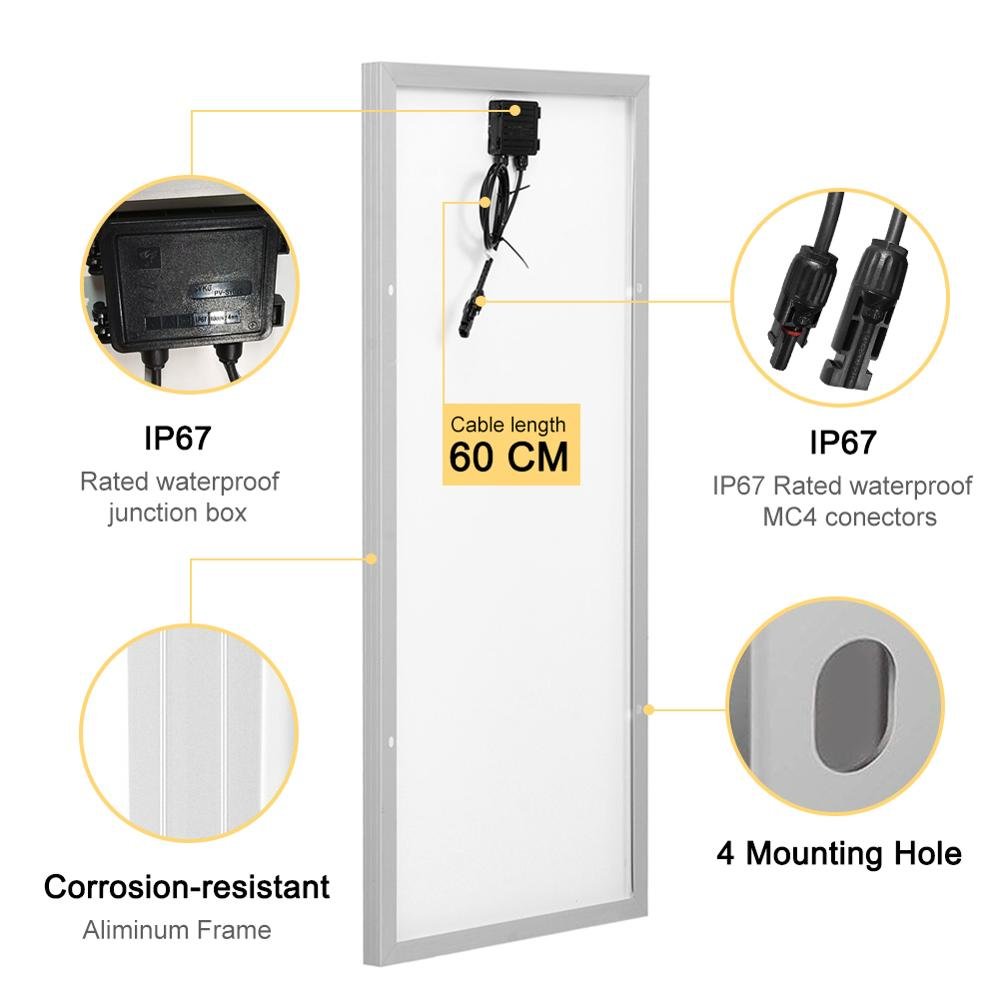

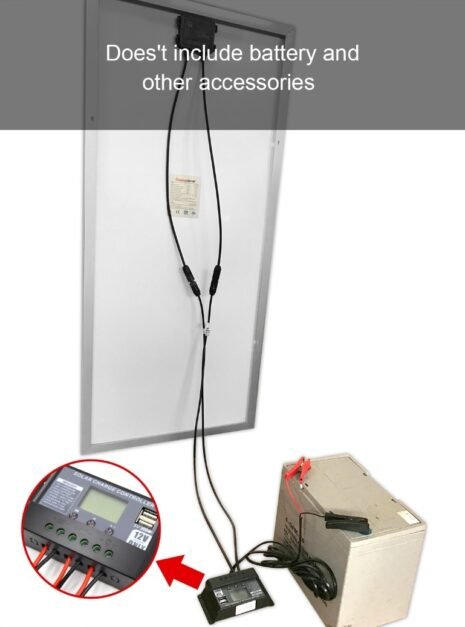

• Diodes are pre-installed in junction box and a pair of 24-inches cables with MC4 connectors comes with the panel automatically
• The back has 4 drill hole that can be quickly installed.
• Material: Monocrystalline silicon

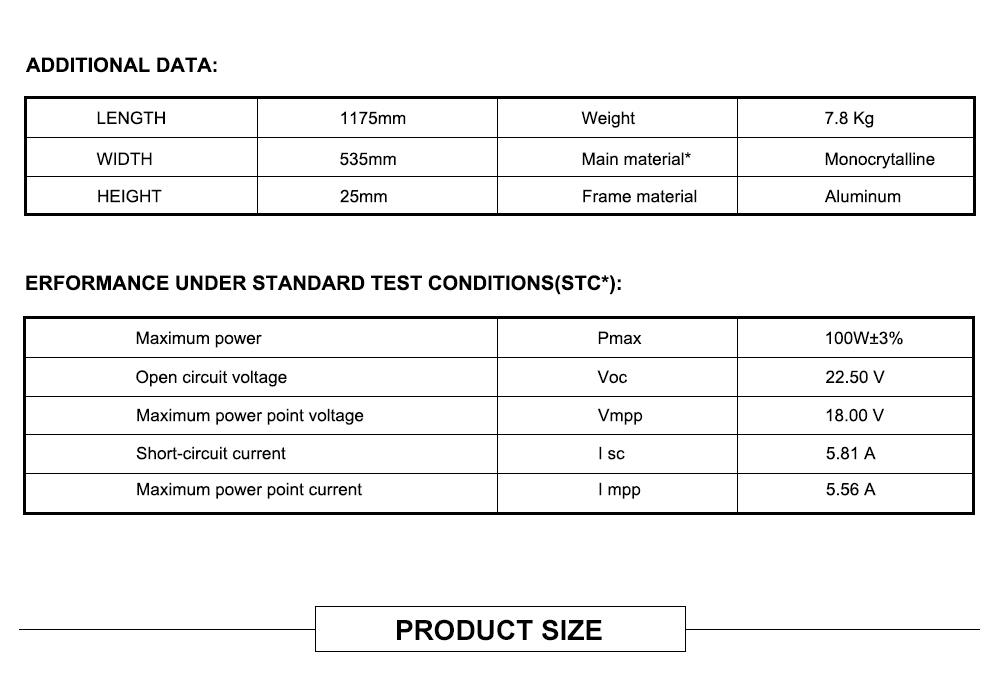

• Maximum Power (Pmax): 100W±3%
• Maximum Power Voltage (Vmp): 18.00V
• Maximum Power Current (Imp): 5.56A
• Open-Circuit Voltage (Voc): 22.50V
• Short-Circuit Current (Isc):5.81A
• Nominal Operating Cell Temp.(NOCT): -45 to 80℃
• Maximum System Voltage: DC1000V
• Maximum Series Fuse:15A

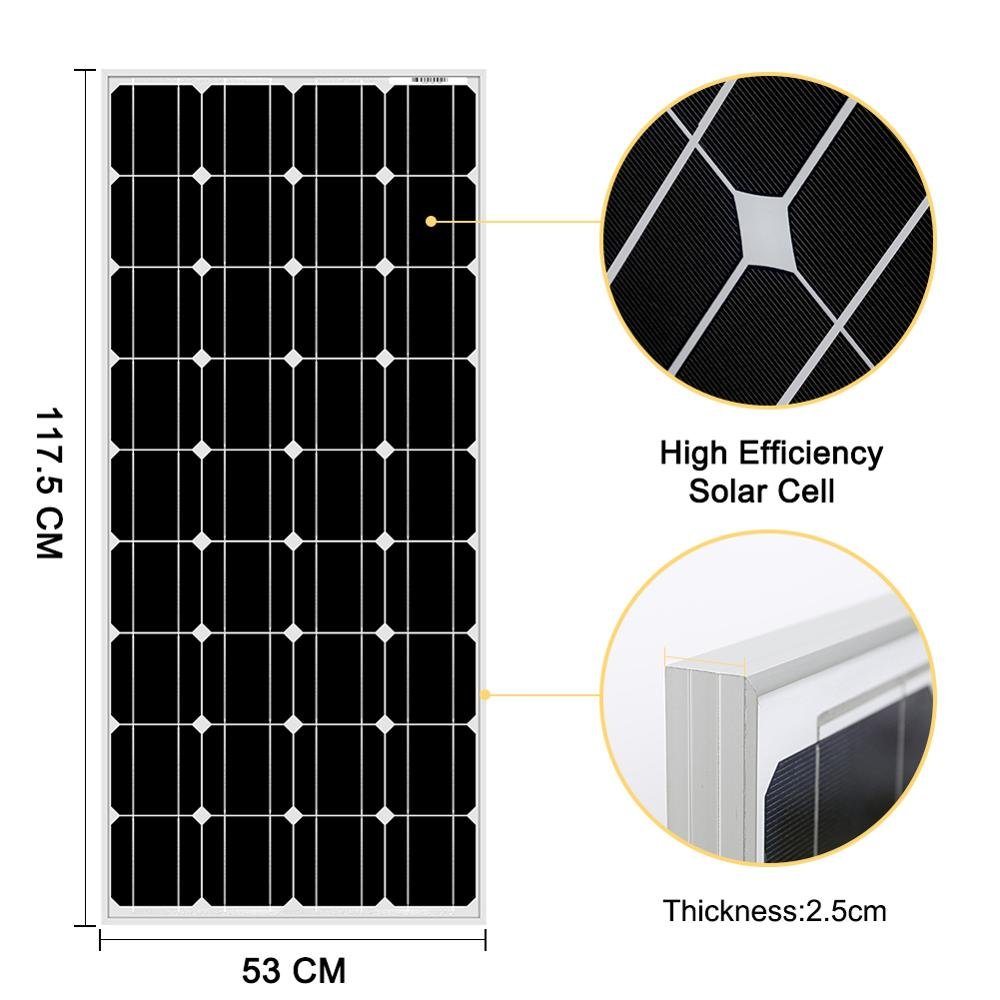

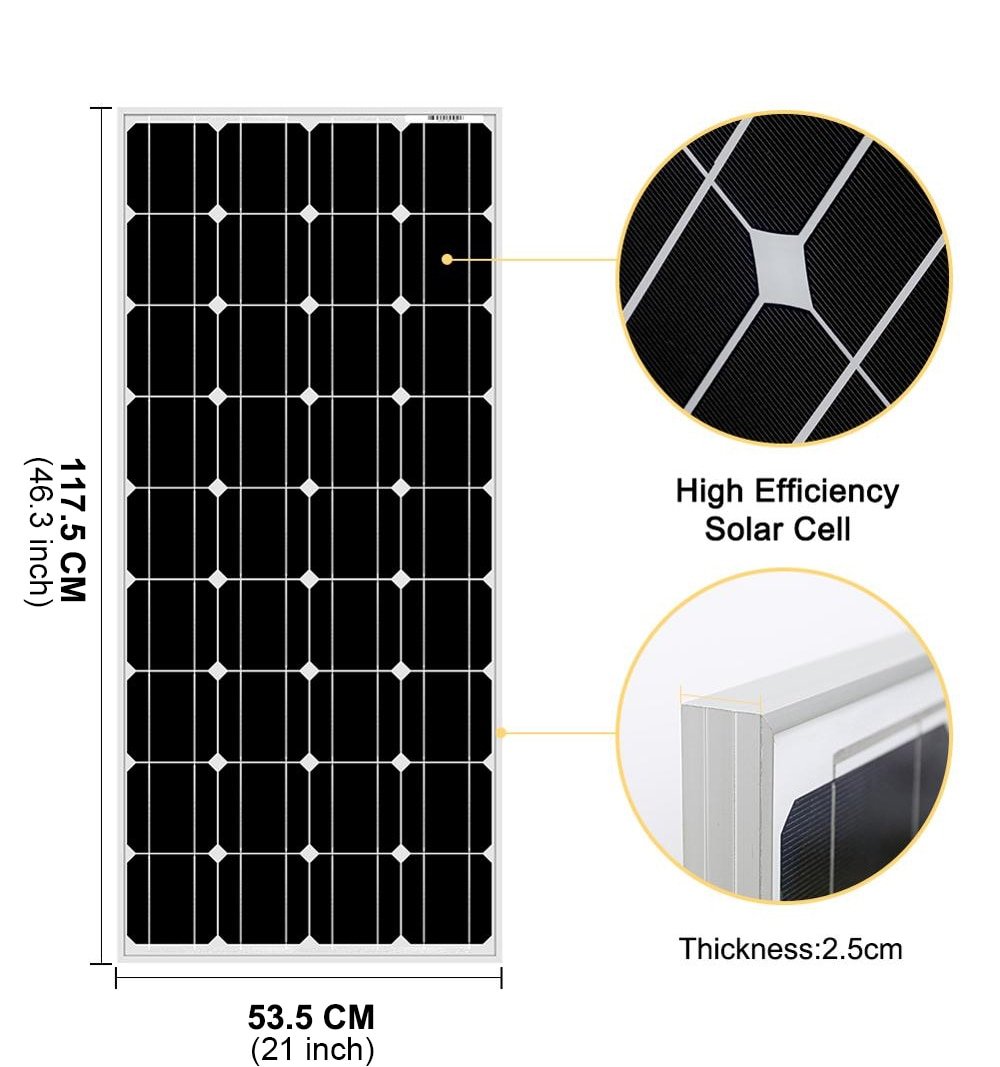

• Dimension: 1175x535x25mm
• Package Weight: 7.5kg
• Package Dimension: 1200x600x50mm

Note: For field connections, use minimun No.12AWG copper wires insulated for a minimum 90℃
