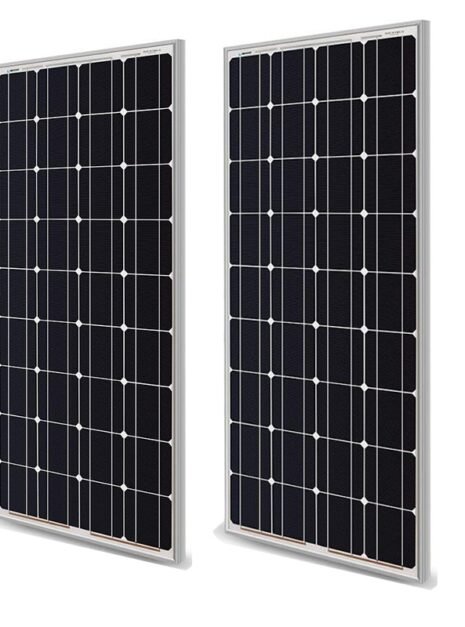

Rigid Solid Temper Glass Solar Panel

Description

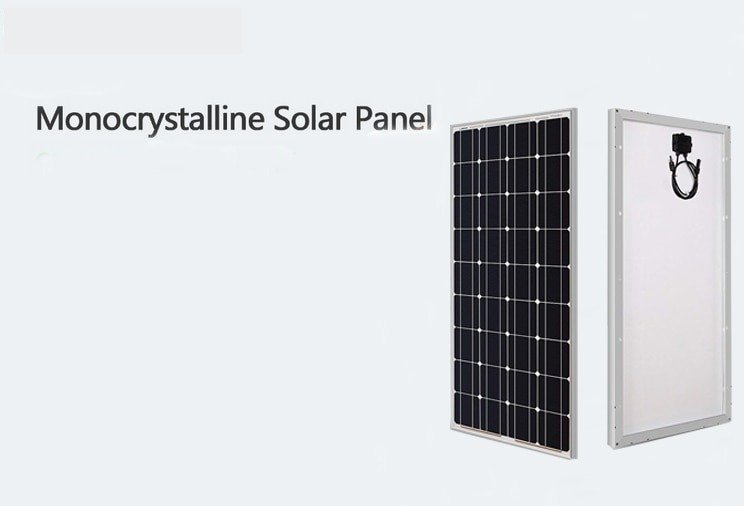

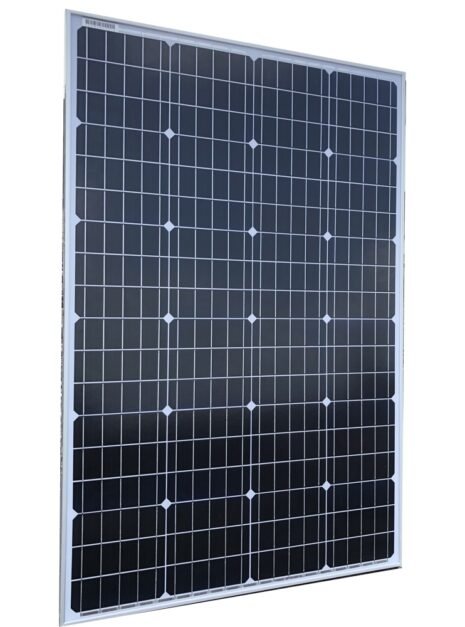

Rigid Solid Temper Glass Solar Panel – 100W, 140W, 200W, 280W Monocrystalline Solar Cells

Advantages:

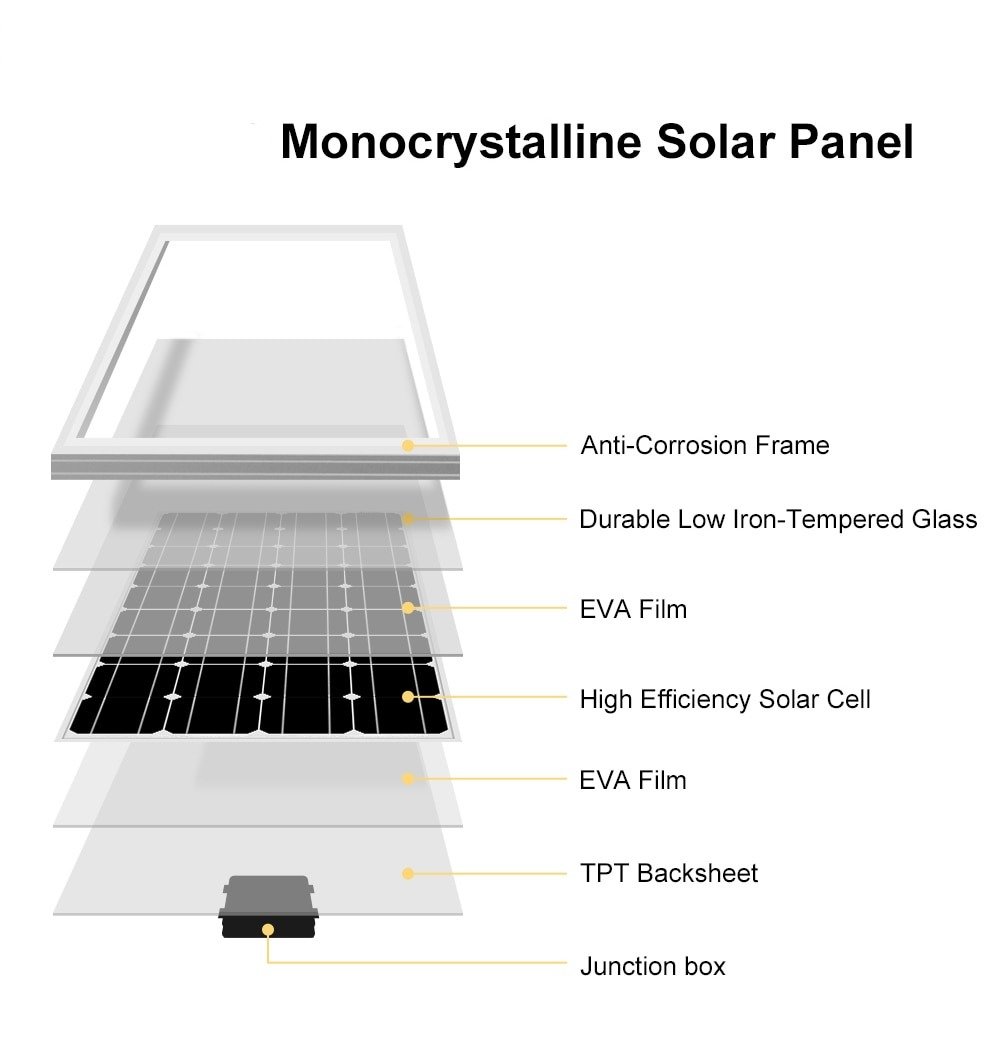

• Multi-layer sheet package, sturdy and durable, good heat dissipation. No hot spots will appear.

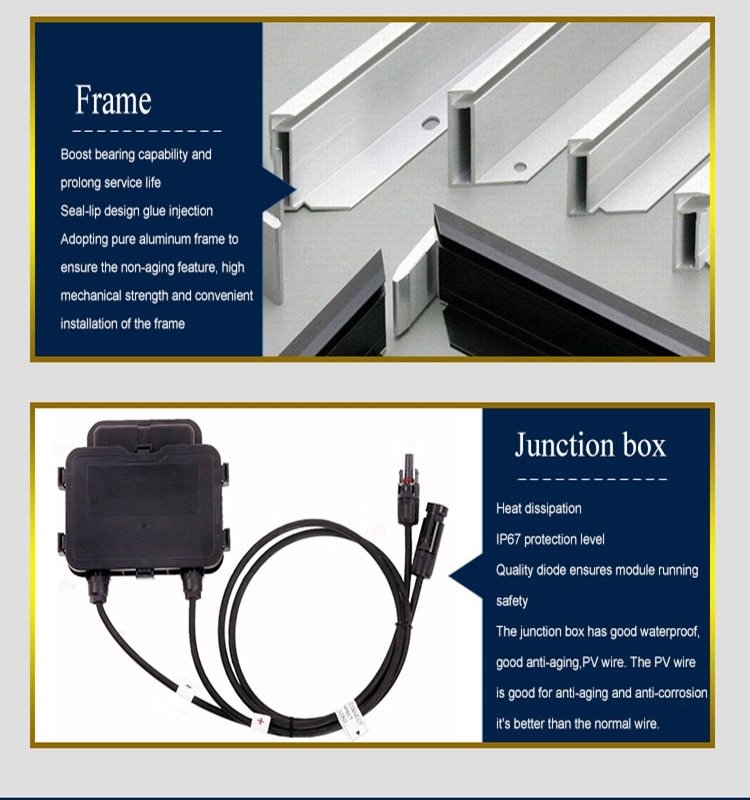

• The aluminum frame is corrosion resistant and is suitable for both indoor and outdoor use.
• With a service life of more than 25 years, it is 3-4 times that of ordinary flexible solar panels. It is the best choice for motorhomes and families. It has a very high cost performance and is the best choice for home energy investment.

Product description:

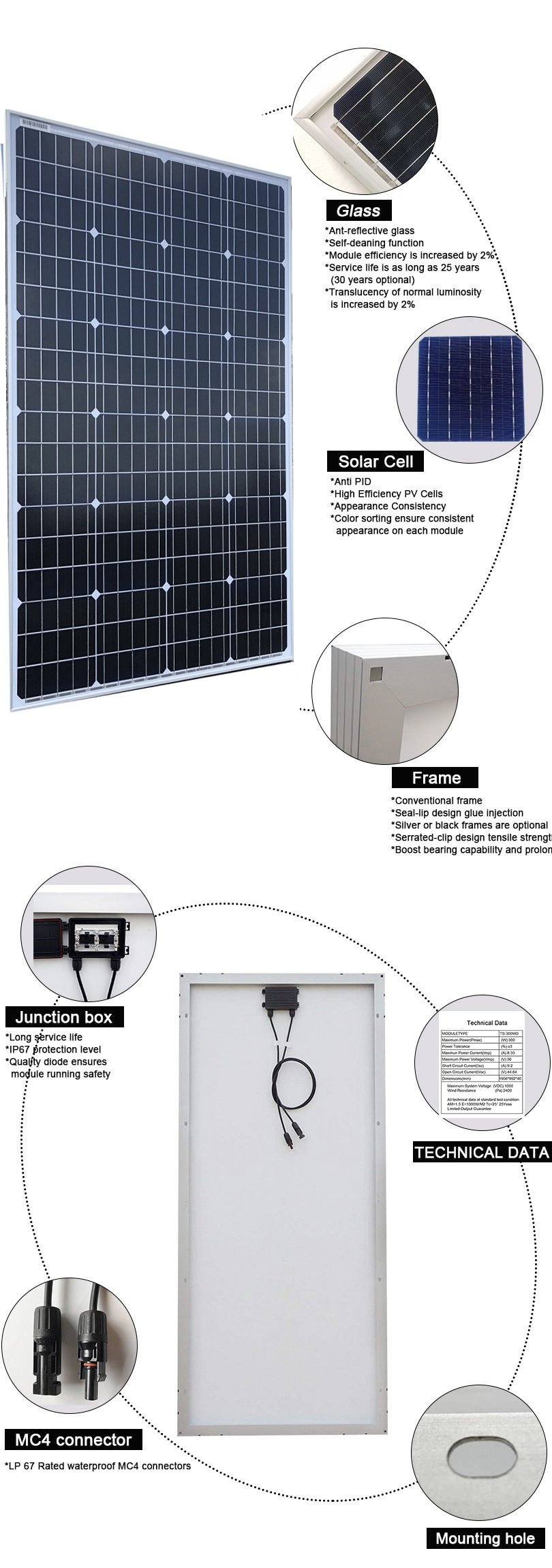

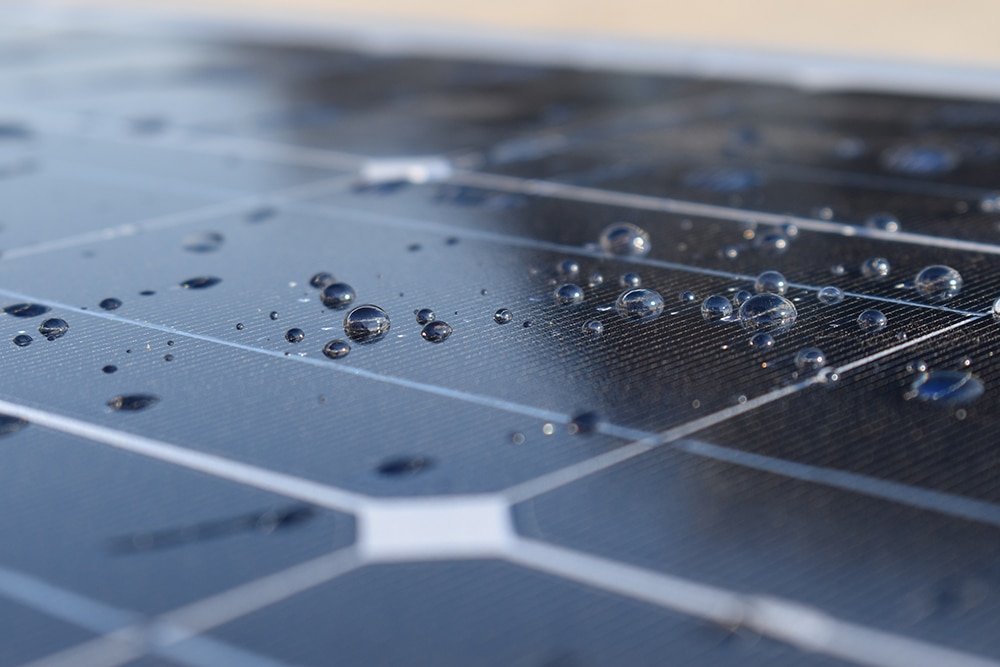

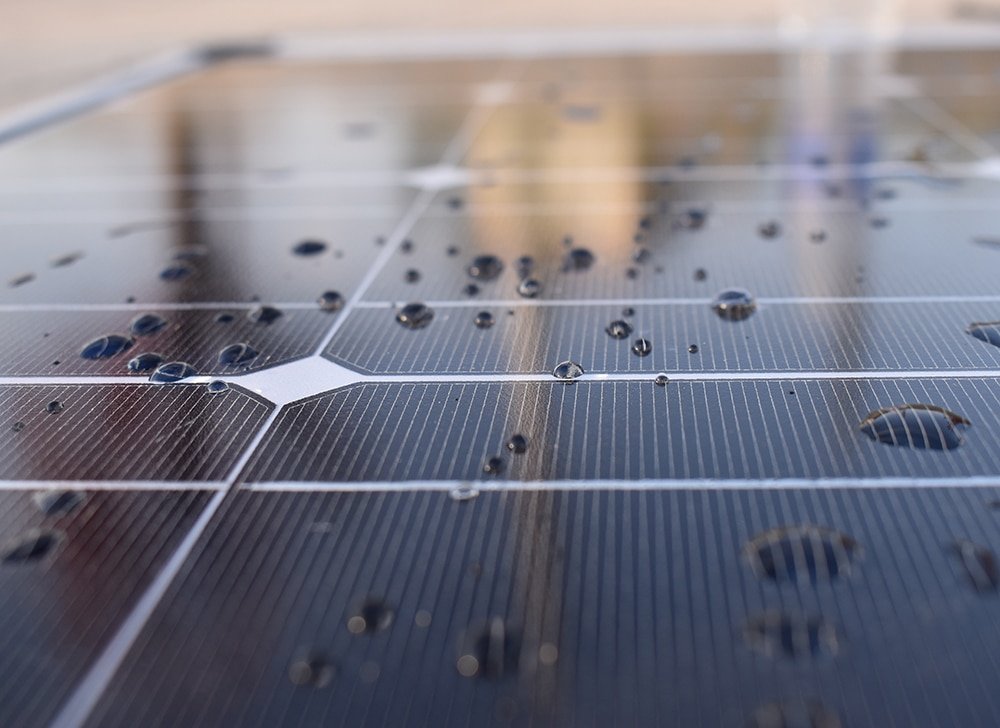

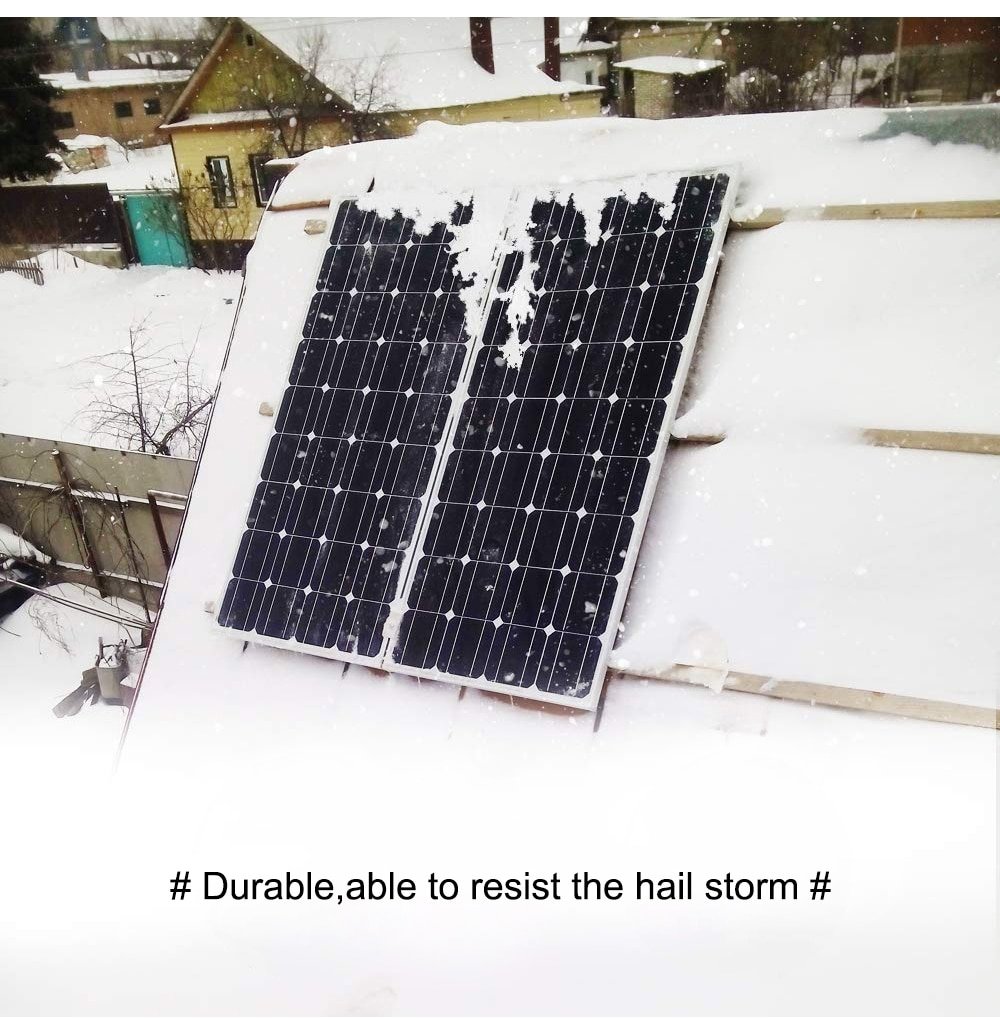

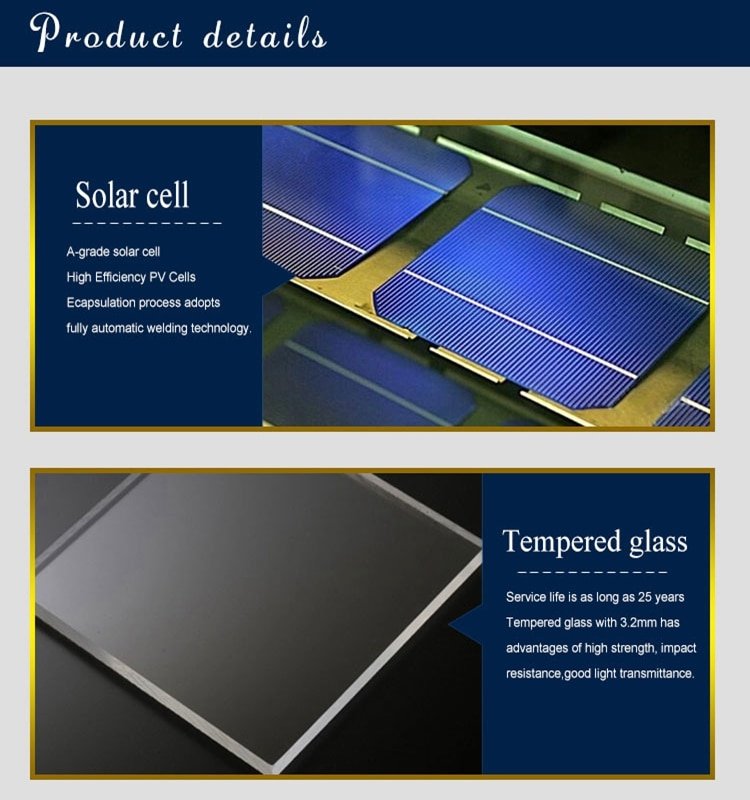

• The surface is tempered glass, waterproof, snowproof, resistant to small hail.

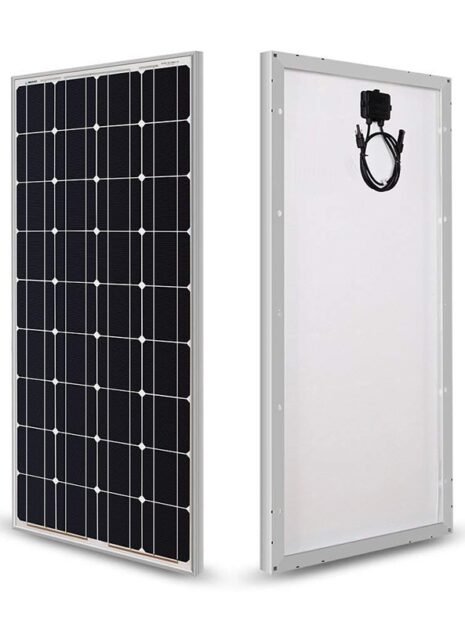

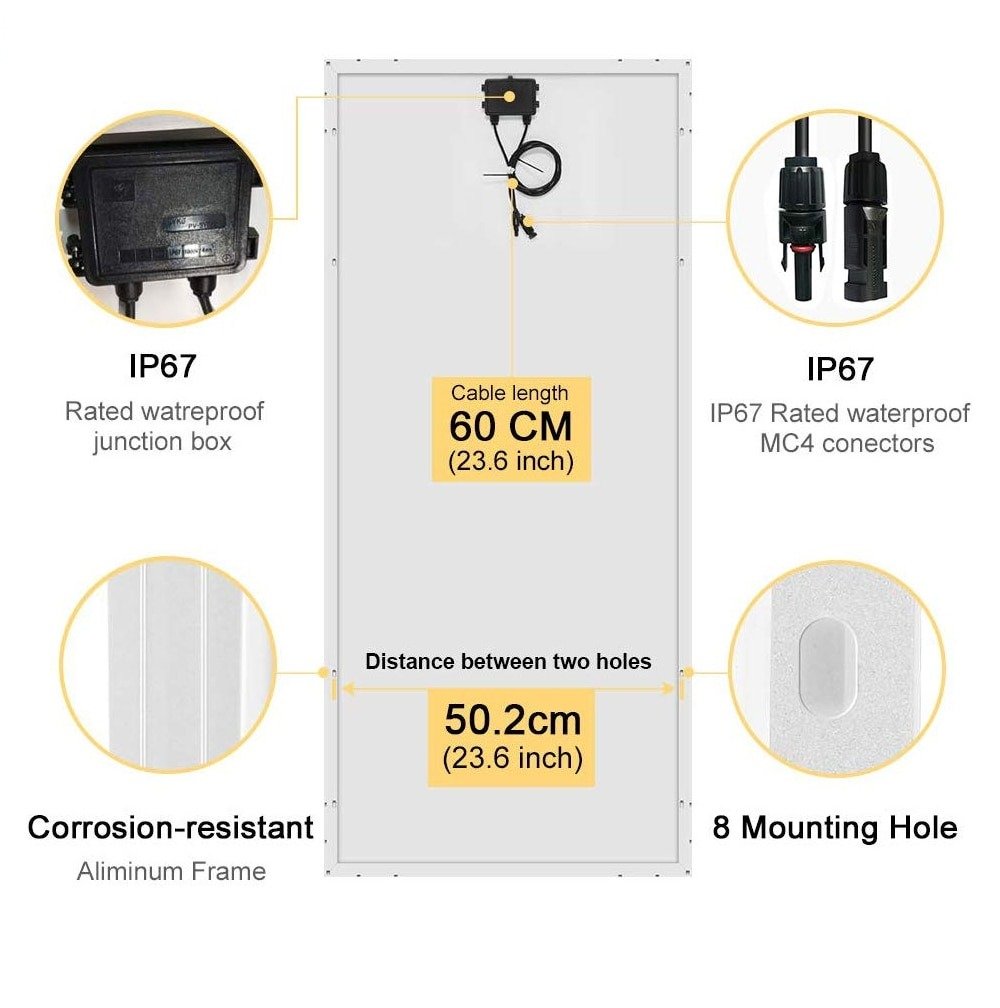

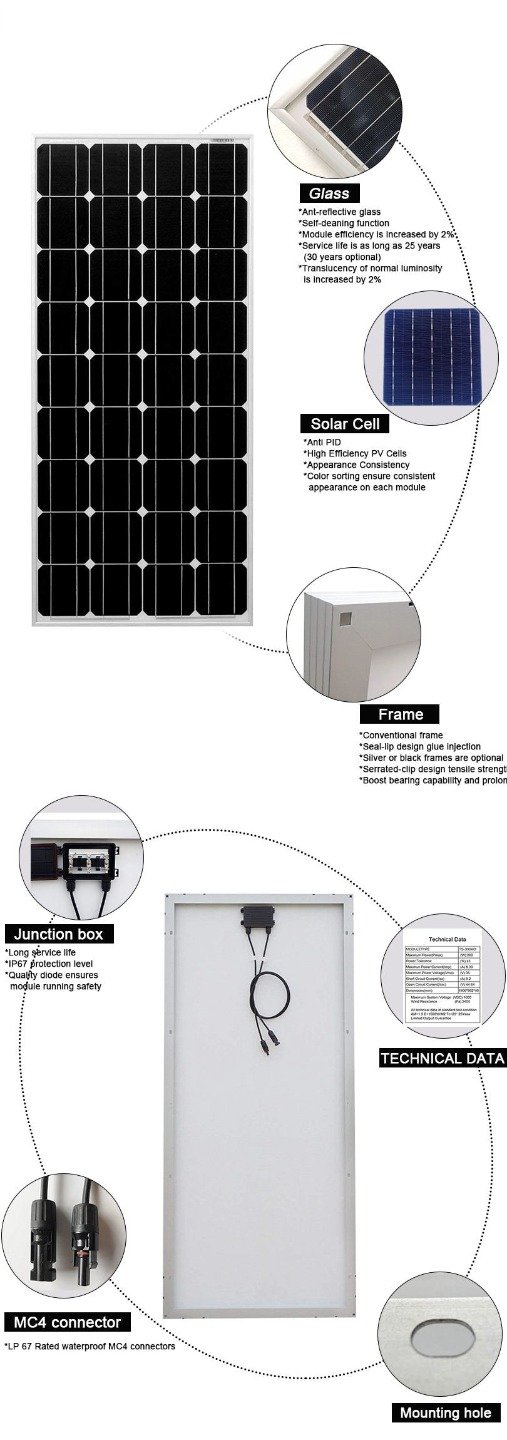

• Diodes are pre-installed in junction box and a pair of 24-inches cables with MC4 connectors comes with the panel automatically
• The back has 4 drill hole that can be quickly installed.

• Material: Monocrystalline silicon
• Maximum Power(Pmax): 100W±3%
• Maximum Power Voltage(Vmp): 18.90V
• Maximum Power Current (Imp): 5.30A
• Open-Circuit Voltage (Voc): 22.7V
• Short-Circuit Current (Isc): 5.69A
• Nominal Operating Cell Temp.(NOCT): -45 to 80℃
• Maximum System Voltage: DC1000V
• Maximum Series: Fuse:10A

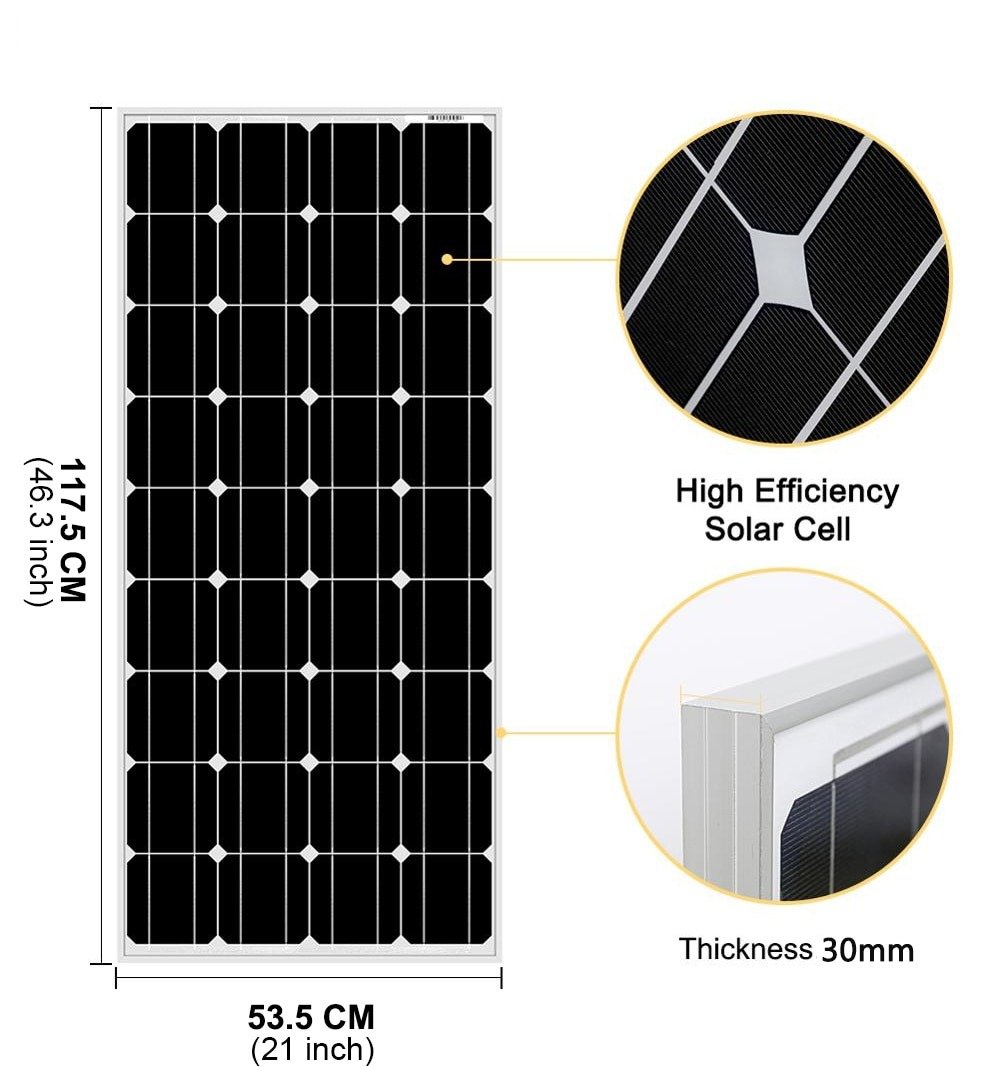

• Dimension: 1164X550X30mm
• Package Weight: 7.5kg
• Package Dimension: 1190X570X60mm
  (The above data is based on the laboratory standard test environment)

Please Note: For field connections, use minimun No.12AWG copper wires insulated for a minimum 90℃.
